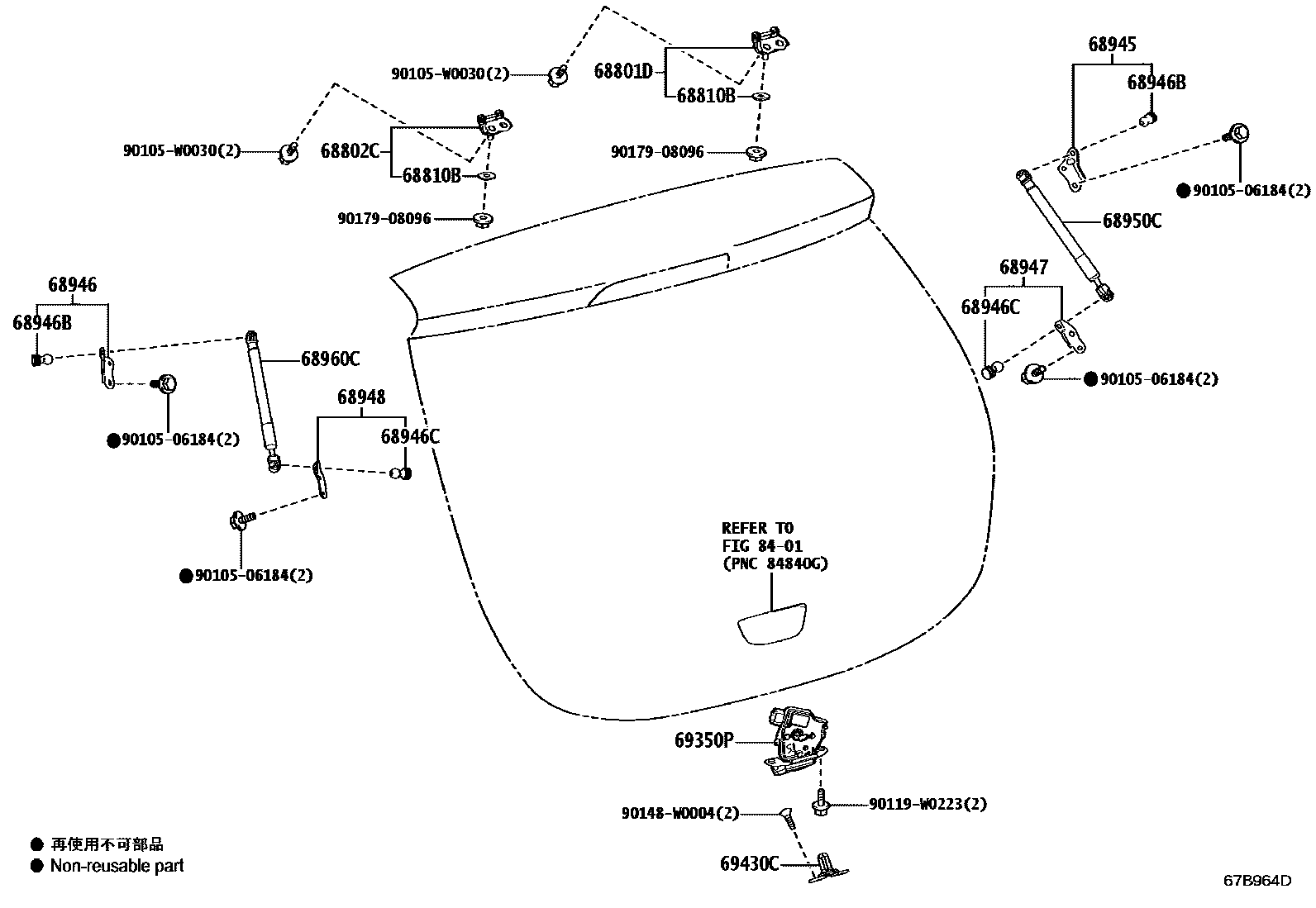

Toyota AYGO X — BACK DOOR LOCK & HANDLE

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-0H110iKGB70..LHD..R202203-202401

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-0H110iKGB70..LHD..R202203-202401

68810BPAD, BACK DOOR HINGE

main68838-0H030iKGB70..LHD..R202203-202401

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0H030iKGB70..LHD..R202203-202408

main68945-0H031iKGB70..G,K,N202409

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0H030iKGB70..LHD..R202203-202408

main68946-0H031iKGB70..G,K,N202409

68946BJOINT, BACK DOOR STAY, UPR

main68961-32030iKGB70..LHD..R¥210202203-202401

68946CJOINT, BACK DOOR STAY, LWR

main68961-32030iKGB70..LHD..R¥210202203-202401

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0H030iKGB70..LHD..R202203-202401

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0H030iKGB70..LHD..R202203-202401

68950CSTAY ASSY, BACK DOOR, RH

main68950-0H050iKGB70..LHD..R202203-202401

68960CSTAY SET, BACK DOOR, LH

main68960-0H010iKGB70..LHD..R202203-202401

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-02090iKGB70..LHD..R¥8,800202203-202401

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-02030iKGB70..LHD..R¥700202203-202401

8401

9010506184

main90105-06184¥70

90105W0030

main90105-W0030

90119W0223

main90119-W0223

90148W0004

main90148-W0004¥60

9017908096

main90179-08096¥110

19 parts on this diagram · 1 diagram in section
