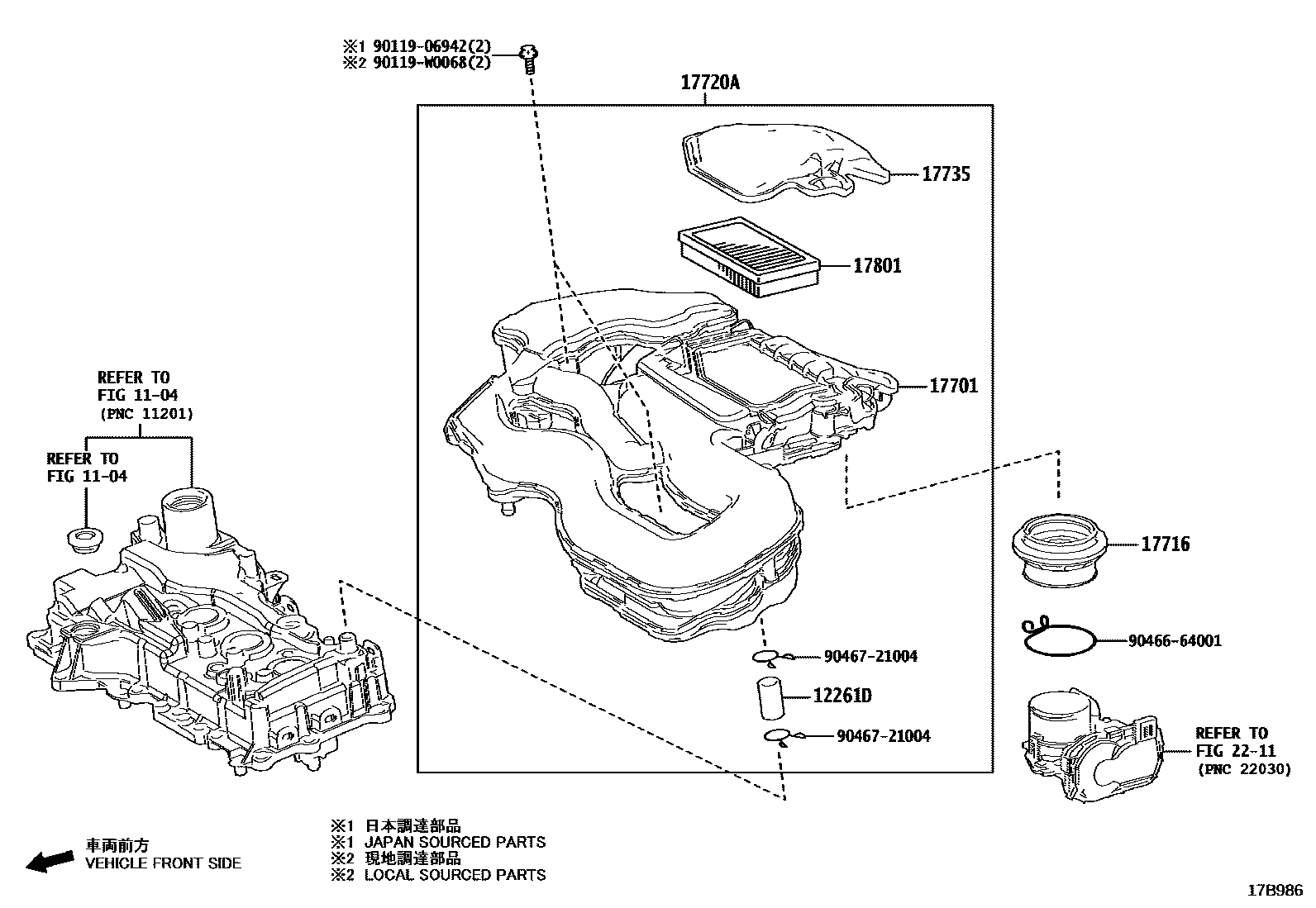

Toyota AYGO X — AIR CLEANER

1104

12261DHOSE, VENTILATION

main12262-40050i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)202203-202401

17701CASE SUB-ASSY, AIR CLEANER

main17711-0Q011i1KRFE..KGB70..LHD..R202203-202401

17716SUPPORT,AIR CLEANER CAP

main17716-0Q030i1KRFE..KGB70..LHD..R202203-202401

17720ACLEANER ASSY, AIR W/DUCT

main17720-0Q011i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)202203-202401

17735CAP, AIR CLEANER

main17735-0Q010i1KRFE..KGB70..LHD..R202203-202401

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0M040i1KRFE..KGB70..LHD..R202203-202401

(L)

main17801-21060i1KRFE..KGB70..LHD..R¥2,600202203-202401

(J)

2211

9011906942

main90119-06942¥60

90119W0068

main90119-W0068¥80

9046664001

main90466-64001¥220

9046721004

main90467-21004¥130

12 parts on this diagram · 1 diagram in section
