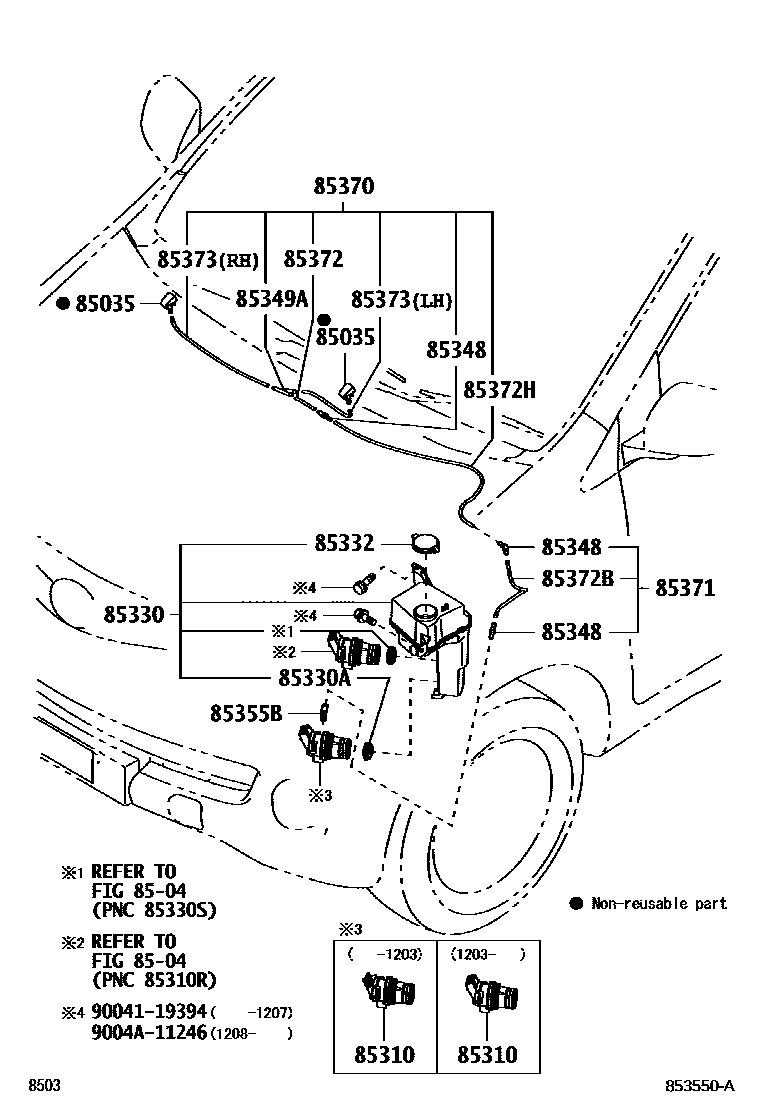

Toyota AVANZA — WINDSHIELD WASHER

0001 1 0002 1 0003 1

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ130iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

ANGLE 0

main85381-BZ130iF65#..IDN201111-201507

ANGLE 0

main85381-BZ220iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85381-BZ220iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main85381-BZ220iF65#..(MID,SPO)..IDN201901-202110

main85381-BZ220iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ060iF65#..IDN¥8,000201203-201507

main85330-BZ060iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥8,000201203-201508

main85330-BZ080iF65#201111-201203

85330JAR ASSY, WINDSHIELD WASHER

main85315-BZ120iF65#..IDN201111-201507

FR & RR WASHER

main85315-BZ120iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH201111-201508

FR & RR WASHER

main85315-BZ130iF652..MXC;F651..LO..PHL;F652..STD..GCC201112-201508

FR WASHER ONLY

main85315-BZ160iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85315-BZ160iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main85315-BZ160iF65#..(MID,SPO)..IDN201901-202110

main85315-BZ160iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥120201111-201508

main85373-97202iF65#..IDN¥120201111-201507

main90044-80454iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥450201507-201901

main90044-80454iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥450201507-201904

main90044-80454iF65#..(MID,SPO)..IDN¥450201901-202110

main90044-80454iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥450201901

85332CAP, WINDSHIELD WASHER JAR

main85332-87401iF65#..IDN¥230201111-201507

main85332-87401iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥230201111-201508

main85332-97202iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥200201507-201901

main85332-97202iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥200201507-201904

main85332-97202iF65#..(MID,SPO)..IDN¥200201901-202110

main85332-97202iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥200201901

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-BZ080iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main85317-BZ080iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85317-BZ080iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main85317-BZ080iF65#..(MID,SPO)..IDN201901-202110

main85349-87201iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥170201111-201508

main85349-87201iF65#..IDN¥170201111-201507

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-B1010iF65#..IDN¥370201111-201507

main85376-B1010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥370201111-201508

85355VALVE, WINDSHIELD WASHER HOSE

main85376-B1010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥370201507-201901

main85376-B1010iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥370201507-201904

main85376-B1010iF65#..(MID,SPO)..IDN¥370201901-202110

main85376-B1010iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥370201901

85355BJOINT, ELBOW NO.2

main85355-87503iF65#..IDN¥330201111-201507

main85355-87503iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥330201111-201508

85370HOSE ASSY, WINDSHIELD WASHER

main85370-BZ190iF65#..IDN201111-201507

main85370-BZ190iF651,652..MA,SA,TH201111-201508

main85370-BZ600iF651,652..LHD201112-201508

main85370-BZ890iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85370-BZ890iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main85370-BZ890iF65#..(MID,SPO)..IDN201901-202110

main85370-BZ890iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85370-BZ590iF65#..IDN201111-201507

H,L=340

main85370-BZ590iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

H,L=340

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85355-87701iF65#..(MID,SPO)..IDN¥330201901-202110

main85355-87701iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥330201901

main85355-87701iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥330201507-201901

main85355-87701iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥330201507-201904

main85374-BZ200iF651,652..LHD201112-201508

*H,L=710

main85374-BZ390iF65#..IDN201111-201507

*H,L=480

main85374-BZ390iF651,652..MA,SA,TH201111-201508

*H,L=480

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZ380iF65#..IDN201111-201507

*H,L=340

main85374-BZ380iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

*H,L=340

main85374-BZA90iF65#..LHD201904

*H,L=110

main85374-BZA90iF65#..LHD201508-201904

*H,L=110

main85374-BZB10iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901

*H,L=600

main85374-BZB10iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

*H,L=600

main85374-BZB10iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

*H,L=600

main85374-BZB10iF65#..(MID,SPO)..IDN201901-202110

*H,L=600

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-BZ400iF65#..IDN201111-201507

*H,L=80

main85374-BZ400iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

*H,L=80

main85374-BZA80iF65#..LHD201508-201904

main85374-BZA80iF65#..LHD201904

main85374-BZB00iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

*H,L=380

main85374-BZB00iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

*H,L=380

main85374-BZB00iF65#..(MID,SPO)..IDN201901-202110

*H,L=380

main85374-BZB00iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901

*H,L=380

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85355-87701iF65#..LHD¥330201904

main85355-87701iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥330201507-201901

RH

main85355-87701iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)¥330201507-201904

RH

main85355-87701iF65#..LHD¥330201508-201904

main85355-87701iF65#..(MID,SPO)..IDN¥330201901-202110

RH

main85355-87701iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)¥330201901

RH

main85374-BZ250iF651,652..MA,SA,TH201111-201508

*H,L=410,RH

main85374-BZ250iF65#..IDN201111-201507

*H,L=410,RH

main85374-BZ270iF65#..IDN201111-201507

*H,L=100,LH

main85374-BZ270iF651,652..MA,SA,TH201111-201508

*H,L=100,LH

main85374-BZ350iF651,652..LHD201112-201508

*H,L=190,RH

main85374-BZ360iF651,652..LHD201112-201508

*H,L=320,LH

main85374-BZ440iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

*H,L=180,LH

main85374-BZ440iF65#..(MID,SPO)..IDN201901-202110

*H,L=180,LH

main85374-BZ440iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

*H,L=180,LH

main85374-BZ440iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901

*H,L=180,LH

9004119394

main90041-19394¥180

9004A11246

main9004A-11246

18 parts on this diagram · 3 diagrams in section
