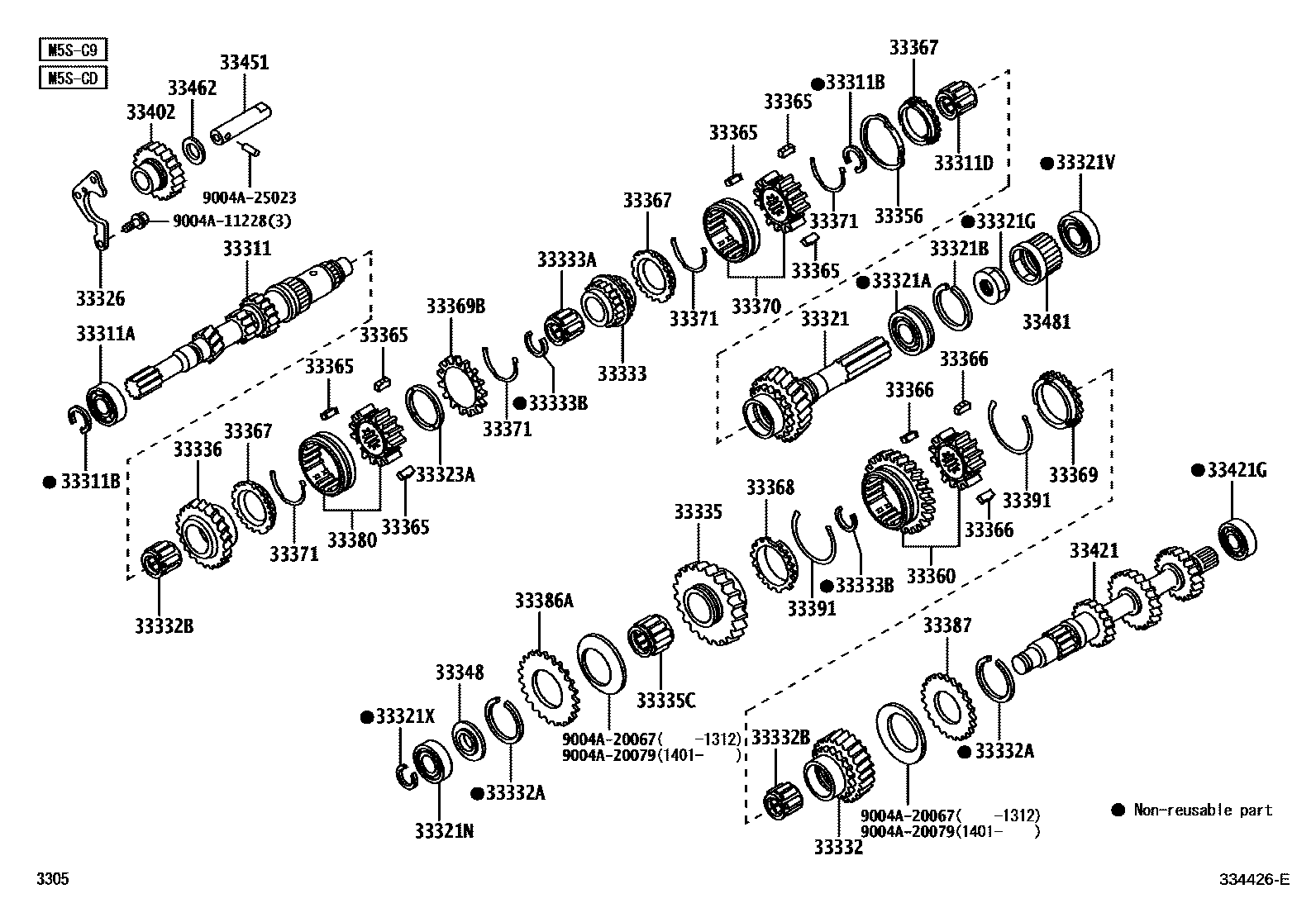

Toyota AVANZA — TRANSMISSION GEAR (MTM)

0001 1M5S-C9, M5S-CD 0002 1

33311SHAFT, INPUT

main33311-BZ020iF653..STD..GEN;F653..5F..(PHL,SA)201111-202112

main33311-BZ040iF654..5F..(IDN,TH)¥16,800201111-202112

sub33311-B4010¥19,500

33311ABEARING (FOR INPUT SHAFT FRONT)

main9004A-36047iF653,654..5F201111-201809

sub90043-63246¥1,020

sub9004A-36109¥1,020

main9004A-36109iF65#..5F¥1,020201810-202112

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main9004A-52046iF65#..5F201111-201312

T=2.06

sub90045-20271¥310

sub9004A-52079

main9004A-52047iF65#..5F201111-201312

T=2.02

sub90045-20272¥310

sub9004A-52080

main9004A-52048iF65#..5F201111-201312

T=1.98

sub90045-20273¥310

sub9004A-52081

main9004A-52049iF65#..5F201111-201312

T=1.94

sub90045-20274¥310

sub9004A-52082

main9004A-52050iF65#..5F201111-201312

T=1.90

sub90045-20275¥310

sub9004A-52083

main9004A-52051iF65#..5F201111-201312

T=1.86

sub90045-20276¥310

sub9004A-52084

main9004A-52052iF65#..5F201111-201312

T=1.82

sub90045-20277¥310

sub9004A-52085

main9004A-52053iF65#..5F201111-201312

T=1.78

sub90045-20278¥310

sub9004A-52086

main9004A-52079iF653..5F..STD..IDN;F65#..5F..(LO,MID)..(GEN,MXC)201401-202112

T=2.06

main9004A-52080iF65#..5F..(MID,SPO)..IDN201401-202112

T=2.02

main9004A-52081iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201401-202112

T=1.98

main9004A-52082iF653..STD..GEN;F653..5F..(PHL,SA);F654..5F..(GCC,GEN,PHL,SA)201401-202112

T=1.94

main9004A-52083iF653,654..5F..(IDN,MA,TH)201401-202112

T=1.90

main9004A-52084iF653,654..5F..(GCC,GEN,MXC,PHL,SA)201401-202112

T=1.86

main9004A-52085iF65#..5F..IDN201401-202112

T=1.82

main9004A-52086iF65#..5F..(MID,SPO)..IDN201401-202112

T=1.78

33311DBEARING, INPUT SHAFT

main9004A-36058iF653..5F..(IDN,MA)201111-202112

NTN

main9004A-36103iF654..5F..MXC201111-202112

33321SHAFT, OUTPUT

main33321-BZ020iF651..5F..IDN201111-201508

main33321-BZ021iF653..STD..GEN;F653..5F..(PHL,SA)201507-202112

main33321-BZ030iF652..5F..IDN¥14,900201111-201508

main33321-BZ031iF654..5F..IDN201507-202112

33321ABEARING (FOR OUTPUT SHAFT REAR)

main9004A-36011iF651..5F..IDN201111-202112

main9004A-36051iF654..5F..(IDN,TH)201111-202112

sub90043-63311¥4,400

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main9004A-52062iF653,654..5F..(GCC,GEN,MXC,PHL,SA)201111-202112

sub90045-21157¥420

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main9004A-17200iF651..5F..IDN201111-202112

main9004A-17201iF652..5F..IDN201111-202112

sub90041-79327¥440

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main9004A-36050iF653,654..5F201111-201809

sub90043-63247¥590

sub9004A-36111¥590

main9004A-36111iF653..STD..GEN;F653..5F..(PHL,SA);F654..5F..(GCC,GEN,PHL,SA)¥590201810-202112

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main9004A-36054iF653..5F..(GEN,PHL,SA)201111-202112

main9004A-36055iF654..5F..(IDN,TH)201111-202112

sub90043-63312¥1,050

33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)

main9004A-52054iF65#..5F201111-201312

T=2.06

sub90045-20279¥260

sub9004A-52087

main9004A-52055iF65#..5F201111-201312

T=2.02

sub90045-20280¥260

sub9004A-52088

main9004A-52056iF65#..5F201111-201312

T=1.98

sub90045-20281¥260

sub9004A-52089

main9004A-52057iF65#..5F201111-201312

T=1.94

sub90045-20282¥260

sub9004A-52090

main9004A-52058iF65#..5F201111-201312

T=1.90

sub90045-20283¥260

sub9004A-52091

main9004A-52059iF65#..5F201111-201312

T=1.86

sub90045-20284¥260

sub9004A-52092

main9004A-52060iF65#..5F201111-201312

T=1.82

sub90045-20285¥260

sub9004A-52093

main9004A-52061iF65#..5F201111-201312

T=1.78

sub90045-20286¥260

main9004A-52087iF653..STD..GEN;F653..5F..(PHL,SA);F654..5F..(GCC,GEN,PHL,SA)201401-202112

T=2.06

main9004A-52088iF65#..5F..(MID,SPO)..IDN201401-202112

T=2.02

main9004A-52089iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201401-202112

T=1.98

main9004A-52090iF653..5F..STD..IDN;F65#..5F..(LO,MID)..(GEN,MXC)201401-202112

T=1.94

main9004A-52091iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201401-202112

T=1.90

main9004A-52092iF653,654..5F..(GCC,GEN,MXC,PHL,SA)201401-202112

T=1.86

main9004A-52093iF653,654..5F..(IDN,MA,TH)201401-202112

T=1.82

main9004A-52094iF65#..5F..IDN201401-202112

T=1.78

33323ASPACER, SYNCHRONIZER RING

main33323-BZ010iF65#..5F201111-201401

sub33323-BZ020

main33323-BZ020iF653..5F..STD..IDN;F65#..5F..(LO,MID)..(GEN,MXC)201402-202112

33326PLATE, BEARING LOCK

main33326-BZ010iF65#..5F¥900201111-201306

sub33326-87501¥550

main33326-BZ011iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201306-202112

33332GEAR, 2ND

main33332-BZ010iF65#..5F..IDN¥11,500201111-201508

main33332-BZ090iF653,654..5F..(IDN,MA,TH)201507-202112

33332ARING, SHAFT SNAP (FOR 2ND GEAR)

main9004A-52063iF65#..5F201111-201312

sub90045-20107¥210

sub9004A-52095

main9004A-52095iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201401-202112

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main9004A-36046iF65#..5F..IDN201111-202112

INA

sub90043-64130¥490

main9004A-36057iF65#..5F..(MID,SPO)..IDN201507-202112

NTN

sub90043-64119¥460

33333GEAR, 3RD

main33305-BZ010iF654..5F..(GCC,GEN,MXC,PHL,SA)201111-202112

main33333-BZ020iF653..LO..GEN;F653..5F..STD..IDN201111-202112

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main9004A-36052iF653..5F..(GEN,PHL,SA)201111-202112

main9004A-36053iF654..5F..MXC201111-202112

sub90043-64143¥1,580

33333BRING, SHAFT SNAP (FOR 3RD REAR)

main9004A-52038iF65#..5F201111-201312

T=2.06

sub90045-20263¥370

sub9004A-52071

main9004A-52039iF65#..5F201111-201312

T=2.02

sub90045-20264¥370

sub9004A-52072

main9004A-52040iF65#..5F201111-201312

T=1.98

sub90045-20265¥370

sub9004A-52073

main9004A-52041iF65#..5F201111-201312

T=1.94

sub90045-20266¥370

sub9004A-52074

main9004A-52042iF65#..5F201111-201312

T=1.90

sub90045-20267¥370

sub9004A-52075

main9004A-52043iF65#..5F201111-201312

T=1.86

sub90045-20268¥370

sub9004A-52076

main9004A-52044iF65#..5F201111-201312

T=1.82

sub90045-20269¥370

sub9004A-52077

main9004A-52045iF65#..5F201111-201312

T=2.10

sub90045-20270¥370

sub9004A-52078

main9004A-52071iF65#..5F..IDN201401-202112

T=2.06

main9004A-52072iF653,654..5F..(GCC,GEN,MXC,PHL,SA)201401-202112

T=2.02

main9004A-52073iF653..STD..GEN;F653..5F..(PHL,SA);F654..5F..(GCC,GEN,PHL,SA)201401-202112

T=1.98

main9004A-52074iF65#..5F..(MID,SPO)..IDN201401-202112

T=1.94

main9004A-52075iF653,654..5F..(GCC,GEN,MXC,PHL,SA)201401-202112

T=1.90

main9004A-52076iF653,654..5F..(IDN,MA,TH)201401-202112

T=1.86

main9004A-52077iF653,654..5F..(IDN,MA,TH)201401-202112

T=1.82

main9004A-52078iF65#..5F..IDN201401-202112

T=2.10

33335GEAR, 1ST

main33335-BZ020iF65#..5F..IDN¥10,000201111-202112

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main9004A-36056iF65#..5F..(MID,SPO)..IDN201111-202112

sub90043-64034¥460

33336GEAR, 5TH

main33336-BZ010iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)¥8,200201111-202112

33348WASHER, 1ST GEAR THRUST

main33348-BZ010iF65#..5F..(MID,SPO)..IDN¥410201111-202112

33356SPRING, WAVE

main33356-BZ010iF65#..5F..IDN¥120201111-202112

33360HUB ASSY, SYNCHRONIZER, NO.1

main33360-BZ030iF651..5F..IDN201111-201508

main33360-BZ040iF652..5F..IDN¥6,200201111-201508

main33360-BZ170iF653..5F..(GEN,PHL,SA)201507-202112

main33360-BZ200iF654..5F..MXC201507-202112

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-BZ010iF65#..5F¥110201111-201401

sub33365-BZ030

main33365-BZ030iF65#..5F..IDN201402-202112

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-BZ010iF65#..5F¥320201111-201312

sub33366-BZ030

main33366-BZ030iF65#..5F..IDN201401-202112

33367RING, SYNCHRONIZER, NO.1

main33367-BZ010iF65#..5F¥2,690201111-201401

sub33367-BZ050

main33367-BZ050iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201402-202112

33368RING, SYNCHRONIZER, NO.2

main33368-BZ010iF65#..5F¥2,700201111-201312

sub33368-BZ080¥2,420

main33368-BZ080iF65#..5F..IDN¥2,420201401-202112

33369RING, SYNCHRONIZER, NO.3

main33369-BZ010iF65#..5F¥2,700201111-201312

sub33369-BZ050

main33369-BZ050iF65#..5F..IDN201401-201508

33369BRING, SYNCHRONIZER, NO.4

main33381-BZ010iF65#..5F201111-201312

sub33381-BZ020

main33381-BZ020iF65#..5F..IDN201401-202112

33370HUB ASSY, SYNCHRONIZER, NO.2

main33370-BZ020iF65#..5F¥4,970201111-201210

sub33370-BZ100

main33370-BZ100iF653..STD..GEN;F653..5F..(PHL,SA);F654..5F..(GCC,GEN,PHL,SA)201211-202112

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-BZ010iF65#..5F..IDN¥160201111-202112

33380HUB ASSY, SYNCHRONIZER, NO.3

main33380-BZ020iF65#..5F¥6,300201111-201210

sub33380-BZ100

main33380-BZ100iF65#..5F..IDN201211-202112

33386ASUB-GEAR, 1ST

main33386-BZ010iF65#..5F¥4,960201111-201312

sub33386-BZ040

main33386-BZ040iF65#..5F..IDN201401-202112

33387SUB-GEAR, NO.2

main33387-BZ010iF65#..5F¥3,880201111-201312

sub33387-BZ040

main33387-BZ040iF65#..5F..IDN201401-202112

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-BZ010iF65#..5F¥160201111-201312

sub33391-BZ050

main33391-BZ050iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201401-202112

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-BZ010iF653..5F..(IDN,MA)201111-202112

main33402-BZ030iF652..5F..(GCC,MXC,PHL,SA,TH)¥13,500201111-202112

sub33402-B4011¥6,500

33421GEAR, COUNTER

main33421-BZ020iF651..5F..IDN201111-202112

main33421-BZ030iF652..5F..IDN¥27,900201111-202112

33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)

main9004A-36048iF65#..5F..IDN201111-201809

sub90043-63313¥980

sub9004A-36110¥590

main9004A-36110iF65#..5F¥590201810-202112

33451SHAFT, REVERSE IDLER GEAR

main33451-BZ050iF65#..5F..IDN201111-202112

sub33451-87504¥1,440

33462WASHER, REVERSE IDLER THRUST

main33462-BZ020iF65#..5F..IDN201111-202112

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-BZ070iF651..5F..IDN201111-201508

N=6

main33481-BZ090iF652..5F..IDN201111-201508

N=6

9004A11228

main9004A-11228

9004A20067

main9004A-20067

9004A20079

main9004A-20079¥220

9004A25023

main9004A-25023

47 parts on this diagram · 2 diagrams in section
