Toyota AVANZA — STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-BZ010iF65#..IDN201111-201507

main09101-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main09101-BZ190iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main09101-BZ190iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main09101-BZ280iF65#..(MID,SPO)..IDN201901-202110

main09101-BZ280iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

09110JACK ASSY

main09111-BZ200iF65#..IDN201111-201507

sub09111-BZ201

main09111-BZ200iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

sub09111-BZ201

main09111-BZ200iF653,654201507-201512

sub09111-BZ201

main09111-BZ201iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201601-201901

main09111-BZ201iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201601-201904

main09111-BZ201iF65#..(MID,SPO)..IDN201901-202110

main09111-BZ201iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-87Z02iF65#..IDN201111-201507

main09114-87Z02iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main09114-87Z02iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main09114-87Z02iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main09114-87Z02iF65#..(MID,SPO)..IDN201901-202110

main09114-87Z02iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

09119LABEL, JACK CAUTION

main09119-BZ100iF65#..IDN201111-201507

main09119-BZ100iF651,652..MA,TH201111-201508

main09119-BZ160iF651,652..GCC,GEN,PHL,SA201111-201508

main09119-BZ240iF652..MXC201112-201508

main09119-BZ260iF65#..(MID,SPO)..IDN201901-202110

main09119-BZ260iF653..STD..IDN;F654..(SPO,STD)..MA;F654..4AT..(MID,STD)..TH201901

main09119-BZ260iF654..(SPO,STD)..MA;F654..4AT..(MID,STD)..TH201507-201904

main09119-BZ260iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main09119-BZ270iF654..MXC201508-201801

main09119-BZ280iF65#..GCC,GEN,MXC,PHL,SA201904

main09119-BZ280iF65#..GCC,GEN,PHL,SA201508-201904

main09119-BZ280iF654..MXC201801-201904

09125BAND, TOOL BAG

main09125-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥210201202-201508

main09125-BZ010iF65#..IDN¥210201202-201507

main09125-BZ010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥210201507-201901

main09125-BZ010iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥210201507-201904

main09125-BZ010iF65#..(MID,SPO)..IDN¥210201901-202110

main09125-BZ010iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥210201901

09129LABEL, JACK CAUTION

main09119-BZ020iF65#..IDN201111-201507

main09119-BZ020iF651,652..MA,TH201111-201508

main09119-BZ020iF653..STD..IDN;F654..(SPO,STD)..MA;F654..4AT..(MID,STD)..TH201901

main09119-BZ020iF654..(SPO,STD)..MA;F654..4AT..(MID,STD)..TH201507-201904

main09119-BZ020iF65#..(MID,SPO)..IDN201901-202110

main09119-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main09119-BZ050iF652..MXC201112-201508

main09119-BZ050iF654..MXC201508-201801

main09119-BZ070iF654..MXC201801-201904

main09119-BZ070iF65#..GCC,GEN,PHL,SA201508-201904

main09119-BZ070iF651,652..GCC,GEN,PHL,SA201111-201508

main09119-BZ070iF65#..GCC,GEN,MXC,PHL,SA201904

09135DRIVER, SCREW

main09135-87Z10iF65#..IDN201111-201507

main09135-87Z10iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main09135-87Z10iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main09135-87Z10iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

09141SPANNER

main09141-87Z11iF65#..IDN201111-201507

10 X 12

main09141-87Z11iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

10 X 12

main09141-87Z11iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

10 X 12

main09141-87Z11iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

10 X 12

main09141-87Z11iF65#..(MID,SPO)..IDN201901-202110

10 X 12

main09141-87Z11iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

10 X 12

09150WRENCH, HUB NUT BOX

main09150-87Z01iF65#¥1,450201111-201305

sub09150-BZ040¥1,380

main09150-BZ040iF65#..IDN¥1,380201306-201507

main09150-BZ040iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,380201306-201508

main09150-BZ040iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥1,380201507-201901

main09150-BZ040iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥1,380201507-201904

main09150-BZ040iF65#..(MID,SPO)..IDN¥1,380201901-202110

main09150-BZ040iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥1,380201901

09155WRENCH, SPARK PLUG

main09155-BZ010iF65#..IDN201111-201507

main09155-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main09155-BZ060iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main09155-BZ060iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

09158AHANDLE, SPARK PLUG WRENCH

main09158-87Z04iF65#..IDN201111-201507

main09158-87Z04iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main09158-87Z04iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main09158-87Z04iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

51960HOOK ASSY, FRONT

main51960-BZ050iF65#..IDN201111-201507

main51960-BZ050iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main51960-BZ140iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main51960-BZ140iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main51960-BZ140iF65#..(MID,SPO)..IDN201901-202110

main51960-BZ140iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

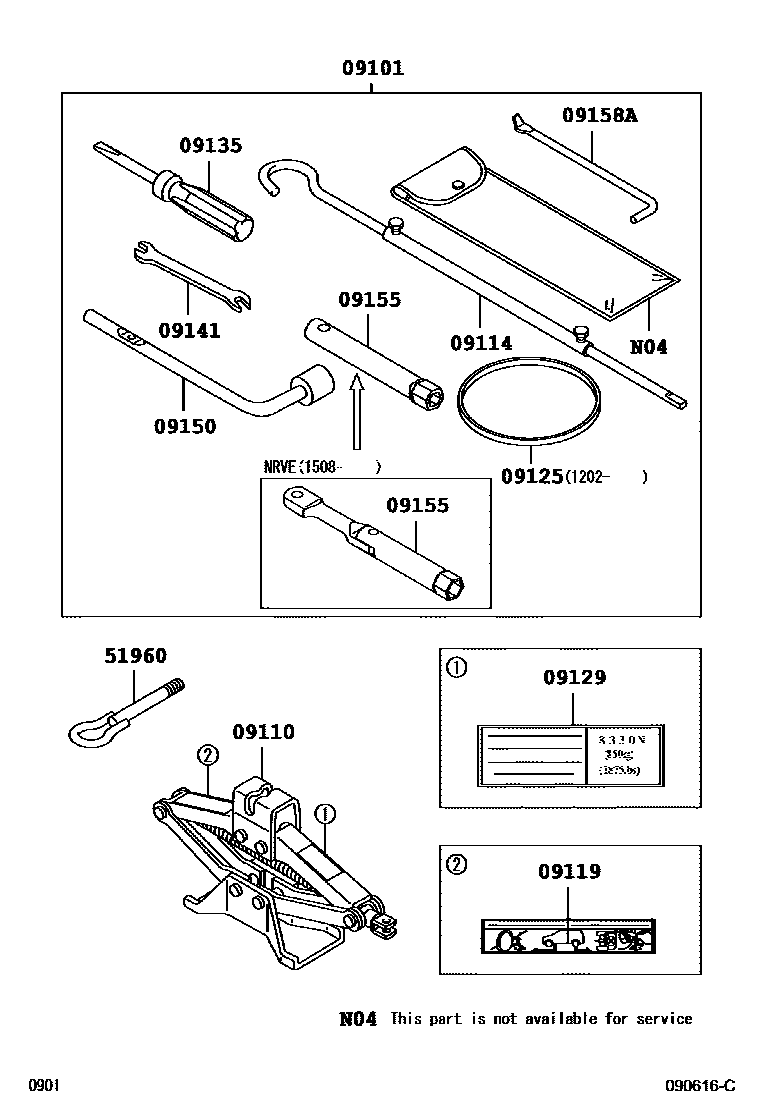

12 parts on this diagram · 2 diagrams in section
