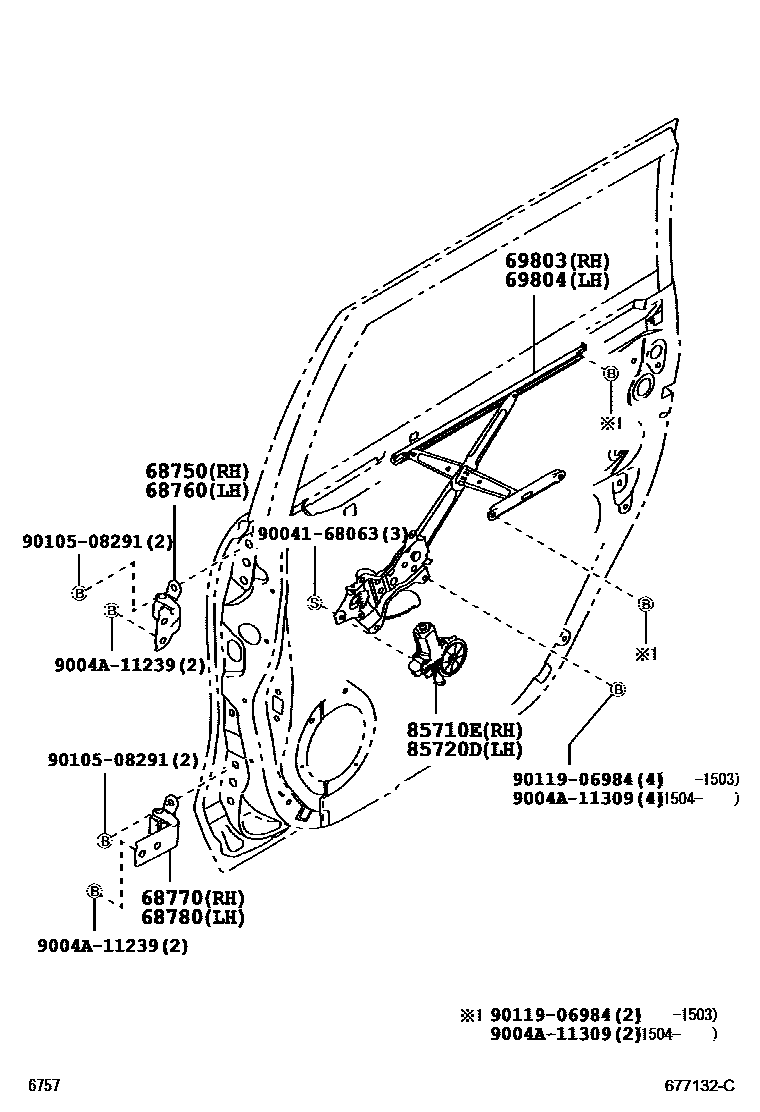

Toyota AVANZA — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-BZ010iF65#..IDN201111-202110

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-BZ010iF65#..IDN201111-202110

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-BZ010iF65#..IDN201111-202110

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-BZ010iF65#..IDN201111-202110

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-BZ110iF65#..IDN201111-202110

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-BZ100iF65#..IDN201111-202110

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ040iF65#¥27,100201111-201205

BEARING: COPPER

sub85710-BZ041¥17,100

main85710-BZ041iF65#..IDN¥17,100201205-201508

BEARING: IRON,COPPER

main85710-BZ042iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ040iF65#¥23,400201111-201205

BEARING: COPPER

sub85720-BZ041¥15,600

main85720-BZ041iF65#..IDN¥15,600201205-201508

BEARING: IRON,COPPER

main85720-BZ042iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

9004168063

main90041-68063¥100

9004A11239

main9004A-11239

9004A11309

main9004A-11309

9010508291

main90105-08291¥90

9011906984

main90119-06984¥60

13 parts on this diagram · 1 diagram in section
