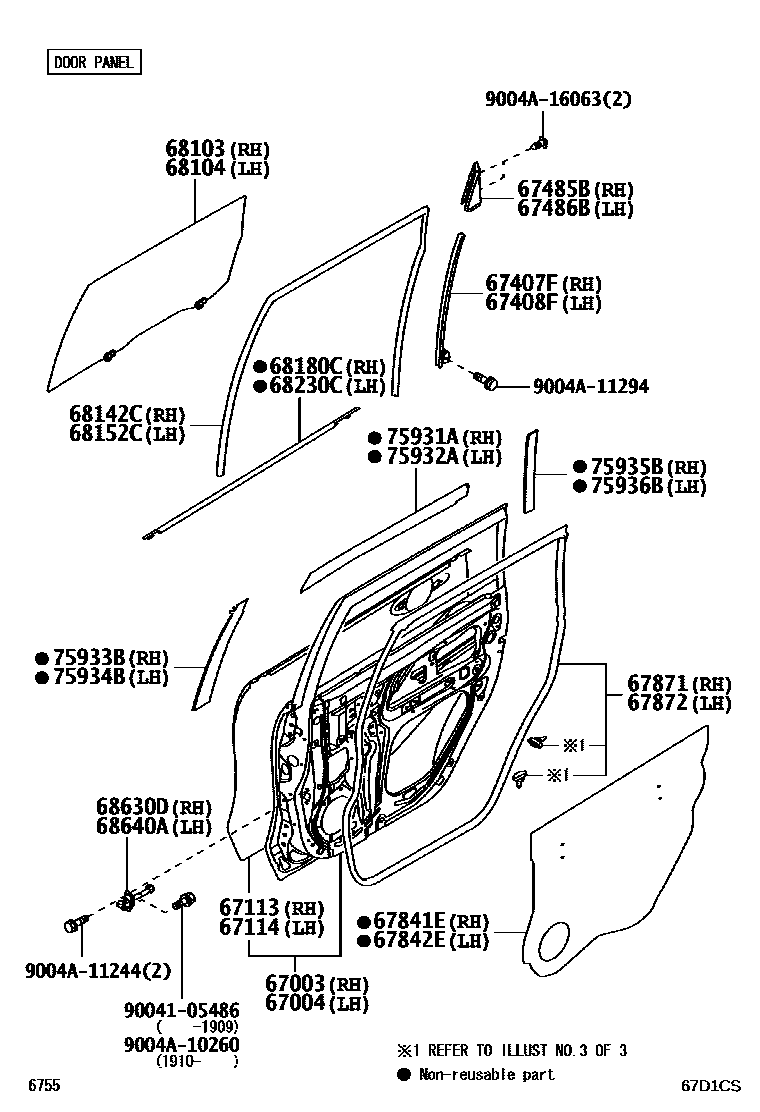

Toyota AVANZA — REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WETHERSTRIP RETAINER & CLIP 0005 1WETHERSTRIP RETAINER & CLIP

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ380iF65#..IDN201111-201507

sub67003-BZ560

main67003-BZ380iF651,652..GEN,MA,MXC,PHL,SA,TH201111-201508

sub67003-BZ560

main67003-BZ560iF654..MID..(GCC,MXC);F654..(SPO,STD)..(GCC,MA)201901-202201

main67003-BZ560iF653,654201507-201904

main67003-BZ560iF65#..GEN,IDN,PHL,SA;F654..4AT..(MID,STD)..TH201901-201907

main67003-BZ560iF652..GCC201404-201508

main67003-BZ620iF653..MID..GEN;F653..LO,STD,VB;F654..GEN,PHL,SA,TH201908

main67003-BZ620iF65#..(MID,SPO)..IDN201908-202110

main67003-BZ620iF654..MXC202201

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ370iF65#..IDN201111-201507

sub67004-BZ560

main67004-BZ370iF651,652..GEN,MA,MXC,PHL,SA,TH201111-201508

sub67004-BZ560

main67004-BZ560iF652..GCC201404-201508

main67004-BZ560iF653,654201507-201904

main67004-BZ560iF65#..GEN,IDN,PHL,SA;F654..4AT..(MID,STD)..TH201901-201907

main67004-BZ560iF654..MID..(GCC,MXC);F654..(SPO,STD)..(GCC,MA)201901-202201

main67004-BZ620iF654..MXC202201

main67004-BZ620iF65#..(MID,SPO)..IDN201908-202110

main67004-BZ620iF653..MID..GEN;F653..LO,STD,VB;F654..GEN,PHL,SA,TH201908

67113PANEL, REAR DOOR, OUTER RH

main67113-BZ240iF65#..IDN201111-201507

main67113-BZ240iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67113-BZ240iF653,654201507-201904

main67113-BZ240iF65#..(MID,SPO)..IDN201901-202110

main67113-BZ240iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

67114PANEL, REAR DOOR, OUTER LH

main67114-BZ240iF65#..IDN201111-201507

main67114-BZ240iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67114-BZ240iF653,654201507-201904

main67114-BZ240iF65#..(MID,SPO)..IDN201901-202110

main67114-BZ240iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-BZ090iF65#..IDN201111-201507

main67407-BZ090iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67407-BZ090iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main67407-BZ090iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main67407-BZ090iF65#..(MID,SPO)..IDN201901-202110

main67407-BZ090iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-BZ090iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67408-BZ090iF65#..IDN201111-201507

main67408-BZ090iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main67408-BZ090iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main67408-BZ090iF65#..(MID,SPO)..IDN201901-202110

main67408-BZ090iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-BZ040iF65#..IDN201111-201507

main67485-BZ040iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67485-BZ040iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main67485-BZ040iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main67485-BZ040iF65#..(MID,SPO)..IDN201901-202110

main67485-BZ040iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-BZ040iF65#..IDN201111-201507

main67486-BZ040iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67486-BZ040iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main67486-BZ040iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main67486-BZ040iF65#..(MID,SPO)..IDN201901-202110

main67486-BZ040iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ230iF651..STD..IDN201111-201507

main67841-BZ230iF653..LO..PHL;F65#..(LO,STD,VB)..SA201508-201904

main67841-BZ230iF651..LO..PHL;F651,652..(LO,STD,VB)..SA201111-201508

main67841-BZ230iF653..IDN202111

main67841-BZ230iF653..LO..PHL;F65#..(LO,STD,VB)..SA201904

main67841-BZ240iF65#..(MID,SPO)..IDN201111-201507

main67841-BZ240iF651..GEN,MA;F652..MID..SA;F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,TH201111-201508

main67841-BZ240iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main67841-BZ240iF653..GEN;F653..STD..PHL;F654..4AT..STD..TH;F654..(SPO,STD)..(GCC,GEN,MA,PHL);F654..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-201904

main67841-BZ240iF653..STD..IDN201901-202110

main67841-BZ240iF653..GEN;F653..STD..PHL;F654..4AT..STD..TH;F654..(SPO,STD)..(GCC,GEN,MA,PHL);F654..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-BZ230iF651..STD..IDN201111-201507

main67841-BZ230iF651..LO..PHL;F651,652..(LO,STD,VB)..SA201111-201508

main67841-BZ230iF653..LO..PHL;F65#..(LO,STD,VB)..SA201508-201904

main67841-BZ230iF653..LO..PHL;F65#..(LO,STD,VB)..SA201904

main67841-BZ230iF653..IDN202111

main67841-BZ240iF653..GEN;F653..STD..PHL;F654..4AT..STD..TH;F654..(SPO,STD)..(GCC,GEN,MA,PHL);F654..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-201904

main67841-BZ240iF653..GEN;F653..STD..PHL;F654..4AT..STD..TH;F654..(SPO,STD)..(GCC,GEN,MA,PHL);F654..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main67841-BZ240iF653..STD..IDN201901-202110

main67841-BZ240iF65#..(MID,SPO)..IDN201111-201507

main67841-BZ240iF651..GEN,MA;F652..MID..SA;F651..STD..PHL;F652..GCC,GEN,MA,MXC,PHL,TH201111-201508

main67841-BZ240iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

67871WEATHERSTRIP, REAR DOOR, RH

main67871-BZ140iF65#..IDN201111-201507

main67871-BZ140iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67871-BZ190iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main67871-BZ190iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main67871-BZ190iF65#..(MID,SPO)..IDN201901-202110

main67871-BZ190iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

67872WEATHERSTRIP, REAR DOOR, LH

main67872-BZ130iF65#..IDN201111-201507

main67872-BZ130iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main67872-BZ180iF65#..(MID,SPO)..IDN201901-202110

main67872-BZ180iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main67872-BZ180iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main67872-BZ180iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-BZ240iF651;F652..SPO,STD;F652..MID..(GEN,IDN,MA,MXC,PHL,TH)201111-201202

T=3.1,GREEN

sub68103-BZ241

main68103-BZ241iF65#..IDN201203-201507

T=3.1,GREEN

main68103-BZ241iF652..5F..STD..SA;F651..GEN,MA,PHL,SA;F652..5F..(GCC,MXC,PHL,TH);F652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201203-201508

T=3.1,GREEN

main68103-BZ241iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68103-BZ241iF653..GEN,PHL,SA;F654..LHD..5F..MID;F654..4AT..MID..GCC;F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-201904

main68103-BZ241iF65#..(MID,SPO)..IDN201901-202110

main68103-BZ241iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main68103-BZ260iF652..MID..SA201111-201202

T=3.1,SMOKE

sub68103-BZ261

main68103-BZ261iF654..MID..SA201508-201904

main68103-BZ261iF652..MID..SA201203-201508

T=3.1,SMOKE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-BZ230iF651;F652..SPO,STD;F652..MID..(GEN,IDN,MA,MXC,PHL,TH)201111-201202

T=3.1,GREEN

sub68104-BZ231

main68104-BZ231iF65#..(MID,SPO)..IDN201901-202110

main68104-BZ231iF65#..IDN201203-201507

T=3.1,GREEN

main68104-BZ231iF652..5F..STD..SA;F651..GEN,MA,PHL,SA;F652..5F..(GCC,MXC,PHL,TH);F652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201203-201508

T=3.1,GREEN

main68104-BZ231iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68104-BZ231iF653..GEN,PHL,SA;F654..LHD..5F..MID;F654..4AT..MID..GCC;F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-201904

main68104-BZ231iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main68104-BZ250iF652..MID..SA201111-201202

T=3.1,SMOKE

sub68104-BZ251

main68104-BZ251iF654..MID..SA201508-201904

main68104-BZ251iF652..MID..SA201203-201508

T=3.1,SMOKE

68142CRUN, REAR DOOR GLASS, RH

main68142-BZ100iF65#..IDN201111-201507

main68142-BZ100iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main68142-BZ100iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68142-BZ100iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main68142-BZ100iF65#..(MID,SPO)..IDN201901-202110

main68142-BZ100iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

68152CRUN, REAR DOOR GLASS, LH

main68152-BZ100iF65#..IDN201111-201507

main68152-BZ100iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main68152-BZ100iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68152-BZ100iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main68152-BZ100iF65#..(MID,SPO)..IDN201901-202110

main68152-BZ100iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-BZ040iF65#..IDN201111-201507

main68180-BZ040iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main68180-BZ040iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68180-BZ040iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main68180-BZ040iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main68180-BZ040iF65#..(MID,SPO)..IDN201901-202110

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-BZ030iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main68230-BZ030iF65#..IDN201111-201507

main68230-BZ030iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main68230-BZ030iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68230-BZ030iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main68230-BZ030iF65#..(MID,SPO)..IDN201901-202110

68630DCHECK ASSY, REAR DOOR, RH

main68630-BZ120iF65#..IDN201111-201507

main68630-BZ120iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main68630-BZ120iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68630-BZ120iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main68630-BZ120iF65#..(MID,SPO)..IDN201901-202110

main68630-BZ120iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

68640ACHECK ASSY, REAR DOOR, LH

main68630-BZ120iF65#..IDN201111-201507

main68630-BZ120iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main68630-BZ120iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main68630-BZ120iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main68630-BZ120iF65#..(MID,SPO)..IDN201901-202110

main68630-BZ120iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75931-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75931-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75931-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75931-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75931-BZ050-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75931-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75931-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75931-BZ050-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75931-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75931-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75931-BZ050-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75931-BZ050-C0iF654..(SPO,STD)..(MA,PHL)201901-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75931-BZ050-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75931-BZ050-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75932-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75932-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75932-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75932-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75932-BZ050-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75932-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75932-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75932-BZ050-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75932-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75932-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75932-BZ050-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75932-BZ050-C0iF654..(SPO,STD)..(MA,PHL)201901-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75932-BZ050-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75932-BZ050-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75933-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75933-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75933-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75933-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75933-BZ050-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75933-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75933-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75933-BZ050-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75933-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75933-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75933-BZ050-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75933-BZ050-C0iF654..(SPO,STD)..(MA,PHL)201901-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75933-BZ050-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75933-BZ050-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75934-BZ050-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75934-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75934-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75934-BZ050-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75934-BZ050-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75934-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75934-BZ050-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75934-BZ050-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75934-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75934-BZ050-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75934-BZ050-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75934-BZ050-C0iF654..(SPO,STD)..(MA,PHL)201901-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75934-BZ050-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75934-BZ050-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75935BTAPE, BLACK OUT, OUTER REAR RH

main75935-BZ060-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75935-BZ060-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75935-BZ060-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75935-BZ060-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75935-BZ060-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75935-BZ060-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75935-BZ060-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75935-BZ060-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75935-BZ060-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75935-BZ060-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75935-BZ060-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75935-BZ060-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75935-BZ060-C0iF654..(SPO,STD)..(MA,PHL)201901-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75935-BZ060-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75935-BZ060-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75936BTAPE, BLACK OUT, OUTER REAR LH

main75936-BZ060-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75936-BZ060-C0iF652..SPO..IDN201111-201507

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75936-BZ060-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75936-BZ060-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75936-BZ060-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75936-BZ060-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75936-BZ060-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75936-BZ060-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75936-BZ060-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75936-BZ060-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75936-BZ060-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75936-BZ060-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75936-BZ060-C0iF654..(SPO,STD)..(MA,PHL)201901-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75936-BZ060-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75936-BZ060-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

9004105486

main90041-05486¥170

9004A10260

main9004A-10260

9004A11244

main9004A-11244¥110

9004A11294

main9004A-11294¥110

9004A16063

main9004A-16063

31 parts on this diagram · 4 diagrams in section
