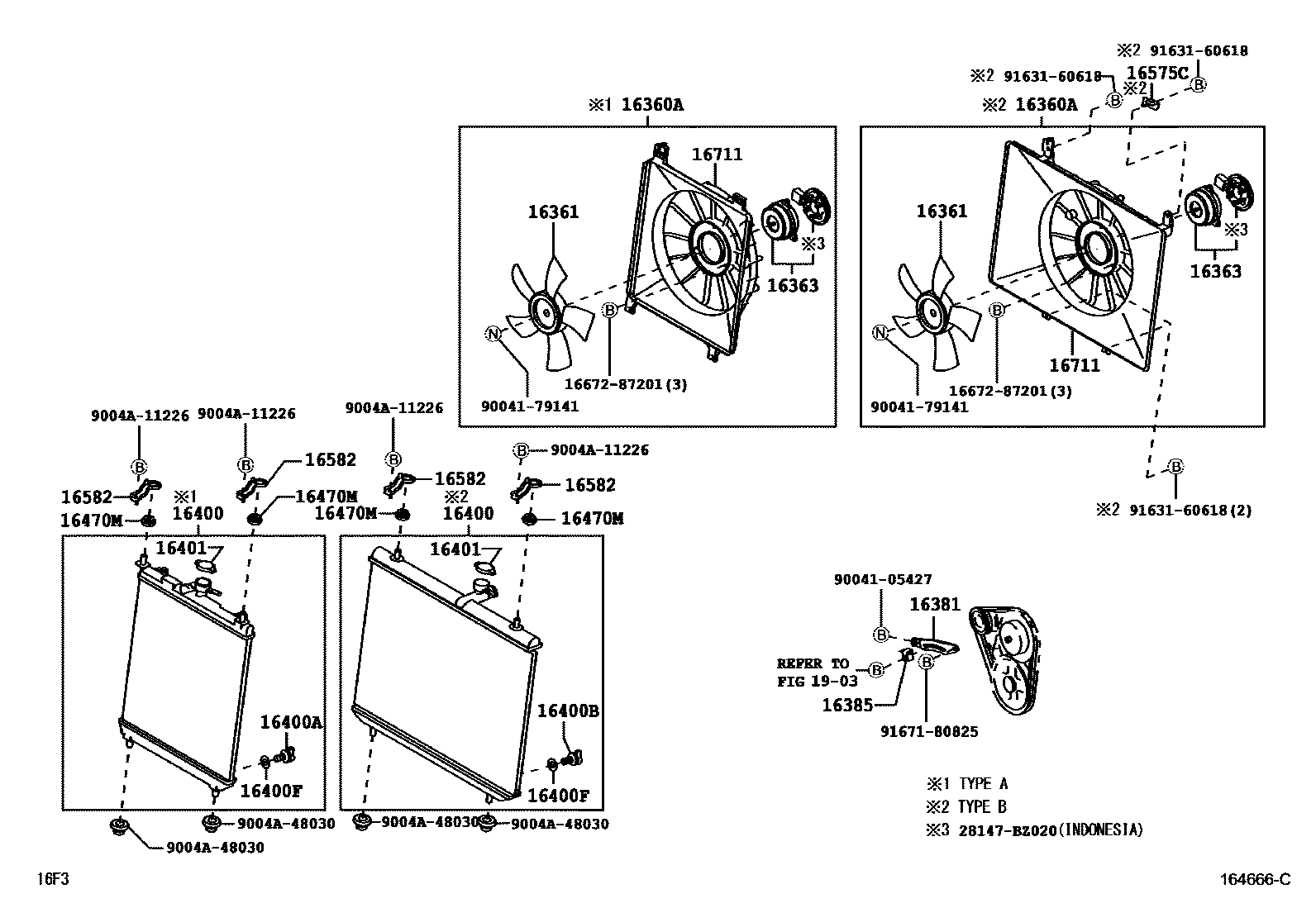

Toyota AVANZA — RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1WATER HOSE 0003 1WATER HOSE 0004 1WATER HOSE 0005 1IDLER PULLEY 0006 1RADIATOR 0007 1WATER HOSE(W/O HEATER) 0008 1WATER HOSE(W/HEATER)

16360AFAN ASSY, W/MOTOR

main16360-BZ080iK3VE..F651..5F..IDN201111-201508

TYPE A

main16360-BZ130i3SZVE..F652..GCC;K3VE..F651..MID..GEN201112-201904

TYPE B

main16360-BZ210iK3VE..F651..5F..GEN;K3VE..F651..4AT..PHL;3SZVE..F652..GEN,MA,MXC,PHL,SA,TH¥28,100201111-201508

TYPE B

main16360-BZ210i2NRVE..F654..4AT..PHL¥28,100201507-201904

TYPE A

main16360-BZ210i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥28,100201901-202110

main16360-BZ280i2NRVE..F654..GCC201508-202201

TYPE B

16361FAN

main16361-21050i2NRVE..F654..5F..GCC;2NRVE..F654..SPO..PHL;1NRVE,2NRVE..F65#..4AT..(GCC,GEN,MXC,TH)¥4,480201503-201904

main16361-87404i3SZVE..F652..GCC;K3VE..F651..MID..GEN¥3,820201112-201502

main16361-BZ090i1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH)¥6,000201111-202110

16363MOTOR, COOLING FAN

main16363-BZ040i1NRVE..F653..MID..GEN;2NRVE..F654..4AT..(GEN,MXC,PHL,TH)201112-201904

main16363-BZ100i2NRVE..F654..4AT..PHL¥18,900201111-202110

main16680-87407i2NRVE..F654..GCC201508-202201

16381BAR, FAN BELT ADJUSTING

main16381-BZ050iK3VE,3SZVE..F65#..IDN201111-201508

16385SLIDER, FAN BELT ADJUSTING

main16385-BZ010iK3VE,3SZVE..F65#..IDN201111-201508

16400RADIATOR ASSY

main16400-BZ440iK3VE..F651..5F..(MA,PHL,SA)201111-201508

TYPE A

main16400-BZ450i3SZVE..F652..5F..IDN201111-201508

TYPE B

main16400-BZ460iK3VE,3SZVE..F65#..4AT..IDN201111-201508

TYPE B

main16400-BZ640i3SZVE..F652..5F..GCC201404-201508

TYPE B

main16400-BZ650i3SZVE..F652..4AT..GCC201404-201508

TYPE B

main16400-BZ670i2NRVE..F654..5F..(GEN,MXC,PHL,SA);1NRVE..F653..5F..(LO,STD,VB)..(GEN,IDN,PHL,SA)201507-202110

main16400-BZ690i1NRVE,2NRVE..F65#..4AT..(MID,SPO)..IDN201507-202110

main16400-BZ710i2NRVE..F654..5F..GCC201508-201704

sub16400-BZA60

main16400-BZ720i2NRVE..F654..4AT..GCC201508-201704

sub16400-BZA70

main16400-BZA60i2NRVE..F654..5F..GCC201704-202201

main16400-BZA70i2NRVE..F654..4AT..GCC201704-202201

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-0C180iK3VE..F651..5F..(MA,PHL,SA)201111-201508

sub16417-21280¥360

main16417-BZ050i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201508-202110

16400BPLUG, RADIATOR DRAIN COCK

main23322-87101i3SZVE..F652..IDN;K3VE..F651..4AT..IDN¥0201111-201508

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-97201i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥110201111-202110

16401CAP SUB-ASSY, RADIATOR

main16401-BZ010iK3VE,3SZVE..F65#..IDN201111-202110

main16401-BZ050i2NRVE..F654..GCC201704-202201

16470TANK ASSY, RADIATOR RESERVE

main16470-BZ130iK3VE,3SZVE..F65#201111-201506

sub16470-BZ240

sub16470-BZ250

main16470-BZ210i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-202110

main16470-BZ240iK3VE..F651..5F..(MA,PHL,SA)201507-201508

main16470-BZ250i3SZVE..F652;K3VE..F651..GEN;K3VE..F651..4AT..PHL201507-201508

16470MGROMMET

main9004A-48017iK3VE,3SZVE..F65#..IDN¥120201111-202110

16575CBRACKET, WATER HOSE CLAMP, NO.1

main16575-BZ010i3SZVE..F652..IDN;K3VE..F651..4AT..IDN201111-201508

16582BRACKET, RADIATOR, NO.1

main16582-BZ070iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

16711SHROUD, FAN

main16711-BZ020i2NRVE..F654..4AT..MID..PHL201112-201904

main16711-BZ050iK3VE..F651..5F..GEN;K3VE..F651..4AT..PHL;3SZVE..F652..GEN,MA,MXC,PHL,SA,TH¥6,300201111-202110

main16711-BZ060iK3VE..F651..5F..IDN201111-201508

main16711-BZ110i2NRVE..F654..GCC201508-202201

1903

1667287201

main16672-87201¥0

28147BZ020

main28147-BZ020¥6,100

9004105427

main90041-05427¥170

9004179141

main90041-79141

9004A11226

main9004A-11226

9004A48030

main9004A-48030¥120

9163160618

main91631-60618¥110

9167180825

main91671-80825¥80

24 parts on this diagram · 8 diagrams in section
