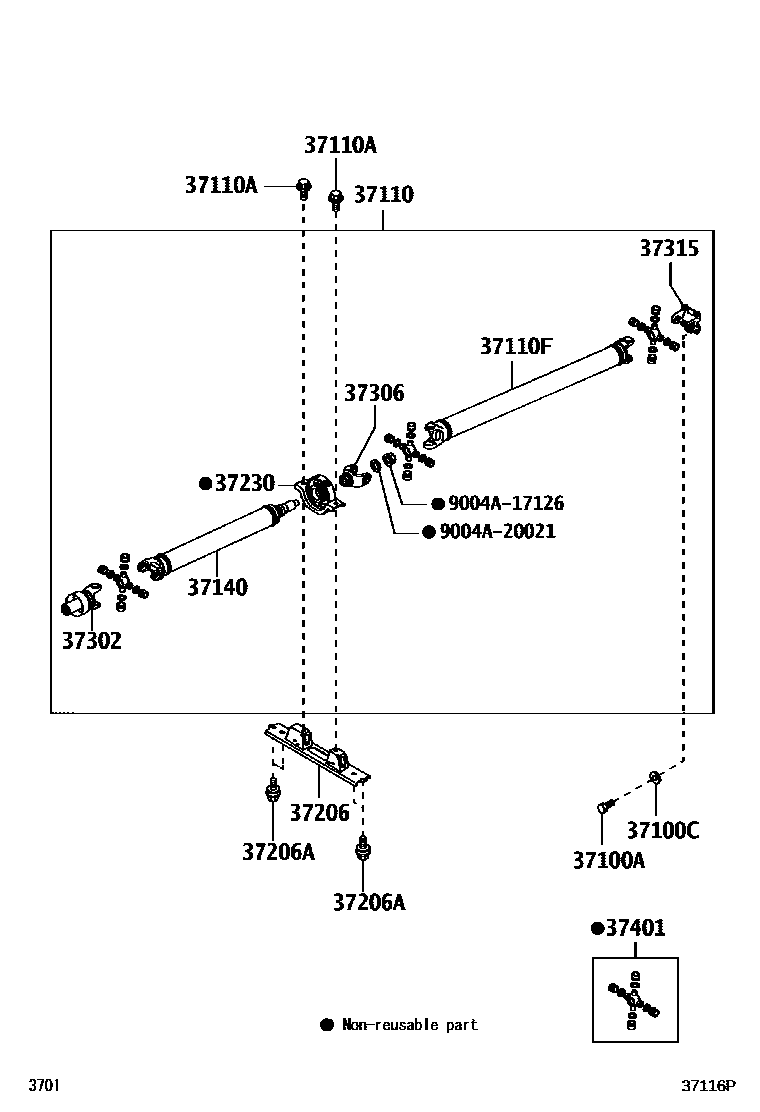

Toyota AVANZA — PROPELLER SHAFT & UNIVERSAL JOINT

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90041-01494iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥180201111-202110

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main94512-01000iF65#..(MID,SPO)..IDN¥90201111-202110

37110SHAFT ASSY, PROPELLER

main37110-BZ130iF653..5F..(GEN,IDN,PHL,SA)201507-201905

sub37110-BZ131

main37110-BZ131iF653..5F..(MID,SPO)201906-202110

main37110-BZ140iF651..5F..IDN201111-201508

main37110-BZ150iF651..LHD..4AT;F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main37110-BZ160iF654..MID..MA;F653..4AT..IDN;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201905

sub37110-BZ161

main37110-BZ161iF653..4AT..STD;F653..MID..GEN;F654..GCC,GEN,MA,MXC,PHL,SA,TH201906-202110

37110ABOLT (FOR PROPELLER SHAFT)

main9004A-10206iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

main91652-B1025iF65#¥170201111-201507

*10-1.25PX25-25

sub91651-B1025¥100

37110FSHAFT ASSY, PROPELLER, REAR

main37101-BZ040iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main37101-BZ060iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

37140SHAFT ASSY, PROPELLER, FRONT

main37104-BZ070iF65#..IDN201111-201508

main37104-BZ100iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

37206BRACKET SUB-ASSY, CENTER SUPPORT BEARING

main37231-BZ070iF65#..IDN201111-201508

main37231-BZ080iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

37206ABOLT, CENTER SUPPORT BEARING BRACKET

main9004A-11360iF65#..(MID,SPO)..IDN201803-202110

main91652-B1025iF65#¥170201111-201507

sub91651-B1025¥100

main91672-81025iF653,654¥120201507-201802

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-BZ010iF65#..IDN¥9,700201111-201508

main37230-BZ040iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-BZ050iF651..5F..IDN201111-202110

main37302-BZ060iF654..IDN;F653..4AT..(MID,SPO)..IDN201111-202110

37306YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER

main37306-BZ030iF65#..IDN201111-202110

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-BZ030iF65#..IDN201111-202110

37401SPIDER KIT, UNIVERSAL JOINT

main04371-BZ040iF65#..IDN201111-202110

9004A17126

main9004A-17126

9004A20021

main9004A-20021

15 parts on this diagram · 1 diagram in section
