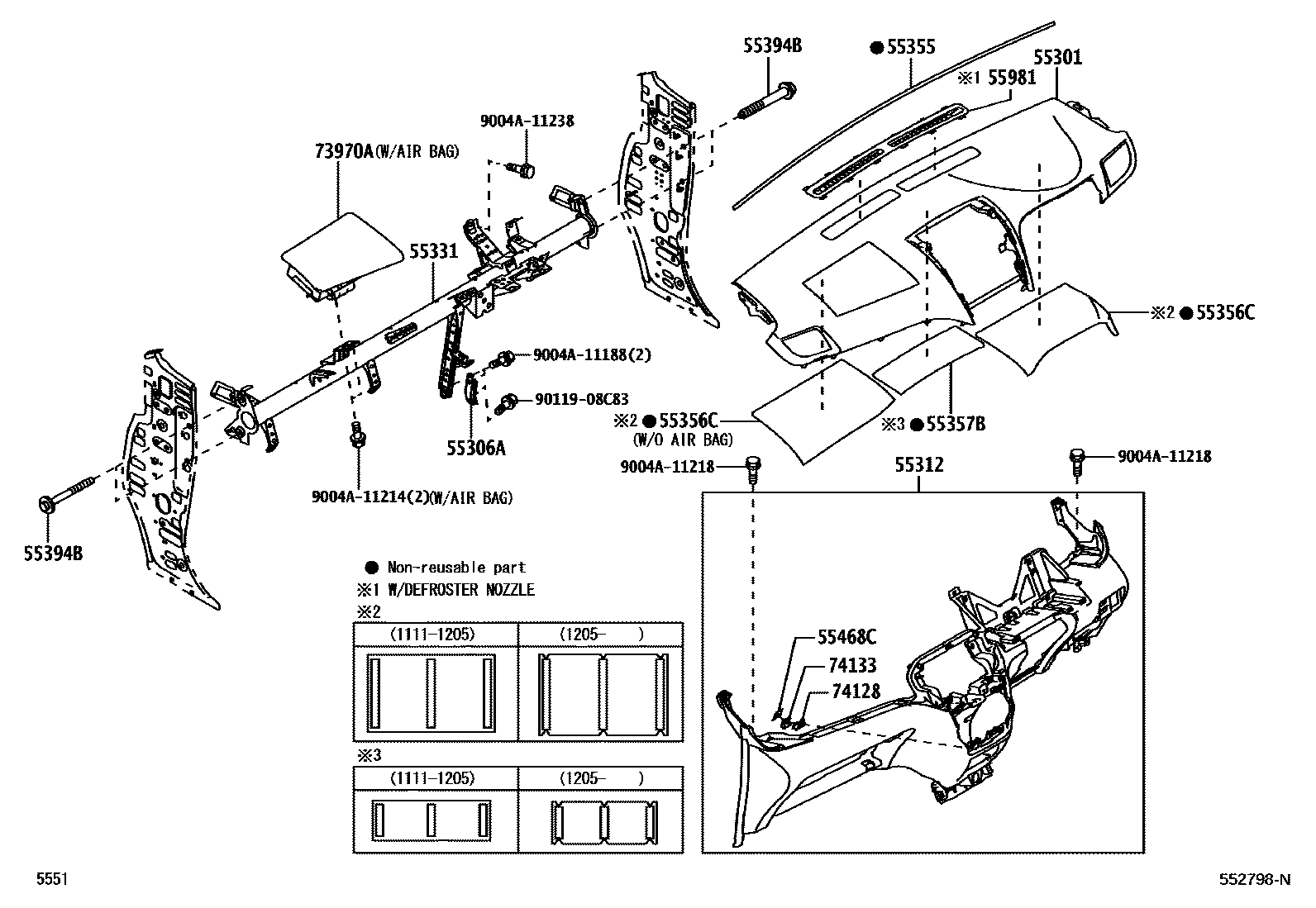

Toyota AVANZA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0004 1 0006 1 0008 1 0009 1 0011 1 0013 1 0015 1 0017 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ330-B0iF65#..STD..MA201111-201207

DK.GRAY,TRIM1#

main55311-BZ330-B0iF65#..(MID,STD)..IDN201111-201305

DK.GRAY,TRIM4#

main55311-BZ330-B0iF65#..(MID,STD)..IDN201111-201305

DK.GRAY,TRIM1#

main55311-BZ340-B0iF651,652..SA201111-201508

DK.GRAY,TRIM1#

sub55311-BZ341

main55311-BZ340-B0iF65#..SA201508-201808

DK.GRAY,TRIM1#

sub55311-BZ341

main55311-BZ341-B0iF65#..SA201904-202201

DK.GRAY,TRIM1#

main55311-BZ341-B0iF65#..SA201809-201904

DK.GRAY,TRIM1#

main55311-BZ350-B0iF653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH)201507-201808

DK.GRAY,TRIM4#

sub55311-BZ351

main55311-BZ350-B0iF653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH)201507-201808

DK.GRAY,TRIM1#

sub55311-BZ351

main55311-BZ350-B0iF651,652..STD..MA201207-201508

DK.GRAY,TRIM1#

sub55311-BZ351

main55311-BZ350-B0iF652..5F..TH;F652..MID..TH201305-201508

DK.GRAY,TRIM1#

sub55311-BZ351

main55311-BZ350-B0iF65#..(MID,STD)..IDN201305-201507

DK.GRAY,TRIM4#

sub55311-BZ351

main55311-BZ350-B0iF65#..(MID,STD)..IDN201305-201507

DK.GRAY,TRIM1#

sub55311-BZ351

main55311-BZ350-B0iF652..(MID,SPO)..MA;F652..4AT..(SPO,STD)..TH201111-201508

DK.GRAY,TRIM1#

sub55311-BZ351

main55311-BZ351-B0iF65#..SPO..IDN201901-202110

DK.GRAY,TRIM1#

main55311-BZ351-B0iF65#..(MID,STD)..IDN201809-201901

DK.GRAY,TRIM4#

main55311-BZ351-B0iF653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH)201809-201904

DK.GRAY,TRIM1#

main55311-BZ351-B0iF65#..SPO..IDN201901-202110

DK.GRAY,TRIM4#

main55311-BZ351-B0iF654..(SPO,STD)..MA;F654..4AT..(MID,STD)..TH201901-202201

DK.GRAY,TRIM1#

main55311-BZ351-B0iF653..STD..IDN201901

DK.GRAY,TRIM1#,4#

main55311-BZ370-B0iF651..PHL201112-201305

DK.GRAY,TRIM1#

main55311-BZ380-B0iF65#..MID..GEN201508-201808

DK.GRAY,TRIM1#

sub55311-BZ381

main55311-BZ380-B0iF65#..MID..GEN201508-201808

DK.GRAY,TRIM4#

sub55311-BZ381

main55311-BZ380-B0iF651,652..MID..GEN201112-201508

DK.GRAY,TRIM4#

sub55311-BZ381

main55311-BZ380-B0iF651..STD..GEN201112-201508

DK.GRAY,TRIM1#

sub55311-BZ381

main55311-BZ381-B0iF654..4AT..MXC;F65#..5F..(GEN,MXC)201904

DK.GRAY,TRIM1#

main55311-BZ381-B0iF654..4AT..MXC;F65#..5F..(GEN,MXC)201809-201904

DK.GRAY,TRIM1#

main55311-BZ381-B0iF654..4AT..MXC;F65#..5F..(GEN,MXC)201809-201904

DK.GRAY,TRIM4#

main55311-BZ381-B0iF654..4AT..MXC;F65#..5F..(GEN,MXC)201809-201904

VIETNAM,DK.GRAY,TRIM1#

main55311-BZ381-B0iF654..4AT..MXC;F65#..5F..(GEN,MXC)201809-201904

VIETNAM,DK.GRAY,TRIM4#

main55311-BZ381-B0iF654..4AT..MXC;F65#..5F..(GEN,MXC)201904

DK.GRAY,TRIM4#

main55311-BZ390-B0iF652..MXC;F651..LO..GEN201112-201508

DK.GRAY,TRIM1#

main55311-BZ420-B0iF652..GCC201404-201508

DK.GRAY,TRIM4#

main55311-BZ430-B0iF654..MID..PHL201508-201808

DK.GRAY,TRIM4#

sub55311-BZ431

main55311-BZ430-B0iF65#..(LO,SPO,STD)..PHL201508-201808

DK.GRAY,TRIM1#

sub55311-BZ431

main55311-BZ430-B0iF651..PHL201305-201508

DK.GRAY,TRIM1#

sub55311-BZ431

main55311-BZ430-B0iF652..PHL201112-201508

DK.GRAY,TRIM4#

sub55311-BZ431

main55311-BZ431-B0iF654..MID..PHL201809-201904

DK.GRAY,TRIM1#

main55311-BZ431-B0iF65#..PHL201904-202201

DK.GRAY,TRIM1#

main55311-BZ431-B0iF654..MID..PHL201809-201904

DK.GRAY,TRIM4#

main55311-BZ600-B0iF654..GCC201508-201808

DK.GRAY,TRIM4#

sub55311-BZ601

main55311-BZ601-B0iF654..GCC201809-201904

DK.GRAY,TRIM4#

main55311-BZ601-B0iF654..GCC201904-202201

DK.GRAY,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-BZ110iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main55306-BZ110iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

main55306-BZ110iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901

main55306-BZ110iF65#..(MID,SPO)..IDN201901-202110

main55306-BZ110iF65#..IDN201111-201507

main55306-BZ110iF651,652..MA,SA,TH201111-201508

55312PANEL, INSTRUMENT, LOWER

main55312-BZ020-B1iF652..SPO..IDN201111-201507

MD.GRAY,TRIM1#

main55312-BZ020-B1iF651,652..MA,SA,TH201111-201508

MD.GRAY,TRIM1#

main55312-BZ020-E0iF65#..(MID,STD)..IDN201111-201507

-,TRIM4#

main55312-BZ030-B1iF652..MXC;F651..LHD..(LO,STD)201112-201508

MD.GRAY,TRIM1#

main55312-BZ030-E0iF651..MID..GEN;F652..GCC,GEN,PHL201112-201508

-,TRIM4#

main55312-BZ080-B0iF653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)201507-201608

DK.GRAY,TRIM1#

sub55312-BZ081

main55312-BZ080-E0iF653,654..(MID,STD)..IDN201507-201608

OAK,TRIM4#

sub55312-BZ081

main55312-BZ081-B0iF653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)201609-201904

DK.GRAY,TRIM1#

main55312-BZ081-E0iF65#..(MID,STD)..IDN201609-201901

OAK,TRIM4#

main55312-BZ090-B0iF654..4AT..MXC;F654..5F..(GEN,MXC);F653..LHD..(LO,STD)201508-201608

DK.GRAY,TRIM1#

sub55312-BZ091

main55312-BZ090-E0iF654..GCC,PHL;F65#..MID..GEN201508-201608

OAK,TRIM4#

sub55312-BZ091

main55312-BZ091-B0iF654..4AT..MXC;F654..SPO..PHL;F653..LHD..(LO,STD);F654..5F..(GEN,MXC)201609-201904

DK.GRAY,TRIM1#

main55312-BZ091-E0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201609-201904

OAK,TRIM4#

main55312-BZ100-B0iF65#..SA201901-202002

DK.GRAY,TRIM1#

sub55312-BZ101

main55312-BZ100-B0iF653..SPO;F653..5F..STD..IDN;F654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(IDN,MA)201901-202003

DK.GRAY,TRIM1#

sub55312-BZ101

main55312-BZ100-E0iF65#..(MID,STD)..IDN201901-202003

LINEN BEIGE,TRIM4#

sub55312-BZ101

main55312-BZ101-B0iF65#..SPO..IDN202003-202110

DK.GRAY,TRIM1#

main55312-BZ101-B0iF654..MA,SA,TH;F653..RHD..(LO,STD,VB)202003

DK.GRAY,TRIM1#

main55312-BZ101-E0iF653..STD..IDN202003

LINEN BEIGE,TRIM4#

main55312-BZ101-E0iF65#..MID..IDN202003-202110

LINEN BEIGE,TRIM4#

main55312-BZ110-B0iF65#..PHL201904-202003

DK.GRAY,TRIM1#

sub55312-BZ111

main55312-BZ110-B0iF654..4AT..MXC;F65#..5F..(GEN,MXC)201904-202002

DK.GRAY,TRIM1#

sub55312-BZ111

main55312-BZ110-E0iF654..GCC;F65#..MID..GEN201904-202002

VIETNAM,LINEN BEIGE,TRIM4#

sub55312-BZ111

main55312-BZ110-E0iF654..GCC;F65#..MID..GEN201904-202002

LINEN BEIGE,TRIM4#

sub55312-BZ111

main55312-BZ111-B0iF653..LHD..(LO,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL)202003

DK.GRAY,TRIM1#

main55312-BZ111-E0iF654..GCC;F65#..MID..GEN202003

LINEN BEIGE,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZ340iF65#..IDN;F652..(MID,STD)..TH201111-201305

main55305-BZ340iF65#..STD..MA201111-201207

main55305-BZ360iF651..PHL201305-201508

main55305-BZ360iF652..GCC,GEN,PHL;F651..(MID,STD)..GEN201112-201508

main55305-BZ390iF652..MXC;F651..LO..GEN201112-201508

main55305-BZ390iF651..PHL201112-201305

main55305-BZ400iF65#..STD..MA201207-201305

main55305-BZ400iF65#..SA;F652..MID..MA;F652..SPO..(MA,TH)201111-201305

main55305-BZ401iF651,652..MA,SA,TH201305-201508

main55305-BZ401iF65#..IDN201305-201507

main55305-BZ480iF653..IDN;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main55305-BZ480iF654..4AT..(MID,STD)..TH201507-201904

main55305-BZ490iF653..MA;F654..MID..MA201508-201901

main55305-BZ490iF653..SA;F654..MID..SA;F654..(SPO,STD)..(MA,SA)201508-201904

main55305-BZ570iF65#..LHD..5F201508-201904

main55305-BZ600iF653..STD..IDN;F654..4AT..(MID,STD)..TH201901

main55305-BZ600iF65#..(MID,SPO)..IDN201901-202110

main55305-BZ610iF65#..MA,SA201904-202201

main55305-BZ620iF65#..LHD..4AT201904

main55305-BZ630iF65#..LHD..5F201904

main55305-BZ760iF65#..LHD..4AT201508-201904

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-BZ140iF65#..(MID,SPO)..IDN202008-202110

main55349-BZ140iF653..MID..GEN;F653..LO,STD,VB;F654..GCC,GEN,MA,MXC,PHL,SA,TH202008

main55355-BZ100iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main55355-BZ100iF65#..IDN201111-201507

main55355-BZ100iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901-202007

main55355-BZ100iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main55355-BZ100iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-BZ120iF651..LO..GEN;F652..IDN,MXC;F652..MID..TH;F651..IDN,MA,PHL;F652..STD..(MA,TH)201111-201205

main55356-BZ121iF65#..STD..MA201205-201207

sub55356-BZ122

main55356-BZ121iF651..IDN,PHL;F651..LO..GEN;F652..IDN,MXC;F652..(MID,STD)..TH201205-201212

sub55356-BZ122

main55356-BZ121iF65#..STD..MA201207-201212

sub55356-BZ122

main55356-BZ122iF652..MXC;F651..LO..GEN201301-201508

main55356-BZ122iF65#..MA,SA;F652..SPO..TH201301-201305

main55356-BZ122iF651..PHL201305-201508

main55356-BZ122iF65#..LHD201508-201904

main55356-BZ122iF65#..LHD201904

main55356-BZ130iF651,652..MA,SA,TH201305-201508

main55356-BZ130iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

main55356-BZ130iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901

main55356-BZ130iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main55356-BZ130iF65#..IDN201305-201507

main55356-BZ130iF65#..(MID,SPO)..IDN201901-202110

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-BZ070iF65#201111-201205

main55357-BZ071iF65#201205-201212

sub55357-BZ072

main55357-BZ072iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201301-201508

main55357-BZ072iF65#..IDN201301-201507

main55357-BZ072iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main55357-BZ072iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main55357-BZ072iF65#..(MID,SPO)..IDN201901-202110

main55357-BZ072iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020iF65#..IDN¥200201111-201507

main55394-BZ020iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥200201111-201508

main55394-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥200201507-201901

main55394-BZ020iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥200201507-201904

main55394-BZ020iF65#..(MID,SPO)..IDN¥200201901-202110

main55394-BZ020iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥200201901

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55696-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main55696-BZ010iF65#..IDN201111-201507

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-BZ030-B0iF654..GCC;F65#..MID..GEN201508-201904

DK.GRAY,TRIM1#

main55981-BZ030-B0iF652..MXC,SA;F651..5F..(GEN,SA)201111-201508

DK.GRAY,TRIM1#

main55981-BZ030-B0iF651,652..MID..GEN201112-201508

DK.GRAY,TRIM4#

main55981-BZ030-B0iF654..MXC,SA;F654..STD..GEN;F653..5F..(GEN,SA)201508-201904

DK.GRAY,TRIM4#

main55981-BZ030-B0iF654..GCC;F653..MID..GEN201904-202201

DK.GRAY,TRIM4#

main55981-BZ030-B0iF654..GCC;F653..MID..GEN201904-202201

DK.GRAY,TRIM1#

main55981-BZ030-B0iF654..GCC;F653..MID..GEN201904-202201

VIETNAM,DK.GRAY,TRIM4#

main55981-BZ030-B0iF654..GCC;F653..MID..GEN201904-202201

VIETNAM,DK.GRAY,TRIM1#

main55981-BZ030-B0iF654..GCC;F653..MID..GEN201904-202201

MYANMAR,DK.GRAY,TRIM1#

main55981-BZ030-B0iF654..MID..GEN201904

DK.GRAY,TRIM4#

main55981-BZ030-B0iF654..MID..GEN201904

DK.GRAY,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ100-B0iF65#..(MID,STD)..IDN201305-201507

DK.GRAY,TRIM1#

main73970-BZ100-B0iF652..SPO..IDN201305-201507

DK.GRAY,TRIM4#

main73970-BZ100-B0iF651,652..SA;F652..(MID,SPO)..MA;F652..4AT..(SPO,STD)..TH201111-201508

DK.GRAY,TRIM1#

main73970-BZ100-B0iF651,652..STD..MA201207-201508

DK.GRAY,TRIM1#

main73970-BZ100-B0iF652..5F..TH;F652..MID..TH201305-201508

DK.GRAY,TRIM1#

main73970-BZ110-B0iF651..STD..GEN201112-201508

DK.GRAY,TRIM1#

main73970-BZ110-B0iF651..STD..GEN201112-201508

DK.GRAY,TRIM4#

main73970-BZ110-B0iF651..PHL201305-201508

DK.GRAY,TRIM1#

main73970-BZ170-B0iF653..SA;F653..SPO;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(IDN,MA,SA)201901-202108

DK.GRAY,TRIM1#,4#

sub73970-BZ171

main73970-BZ170-B0iF653,654..(MID,STD)..IDN201507-201901

DK.GRAY,TRIM4#

sub73970-BZ171

main73970-BZ170-B0iF653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)201507-201904

DK.GRAY,TRIM1#

sub73970-BZ171

main73970-BZ170-B0iF653..STD..IDN201901-202108

DK.GRAY,TRIM4#

sub73970-BZ171

main73970-BZ170-B0iF653..STD..IDN201901-202108

DK.GRAY,TRIM1#

sub73970-BZ171

main73970-BZ171-B0iF65#..MA,SA,TH202109-202201

DK.GRAY,TRIM1#,4#

main73970-BZ171-B0iF65#..(MID,SPO)..IDN202109-202110

DK.GRAY,TRIM1#,4#

main73970-BZ171-B0iF653..STD..IDN202109

DK.GRAY,TRIM1#

main73970-BZ180-B0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-201904

DK.GRAY,TRIM1#

sub73970-BZ181

main73970-BZ180-B0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-201904

DK.GRAY,TRIM4#

sub73970-BZ181

main73970-BZ180-B0iF654..MID..PHL201904-202108

DK.GRAY,TRIM1#,4#

sub73970-BZ181

main73970-BZ180-B0iF654..MID..PHL201904-202108

DK.GRAY,TRIM4#

sub73970-BZ181

main73970-BZ180-B0iF654..MID..PHL201904-202108

DK.GRAY,TRIM1#

sub73970-BZ181

main73970-BZ181-B0iF65#..GCC,PHL202109-202201

DK.GRAY,TRIM1#,4#

main73970-BZ181-B0iF654..4AT..MXC202109-202201

DK.GRAY,TRIM1#

main73970-BZ181-B0iF654..MID..GEN202109

DK.GRAY,TRIM4#

main73970-BZ181-B0iF654..MID..GEN202109

DK.GRAY,TRIM1#

74128SUPPORT, FRONT ASH RECEPTACLE RETAINER

main74128-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main74128-BZ010iF65#..IDN201111-201507

74133SEAL, FRONT ASH RECEPTACLE

main74133-BZ030iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main74133-BZ030iF65#..IDN201111-201507

9004A11188

main9004A-11188¥110

9004A11214

main9004A-11214

9004A11218

main9004A-11218

9004A11238

main9004A-11238

9011908C83

main90119-08C83¥80

18 parts on this diagram · 18 diagrams in section
