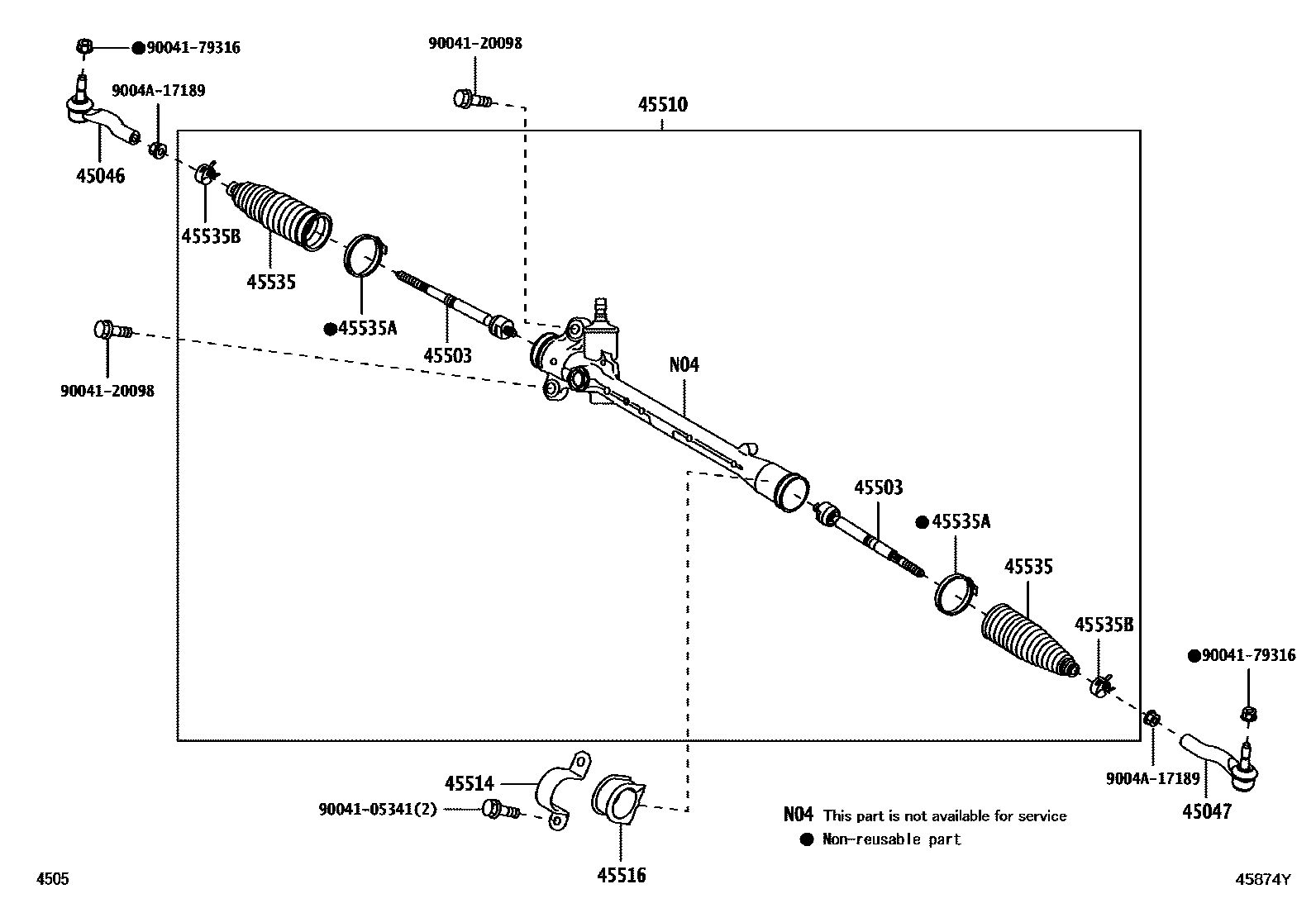

Toyota AVANZA — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ120iF65#..IDN201111-201811

sub45046-BZ240

main45046-BZ240iF65#201812-202110

45047END SUB-ASSY, TIE ROD, LH

main45047-BZ120iF65#..IDN201111-201811

sub45047-BZ140

main45047-BZ140iF65#201812-202110

45503END SUB-ASSY, STEERING RACK

main45503-BZ120iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201811

sub45503-BZ220

main45503-BZ220iF65#..(MID,SPO)..IDN201812-202110

45510GEAR ASSY, STEERING

main45510-BZ120iF652..MA,SA,TH201111-201508

main45510-BZ130iF651,652..LHD201112-201508

main45510-BZ160iF651..IDN201111-201508

main45510-BZ250iF653..RHD..(LO,MID,STD,VB)201507-201811

sub45510-BZ410

main45510-BZ260iF653..SPO;F654..RHD201507-201811

sub45510-BZ420

main45510-BZ270iF65#..LHD201508-201811

sub45510-BZ430

main45510-BZ410iF653..(LO,STD,VB)..(IDN,SA)201812-202110

main45510-BZ420iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201812-202201

main45510-BZ430iF65#..LHD201812-201904

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-BZ120iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-BZ120iF65#..IDN201111-202110

45535BOOT, STEERING RACK, NO.1

main45535-BZ070iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202103

sub45535-BZ130

main45535-BZ130iF653..MID..GEN;F653..LO,STD,VB;F654..GCC,GEN,MA,MXC,PHL,SA,TH202103-202110

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-BZ020iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202201

sub45538-BZ080

main45538-BZ080iF653..MID..IDN202108-202110

45535BCLIP(FOR STEERING RACK BOOT)

main9004A-46138iF65#..IDN201111-202110

9004105341

main90041-05341

9004120098

main90041-20098¥290

9004179316

main90041-79316¥170

9004A17189

main9004A-17189

13 parts on this diagram · 1 diagram in section
