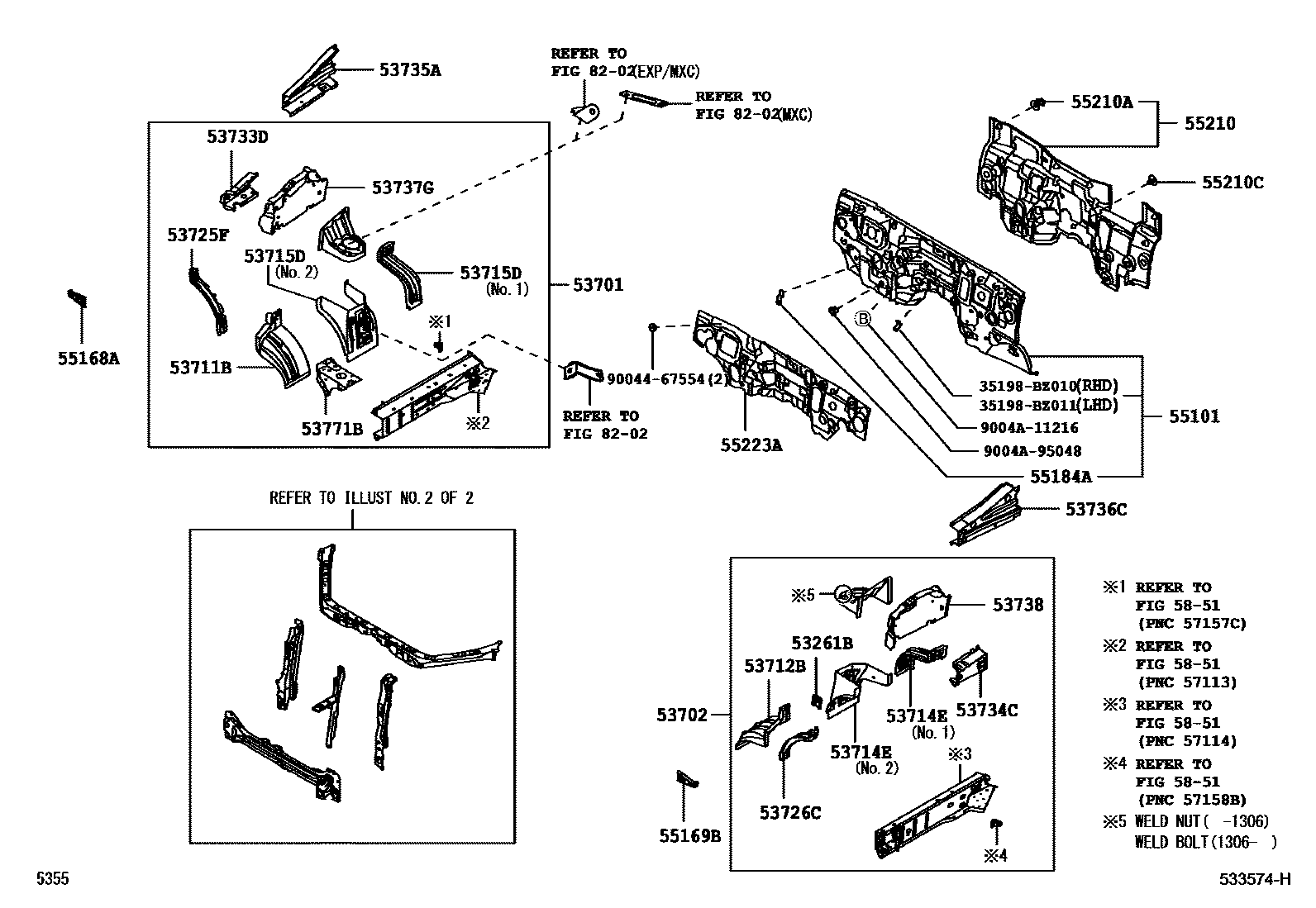

Toyota AVANZA — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1

53261BBRACKET, RADIATOR RESERVE TANK MOUNTING

main53261-87Z02iF65#..IDN201111-201508

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-BZ380iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

main53701-BZ470iF65#..IDN201111-201508

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-BZ070iF65#..IDN201111-201508

W/WELD NUT

main53702-BZ200iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

W/WELD NUT

main53702-BZ540iF651,652..LHD201307-201508

W/WELD BOLT

53711BAPRON, FRONT FENDER, FRONT RH

main53711-BZ120iF65#..IDN201111-201508

main53711-BZ160iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53712BAPRON, FRONT FENDER, FRONT LH

main53712-BZ010iF65#..IDN201111-201508

main53712-BZ170iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53714EAPRON, FRONT FENDER, REAR LH

main53714-BZ010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

NO.1

main53718-BZ070iF65#..IDN201111-201508

NO.2

main53718-BZ100iF653,654201507-201612

NO.2

main53718-BZ101iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201701-202110

NO.2

53715DAPRON, FENDER SIDE, RH

main53713-BZ010iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

NO.1

main53717-BZ090iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

NO.2

main53717-BZ100iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

NO.2

53725FAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main53725-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53726CAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-BZ010iF65#..IDN201111-201508

main53726-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-BZ010iF65#..IDN201111-201508

main53733-BZ070iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-BZ010iF65#..IDN201111-201508

main53734-BZ070iF65#..(MID,SPO)..IDN201507-202110

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-BZ040iF65#201111-201304

sub53735-BZ060

main53735-BZ060iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201305-201508

main57023-BZ020iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-BZ050iF65#201111-201304

sub53736-BZ090

main53736-BZ090iF65#..IDN201305-201508

main57024-BZ010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-BZ060iF65#..IDN201111-201508

main53737-BZ080iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-BZ060iF65#..IDN201111-201508

main53738-BZ080iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53771BSUPPORT, BATTERY CARRIER, RH

main53703-BZ080iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

main53771-BZ030iF65#..IDN201111-201508

55101PANEL SUB-ASSY, DASH

main55101-BZC30iF651..RHD..5F201111-201305

main55101-BZC31iF651..MA,SA201305-201508

main55101-BZC40iF652..RHD..5F201111-201305

main55101-BZC41iF652..5F..(SA,TH)201305-201508

main55101-BZC50iF65#..RHD..4AT201111-201305

main55101-BZC51iF65#..4AT..IDN201305-201508

main55101-BZC60iF651..LHD..5F201112-201508

main55101-BZC70iF652..5F..(GCC,PHL)201112-201508

main55101-BZC80iF652..4AT..PHL;F651,652..LHD..4AT..STD201112-201508

main55101-BZC90iF652..5F..MXC201112-201508

main55101-BZD00iF651,652..4AT..MID..(GCC,GEN,MXC)201112-201508

main55101-BZF10iF653..SA201507-202110

main55101-BZF20iF654..5F..IDN201507-202201

main55101-BZL20iF654..MID..MA;F653..4AT..IDN;F654..4AT..SPO..(IDN,TH)201507-202110

main55101-BZL30iF653..LHD..5F201508-201904

main55101-BZL40iF654..5F..(GCC,GEN,PHL)201508-202201

main55101-BZL50iF654..5F..MXC201508-201904

main55101-BZL60iF654..4AT..MID..PHL;F65#..LHD..4AT..(SPO,STD)201508-202201

main55101-BZL70iF65#..4AT..MID..(GCC,GEN,MXC)201508-201904

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-BZ040iF65#..IDN201111-201508

main55168-BZ150iF653,654201507-201609

sub55168-BZ151

main55168-BZ151iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201610-202110

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55168-BZ040iF65#..IDN201111-201508

main55169-BZ120iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

55184ABRACKET, DASH PANEL

main55184-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

55210INSULATOR ASSY, DASH PANEL

main55210-BZ270iF65#..IDN201111-201205

main55210-BZ271iF65#..IDN201205-201507

main55210-BZ280iF65#..MA,SA,TH201111-201205

main55210-BZ281iF651,652..MA,SA,TH201205-201508

main55210-BZ290iF65#..LHD201112-201205

main55210-BZ291iF651,652..LHD201205-201508

main55210-BZ450iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201904

main55210-BZ460iF65#..LHD201508-201904

main55210-BZ561iF65#..(MID,SPO)..IDN201901-202110

main55210-BZ570iF65#..LHD201904

55210ACLIP

main9004A-46130iF65#201111-201508

main90467-11122iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥100201507-202110

55210CCLIP

main9004A-46131-B0iF65#..IDN201111-201508

DK.GRAY

55223AINSULATOR, DASH PANEL, OUTER

main55223-BZ100iF651,652..MA,SA,TH201111-201508

main55223-BZ110iF651,652..LHD201112-201508

main55223-BZ130iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201507-202110

main55223-BZ140iF65#..LHD201508-201904

5851

8202

35198BZ010CLAMP, TRANSAXLE APPLY TUBE, NO.4

main35198-BZ010

35198BZ011CLAMP, TRANSAXLE APPLY TUBE, NO.4

main35198-BZ011

9004467554

main90044-67554¥110

9004A11216

main9004A-11216

9004A95048

main9004A-95048

31 parts on this diagram · 4 diagrams in section
