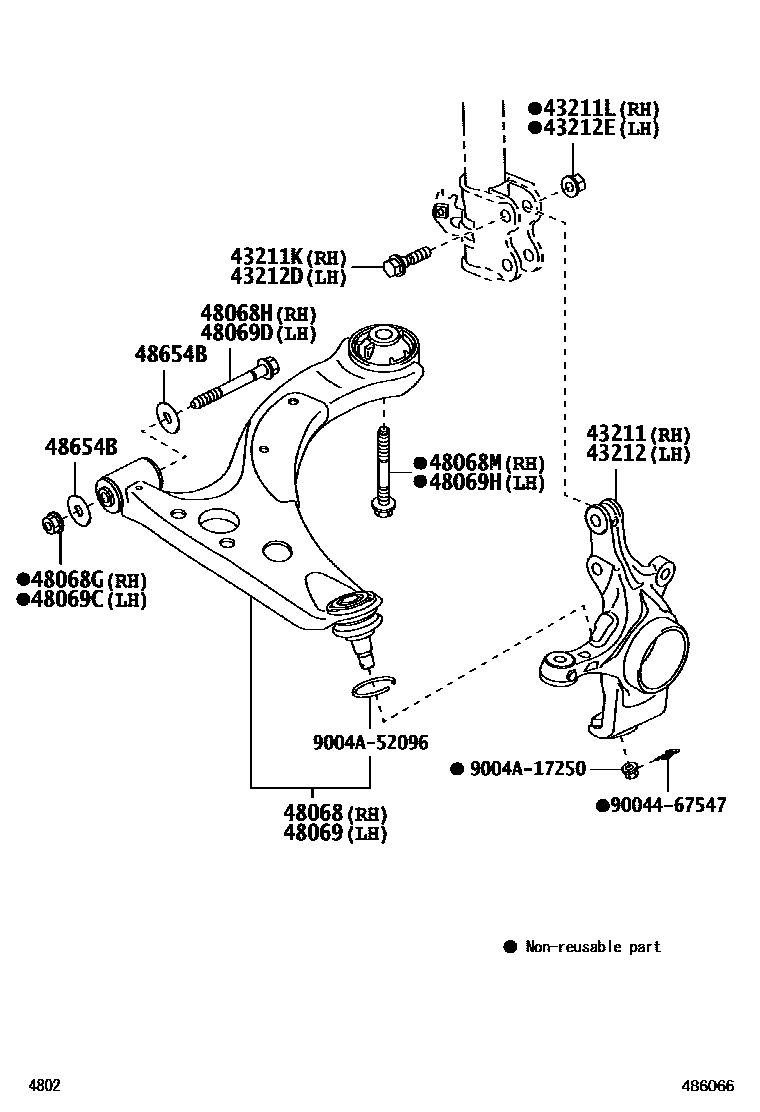

Toyota AVANZA — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-BZ240iF652..MXC;F651..LHD..LO;F651,652..STD..(MA,TH)201111-201508

main43211-BZ240iF651..STD..PHL201112-201508

L/ABS

main43211-BZ250iF651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA201111-201508

W/ABS

main43211-BZ250iF652..SPO..IDN201111-202111

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01710iF65#..IDN¥390201111-201511

main9004A-10148iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201511-202110

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70391iF65#..IDN¥270201111-201509

main9004A-17251iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201510-202110

43212KNUCKLE, STEERING, LH

main43212-BZ240iF652..MXC;F651..LHD..LO;F651,652..STD..(MA,TH)201111-201508

main43212-BZ240iF653..IDN201112-201508

L/ABS

main43212-BZ250iF65#..(MID,SPO)..IDN201111-202111

main43212-BZ250iF652..(MID,SPO)..(MA,TH)201111-201508

W/ABS

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01710iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥390201111-201511

main9004A-10148iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201511-202110

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70391iF65#..IDN¥270201111-201509

main9004A-17251iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201510-202110

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-BZ160iF652..MXC;F651..GEN,MA,PHL,SA;F652..STD..(GCC,MA,SA)201111-201508

sub48068-BZ190

main48068-BZ170iF652..STD..TH;F652..(MID,SPO)..(GCC,GEN,MA,PHL,SA,TH)201111-201508

main48068-BZ190iF654..5F..MXC201507-202201

main48068-BZ200iF653..SPO;F654..IDN201507-202110

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-70367iF653,654¥100201111-201509

main9004A-17255iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201510-202110

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-01659iF65#..IDN201111-201512

main9004A-10161iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201512-202110

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05450iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201706

main90041-05482iF653,654¥430201507-201509

main9004A-11347iF65#..(MID,SPO)..IDN201707-202110

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-BZ160iF651..IDN201111-201508

sub48069-BZ190

main48069-BZ170iF652..IDN201111-201508

main48069-BZ190iF654..5F..MXC201507-202201

main48069-BZ200iF653..SPO;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-70367iF65#..IDN¥100201111-201509

main9004A-17255iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201510-202110

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-01659iF65#..IDN201111-201512

main9004A-10161iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201512-202110

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05450iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201706

main90041-05482iF653,654¥430201507-201509

main9004A-11347iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201707-202110

48654BWASHER, PLATE(FOR LOWER ARM BUSH)

main9004A-20020iF65#..IDN201111-202110

9004467547

main90044-67547¥110

9004A17250

main9004A-17250

9004A52096

main9004A-52096

18 parts on this diagram · 1 diagram in section
