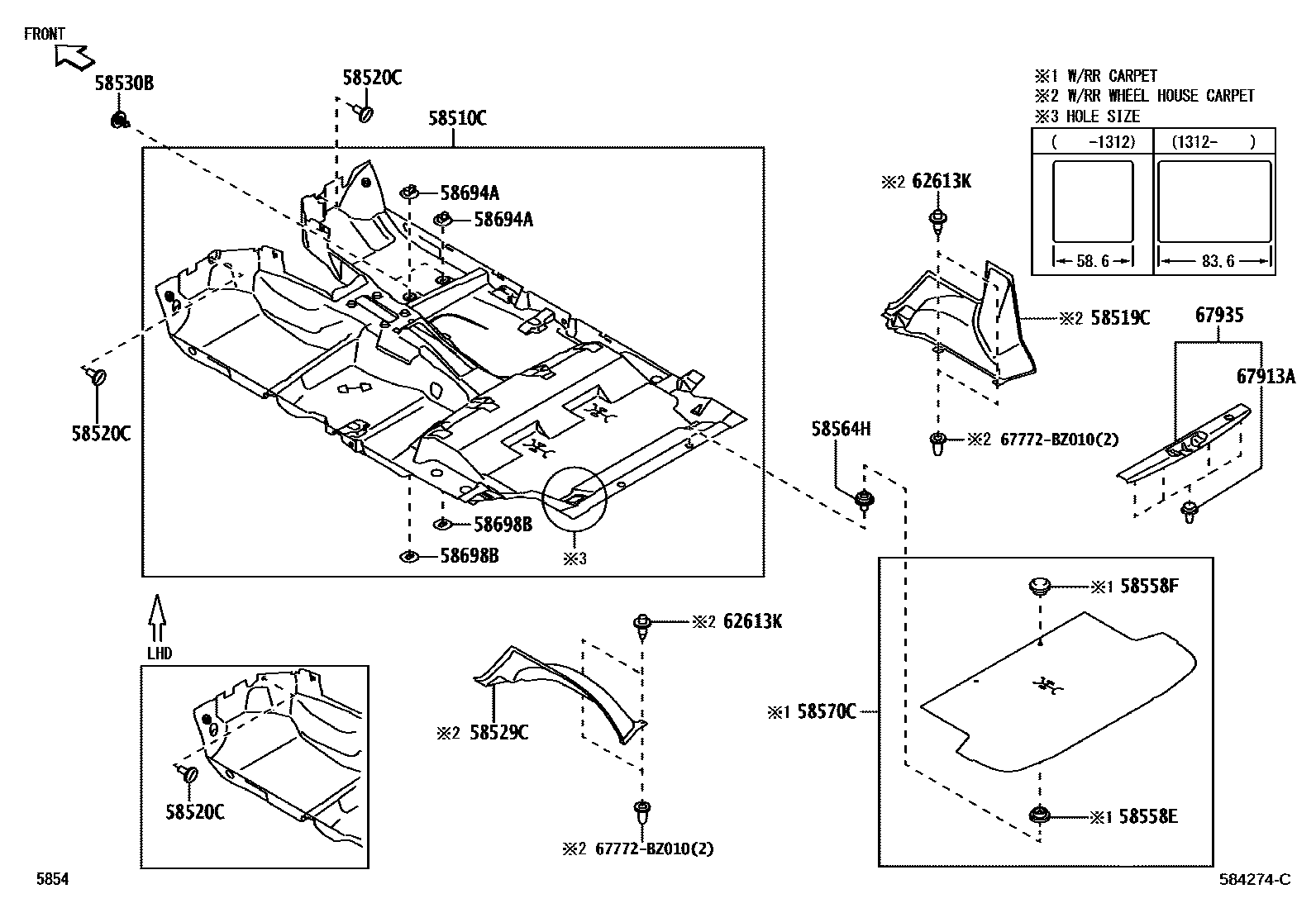

Toyota AVANZA — FLOOR MAT & SILENCER PAD

0001 1 0004 1 0006 1 0007 1 0008 1 0009 1 0011 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-BY670-C0iF653..4AT..IDN202111

BLACK,TRIM1#

main58510-BZ610-C0iF652..4AT..SA201305-201312

BLACK,TRIM1#

main58510-BZ611-C0iF652..4AT..IDN201312-201507

BLACK,TRIM1#

main58510-BZ611-C0iF652..4AT..IDN201312-201507

BLACK,TRIM4#

main58510-BZ611-C0iF652..4AT..(SA,TH)201312-201508

BLACK,TRIM1#

main58510-BZ850-C0iF651..4AT..IDN201111-201312

BLACK,TRIM1#

main58510-BZ850-C0iF652..4AT..SA201111-201305

BLACK,TRIM1#

main58510-BZ850-C0iF651..4AT..IDN201111-201312

BLACK,TRIM4#

main58510-BZ870-C0iF651..MA;F652..5F..(SPO,STD)..(IDN,TH)201111-201312

BLACK,TRIM1#

main58510-BZ870-C0iF65#..5F..(MID,STD)..IDN201111-201312

BLACK,TRIM4#

main58510-BZ870-C0iF65#..5F..(LO,MID,STD)..SA201111-201305

BLACK,TRIM1#

main58510-BZA00-C0iF65#..MID..GEN201112-201306

BLACK,TRIM1#

sub58510-BZA01

main58510-BZA00-C0iF65#..MID..GEN201112-201306

BLACK,TRIM4#

sub58510-BZA01

main58510-BZA01-C0iF652..MXC201307-201312

BLACK,TRIM1#

main58510-BZA01-C0iF65#..MID..GEN201307-201312

BLACK,TRIM4#

main58510-BZA02-C0iF651,652..MID..GEN201312-201508

BLACK,TRIM1#

main58510-BZA02-C0iF652..MXC201312-201508

BLACK,TRIM4#

main58510-BZA20-C0iF652..PHL201112-201306

BLACK,TRIM1#

sub58510-BZA21

main58510-BZA20-C0iF652..PHL201112-201306

BLACK,TRIM4#

sub58510-BZA21

main58510-BZA21-C0iF651..STD..PHL201307-201312

BLACK,TRIM4#

main58510-BZA21-C0iF652..PHL201307-201312

BLACK,TRIM1#

main58510-BZA22-C0iF651..STD..PHL201312-201508

BLACK,TRIM4#

main58510-BZA22-C0iF652..PHL201312-201508

BLACK,TRIM1#

main58510-BZA70-C0iF651..VB201111-201305

BLACK,TRIM1#

sub58510-BZA71

main58510-BZA80-C0iF651..LO..GEN201112-201305

BLACK,TRIM1#

sub58510-BZA81

main58510-BZA80-C0iF651..LO..PHL201112-201306

BLACK,TRIM1#

sub58510-BZA81

main58510-BZA81-C0iF651..LO..PHL201307-201312

BLACK,TRIM1#

main58510-BZA82-C0iF651..LO..PHL201312-201508

BLACK,TRIM1#

main58510-BZB00-C0iF65#..5F..(LO,MID,STD)..SA201305-201312

BLACK,TRIM1#

main58510-BZB01-C0iF652..5F..SPO201312-201507

BLACK,TRIM4#

main58510-BZB01-C0iF652..5F..SPO201312-201507

BLACK,TRIM1#

main58510-BZB01-C0iF651,652..5F..(LO,MID,STD)..(SA,TH)201312-201508

BLACK,TRIM1#

main58510-BZC00-C0iF651..LO..GEN201305-201306

BLACK,TRIM1#

sub58510-BZC01

main58510-BZC00-C0iF651..STD..GEN201112-201306

BLACK,TRIM1#

sub58510-BZC01

main58510-BZC01-C0iF651..5F..GEN201307-201312

BLACK,TRIM1#

main58510-BZC02-C0iF651..5F..GEN201312-201508

BLACK,TRIM1#

main58510-BZD00-C0iF651..VB201305-201312

BLACK,TRIM1#

main58510-BZD01-C0iF651..VB201312-201508

BLACK,TRIM1#

main58510-BZD20-C0iF652..MA201312-201508

BLACK,TRIM1#

main58510-BZD30-C0iF651..MA201312-201508

BLACK,TRIM1#

main58510-BZD80-C0iF652..4AT..MID..GCC201404-201508

BLACK,TRIM4#

main58510-BZD90-C0iF652..STD..GCC;F652..5F..MID..GCC201404-201508

BLACK,TRIM4#

main58510-BZE00-C0iF653..4AT..SPO;F654..4AT..(IDN,MA,TH)201507-201712

BLACK,TRIM4#

main58510-BZE00-C0iF653..4AT..(MID,STD)..IDN201507-201712

BLACK,TRIM1#

main58510-BZE01-C0iF653..4AT..SPO;F654..4AT..(IDN,MA,TH)201712-201801

BLACK,TRIM1#

sub58510-BZE02

main58510-BZE01-C0iF653..4AT..(MID,STD)..IDN201712-201801

BLACK,TRIM4#

sub58510-BZE02

main58510-BZE02-C0iF653..4AT..(MID,STD)..IDN201802-201901

BLACK,TRIM4#

main58510-BZE02-C0iF653..4AT..SPO;F654..4AT..(IDN,MA,TH)201802-201904

BLACK,TRIM1#

main58510-BZE10-C0iF653..MA;F653..5F..SPO;F654..5F..(SPO,STD)..(IDN,TH)201507-201712

BLACK,TRIM1#

main58510-BZE10-C0iF653,654..5F..(MID,STD)..IDN201507-201712

BLACK,TRIM4#

main58510-BZE11-C0iF65#..5F..(MID,STD)..IDN201712-201801

BLACK,TRIM1#

sub58510-BZE12

main58510-BZE11-C0iF65#..5F..(MID,STD)..IDN201712-201801

BLACK,TRIM4#

sub58510-BZE12

main58510-BZE12-C0iF653..MA;F653..5F..SPO;F654..5F..(SPO,STD)..(IDN,TH)201802-201901

BLACK,TRIM4#

main58510-BZE12-C0iF653..MA;F653..5F..SPO;F654..5F..(SPO,STD)..(IDN,TH)201802-201901

BLACK,TRIM1#

main58510-BZE20-C0iF654..4AT..SA201508-201712

BLACK,TRIM1#

main58510-BZE21-C0iF654..4AT..SA201712-201801

BLACK,TRIM1#

sub58510-BZE22

main58510-BZE22-C0iF654..4AT..SA201802-201904

BLACK,TRIM1#

main58510-BZE30-C0iF653..VB201508-201712

BLACK,TRIM1#

main58510-BZE31-C0iF653..VB201712-201801

BLACK,TRIM1#

sub58510-BZE32

main58510-BZE32-C0iF653..VB201802-201904

BLACK,TRIM1#

main58510-BZE40-C0iF65#..5F..(LO,MID,STD)..SA201508-201712

BLACK,TRIM1#

main58510-BZE41-C0iF65#..5F..(LO,MID,STD)..SA201712-201801

BLACK,TRIM1#

sub58510-BZE42

main58510-BZE42-C0iF65#..5F..(LO,MID,STD)..SA201802-201904

BLACK,TRIM1#

main58510-BZE90-C0iF65#..5F..GEN201508-201712

BLACK,TRIM1#

main58510-BZE91-C0iF65#..5F..GEN201712-201801

BLACK,TRIM1#

sub58510-BZE92

main58510-BZE92-C0iF65#..5F..GEN201802-201904

BLACK,TRIM1#

main58510-BZF00-C0iF65#..(SPO,STD)..PHL201508-201712

BLACK,TRIM4#

main58510-BZF00-C0iF654..5F..(GCC,PHL);F654..4AT..STD..GCC;F654..4AT..MID..PHL201508-201712

BLACK,TRIM1#

main58510-BZF01-C0iF65#..(SPO,STD)..PHL201712-201801

BLACK,TRIM4#

sub58510-BZF02

main58510-BZF01-C0iF65#..(SPO,STD)..PHL201712-201801

BLACK,TRIM1#

sub58510-BZF02

main58510-BZF02-C0iF654..5F..(GCC,PHL);F654..4AT..STD..GCC;F654..4AT..MID..PHL201802-201904

BLACK,TRIM1#

main58510-BZF02-C0iF654..5F..(GCC,PHL);F654..4AT..STD..GCC;F654..4AT..MID..PHL201802-201904

BLACK,TRIM4#

main58510-BZF10-C0iF65#..4AT..MID..(GCC,GEN)201508-201712

BLACK,TRIM4#

main58510-BZF10-C0iF654..MXC201508-201712

BLACK,TRIM1#

main58510-BZF11-C0iF65#..4AT..MID..(GCC,GEN)201712-201801

BLACK,TRIM1#

sub58510-BZF12

main58510-BZF11-C0iF654..MXC201712-201801

BLACK,TRIM4#

sub58510-BZF12

main58510-BZF12-C0iF65#..4AT..MID..(GCC,GEN)201802-201904

BLACK,TRIM4#

main58510-BZF12-C0iF654..MXC201802-201904

BLACK,TRIM1#

main58510-BZF20-C0iF653..LO..PHL201508-201712

BLACK,TRIM1#

main58510-BZF21-C0iF653..LO..PHL201712-201801

BLACK,TRIM1#

sub58510-BZF22

main58510-BZF22-C0iF653..LO..PHL201802-201904

BLACK,TRIM1#

main58510-BZJ80-C0iF654..MA,TH201904-202201

BLACK,TRIM1#

main58510-BZJ80-C0iF653..4AT..(MID,STD)..IDN201901-202012

BLACK,TRIM4#

main58510-BZJ90-C0iF65#..5F..(MID,STD)..IDN201901-202012

BLACK,TRIM4#

main58510-BZJ91-C0iF65#..5F..(MID,STD)..IDN202012-202111

BLACK,TRIM4#

main58510-BZP40-C0iF65#..4AT..SPO..IDN201901-202012

BLACK,TRIM1#

main58510-BZP41-C0iF65#..4AT..SPO..IDN202012-202110

BLACK,TRIM1#

main58510-BZP50-C0iF65#..5F..SPO201901-202012

BLACK,TRIM1#

main58510-BZP51-C0iF65#..5F..SPO202012-202110

BLACK,TRIM1#

main58510-BZQ50-C0iF654..4AT..SA201904-202201

BLACK,TRIM1#

main58510-BZQ60-C0iF653..VB201904-202201

BLACK,TRIM1#

main58510-BZQ70-C0iF65#..5F..(LO,MID,STD)..SA201904-202201

BLACK,TRIM1#

main58510-BZR20-C0iF653..5F..GEN201904

BLACK,TRIM1#

main58510-BZR30-C0iF654..5F..GCC;F654..4AT..STD..GCC201904-202201

BLACK,TRIM1#,4#

main58510-BZR30-C0iF654..4AT..MID..PHL201904-202201

BLACK,TRIM4#

main58510-BZR30-C0iF654..4AT..MID..PHL201904-202201

BLACK,TRIM1#

main58510-BZR40-C0iF654..MXC201904

BLACK,TRIM4#

main58510-BZR40-C0iF65#..4AT..MID..(GCC,GEN)201904

BLACK,TRIM1#

main58510-BZR50-C0iF653..LO..PHL201904-202201

BLACK,TRIM1#

main58510-BZY50-C0iF653..4AT..STD..IDN202012-202111

BLACK,TRIM1#,4#

main58510-BZY50-C0iF653..4AT..MID..IDN202012-202110

BLACK,TRIM4#

main58510-BZY60-C0iF653..5F..IDN202111

BLACK,TRIM1#

58519CCARPET, REAR WHEEL HOUSE, RH

main58580-BZ090-C0iF653..4AT..IDN202111

BLACK,TRIM1#,4#

main58580-BZ090-C0iF653..5F..IDN202111

BLACK,TRIM1#

main58580-BZ090-C0iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201508

BLACK,TRIM1#

main58580-BZ090-C0iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

BLACK,TRIM1#

main58580-BZ090-C0iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

MEXICO VAN,BLACK,TRIM1#

main58580-BZ090-C0iF653..VB;F653..LHD..LO;F653..STD..GEN201904

BLACK,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main9004A-46131-B0iF652..MXC;F651..LHD..(LO,STD)201112-201508

DK.GRAY,TRIM1#

main9004A-46131-B0iF65#..(MID,STD)..IDN201111-201507

DK.GRAY,TRIM4#

main9004A-46131-B0iF65#..(MID,STD)..IDN201111-201507

DK.GRAY,TRIM1#

main9004A-46131-B0iF651,652..MA,SA,TH201111-201508

DK.GRAY,TRIM1#

main9004A-46131-B0iF652..MXC;F651..LHD..(LO,STD)201112-201508

DK.GRAY,TRIM4#

main9004A-46131-B0iF653,654..(MID,STD)..IDN201507-201804

DK.GRAY,TRIM4#

main9004A-46131-B0iF653,654..(MID,STD)..IDN201507-201804

DK.GRAY,TRIM1#

main9004A-46131-B0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-201804

DK.GRAY,TRIM4#

main9004A-46131-B0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-201804

DK.GRAY,TRIM1#

main9004A-46131-C1iF653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)201804-201904

BLACK,TRIM1#

main9004A-46131-C1iF653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)201804-201904

BLACK,TRIM4#

main9004A-46131-C1iF65#..(MID,STD)..IDN201804-201901

BLACK,TRIM4#

main9004A-46131-C1iF653..4AT..STD..IDN201901-202012

BLACK,TRIM4#

main9004A-46131-C1iF653..4AT..STD..IDN201901-202012

INDONESIA TAXI,BLACK,TRIM1#,4#

main9004A-46131-C1iF65#..MID..IDN;F653..5F..STD..IDN201901-202111

BLACK,TRIM4#

main9004A-46131-C1iF653..4AT..STD..IDN202012-202111

BLACK,TRIM1#,4#

main9004A-46131-C1iF653..4AT..STD..IDN202012-202111

INDONESIA TAXI,BLACK,TRIM1#

main9004A-46131-C1iF653..4AT..STD..IDN202012-202111

RIDE SHARE PACK,BLACK,TRIM1#

main9004A-46131-C1iF654..4AT..MID..PHL201904-202201

BLACK,TRIM1#,4#

main9004A-46131-C1iF653..SA;F653..SPO;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(IDN,MA,SA)201901

BLACK,TRIM1#

main9004A-46131-C1iF654..GCC;F65#..MID..GEN201904

BLACK,TRIM4#

main9004A-46131-C1iF654..GCC;F65#..MID..GEN201904

BLACK,TRIM1#

main9004A-46131-C1iF653..IDN202111

BLACK,TRIM1#

58529CCARPET, REAR WHEEL HOUSE, LH

main58590-BZ070-C0iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

BLACK,TRIM1#

main58590-BZ070-C0iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

MEXICO VAN,BLACK,TRIM1#

main58590-BZ070-C0iF653..VB;F653..LHD..LO;F653..STD..GEN201904

BLACK,TRIM1#

main58590-BZ070-C0iF653..4AT..IDN202111

BLACK,TRIM1#

main58590-BZ070-C0iF653..4AT..IDN202111

BLACK,TRIM1#,4#

main58590-BZ070-C0iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201508

BLACK,TRIM1#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90044-67298-B0iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)201901

LT.GRAY

main90467-07049-C0iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

BLACK

sub90467-07049¥90

main90467-07049-C0iF65#..IDN201111-201507

BLACK

sub90467-07049¥90

58558EFASTENER, PILE

main58558-87209iF65#..(MID,SPO)..IDN201901-202110

main58558-87209iF654..4AT..STD..TH;F653..(LO,STD)..(GEN,IDN,PHL,SA);F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main58558-87209iF65#..IDN201111-201507

main58558-87209iF651,652..(LO,MID,SPO,STD)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main58558-87209iF653,654..LO,MID,SPO,STD201507-201904

58558FFASTENER, PILE, UPR

main58558-87502-B2iF653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201507-201904

DK.GRAY,TRIM4#

sub58558-87502¥130

main58558-87502-B2iF65#..(MID,STD)..IDN201111-201507

DK.GRAY,TRIM4#

sub58558-87502¥130

main58558-87502-B2iF65#..(MID,STD)..IDN201111-201507

DK.GRAY,TRIM1#

sub58558-87502¥130

main58558-87502-B2iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

DK.GRAY,TRIM4#

sub58558-87502¥130

main58558-87502-B2iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

DK.GRAY,TRIM1#

sub58558-87502¥130

main58558-87502-B2iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM1#

sub58558-87502¥130

main58558-87502-B2iF65#..SPO..IDN201901-202110

DK.GRAY,TRIM1#

sub58558-87502¥130

main58558-87502-B2iF65#..SPO..IDN201901-202110

DK.GRAY,TRIM4#

sub58558-87502¥130

main58558-87502-B2iF654..GCC;F65#..MID..GEN201901

DK.GRAY,TRIM4#

sub58558-87502¥130

main58558-87502-B2iF654..GCC;F65#..MID..GEN201901

DK.GRAY,TRIM1#

sub58558-87502¥130

main58558-87502-B2iF654..GCC;F65#..MID..GEN201901

DK.GRAY,TRIM1#,4#

sub58558-87502¥130

58564HCLIP(FOR REAR FLOOR CARPET)

main9004A-53002iF65#..(MID,SPO)..IDN¥110201901-202110

main9004A-53002iF653,654¥110201507-201904

main9004A-53002iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥110201111-201508

main9004A-53002iF65#..IDN¥110201111-201507

main9004A-53002iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥110201901

58570CCARPET ASSY, REAR FLOOR

main58570-BZ190-C1iF651..LHD..LO201112-201305

-,TRIM1#

sub58570-BZ191

main58570-BZ191-C1iF651..LO..PHL201305-201508

BLACK,TRIM1#

main58570-BZ200-C1iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

-,TRIM1#

main58570-BZ200-C1iF651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH)201111-201508

-,TRIM4#

main58570-BZ200-C1iF65#..(MID,STD)..IDN201111-201507

-,TRIM4#

main58570-BZ200-C1iF65#..(MID,STD)..IDN201111-201507

-,TRIM1#

main58570-BZ260-C1iF651..LO..GEN201305-201508

-,TRIM1#

main58570-BZ260-C1iF651..STD..GEN201112-201508

-,TRIM1#

main58570-BZ300-C0iF65#..5F..GEN201508-201904

DK.GRAY,TRIM1#

main58570-BZ310-C0iF653..LO..PHL201508-201904

DK.GRAY,TRIM1#

main58570-BZ320-C0iF653..SPO;F653..STD..PHL;F653..(LO,STD)..(MA,SA);F654..MID..(MA,MXC,SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,SA,TH)201507-201904

DK.GRAY,TRIM4#

main58570-BZ320-C0iF653..SPO;F653..STD..PHL;F653..(LO,STD)..(MA,SA);F654..MID..(MA,MXC,SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,SA,TH)201507-201904

DK.GRAY,TRIM1#

main58570-BZ380-C0iF653..5F..IDN202111

DK.GRAY,TRIM1#,4#

main58570-BZ380-C0iF653..5F..IDN202111

DK.GRAY,TRIM1#

main58570-BZ380-C0iF653..5F..GEN201904

DK.GRAY,TRIM1#

main58570-BZ390-C0iF653..LO..PHL201904-202201

DK.GRAY,TRIM1#

main58570-BZ400-C0iF65#..MID..IDN201901-202110

DK.GRAY,TRIM4#

main58570-BZ400-C0iF65#..SPO..IDN201901-202110

DK.GRAY,TRIM1#

main58570-BZ400-C0iF653..4AT..STD..IDN201901-202111

DK.GRAY,TRIM1#,4#

main58570-BZ400-C0iF653..4AT..STD..IDN201901-202111

DK.GRAY,TRIM4#

main58570-BZ400-C0iF654..4AT..MID..PHL201901-202201

DK.GRAY,TRIM1#,4#

main58570-BZ400-C0iF654..GCC;F65#..MID..GEN201901

DK.GRAY,TRIM4#

main58570-BZ400-C0iF654..GCC;F65#..MID..GEN201901

DK.GRAY,TRIM1#

58694APLATE, MAT SET, UPPER

main58694-BZ010iF65#..IDN201111-201507

main58694-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

58698BPLATE, MAT SET, LOWER

main58698-BZ010iF65#..IDN201111-201507

main58698-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

62613KCLIP (FOR QUARTER WHEEL HOUSE COVER)

main9004A-46132-B0iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201804

DK.GRAY,TRIM1#

main9004A-46132-B0iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201804

MEXICO VAN,DK.GRAY,TRIM1#

main9004A-46132-B0iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201508

DK.GRAY,TRIM1#

main9004A-46132-C0iF653..5F..IDN202111

BLACK,TRIM1#,4#

main9004A-46132-C0iF653..4AT..IDN202111

BLACK,TRIM1#

main9004A-46132-C0iF653..VB;F653..LHD..LO;F65#..STD..GEN201804-201904

BLACK,TRIM1#

main9004A-46132-C0iF653..VB;F653..LHD..LO;F65#..STD..GEN201804-201904

MEXICO VAN,BLACK,TRIM1#

main9004A-46132-C0iF653..VB;F653..LHD..LO;F653..STD..GEN201904

BLACK,TRIM1#

67913ACLIP(FOR SCUFF PLATE)

main9004A-46275iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥110201901

main9004A-46275iF65#..IDN¥110201111-201507

main9004A-46275iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥110201111-201508

main9004A-46275iF653,654¥110201507-201904

main9004A-46275iF65#..(MID,SPO)..IDN¥110201901-202110

67935PLATE, BACK DOOR SCUFF

main67935-BZ060-B0iF653..VB;F653..LHD..LO;F65#..STD..GEN201508-201904

DK.GRAY,TRIM1#

main67935-BZ060-B0iF653..IDN202111

DK.GRAY,TRIM1#

main67935-BZ060-B0iF651..VB;F651..5F..GEN;F651..LO..PHL201111-201508

DK.GRAY,TRIM1#

main67935-BZ060-B0iF653..VB;F653..LHD..LO;F653..STD..GEN201904

DK.GRAY,TRIM1#

main67935-BZ060-B0iF654..5F..MXC201508-201904

MEXICO VAN,DK.GRAY,TRIM1#

main67935-BZ060-E1iF653..5F..IDN202111

LINEN BEIGE,TRIM4#

main67935-BZ070-B0iF652..SPO..IDN201111-201507

DK.GRAY,TRIM1#

main67935-BZ070-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

main67935-BZ070-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM1#

main67935-BZ070-B0iF65#..SPO..IDN201901-202110

DK.GRAY,TRIM1#

main67935-BZ070-B0iF653..4AT..STD..IDN201901-202111

DK.GRAY,TRIM1#

main67935-BZ070-B0iF653..STD..PHL;F653..(LO,STD)..SA;F654..4AT..STD..TH;F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

DK.GRAY,TRIM1#

main67935-BZ070-B0iF651..STD..PHL;F651,652..(LO,MID,SPO,STD)..(MA,MXC,SA,TH)201111-201508

DK.GRAY,TRIM1#

main67935-BZ070-E0iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

-,TRIM4#

main67935-BZ070-E0iF65#..(MID,STD)..IDN201111-201507

-,TRIM4#

main67935-BZ070-E1iF65#..MID..IDN201901-202110

LINEN BEIGE,TRIM4#

main67935-BZ070-E1iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201901

LINEN BEIGE,TRIM4#

main67935-BZ070-E1iF653..STD..IDN201901-202111

LINEN BEIGE,TRIM4#

67772BZ010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-BZ010

15 parts on this diagram · 7 diagrams in section
