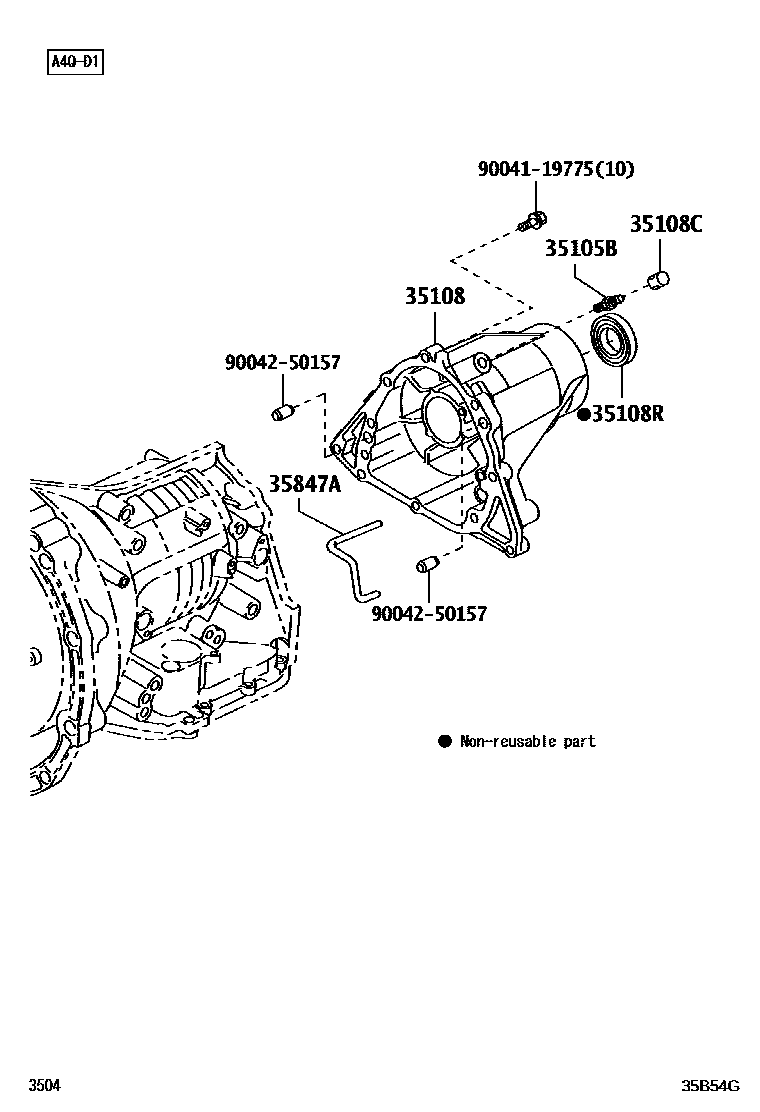

Toyota AVANZA — EXTENSION HOUSING (ATM)

0001 1A4Q-D1 0002 1

35105BPLUG, BREATHER

main90049-15048iF65#..4AT..IDN¥400201111-201508

main90049-15054iF653,654..4AT¥530201507-202110

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-B0011iF65#..4AT..IDN¥24,700201111-201508

main35108-B1010iF653,654..4AT201507-202110

35108CPLUG (FOR AUTOMATIC EXTENSION HOUSING)

main35120-B0010iF653,654..4AT201507-201711

main35120-B0020iF65#..4AT¥330201712-202110

main90049-15050iF65#..4AT..IDN¥140201111-201508

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90043-11285iF65#..4AT..IDN¥330201111-202110

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-97501iF65#..4AT..IDN¥510201111-201508

9004119775

main90041-19775¥140

9004250157

main90042-50157¥260

7 parts on this diagram · 2 diagrams in section
