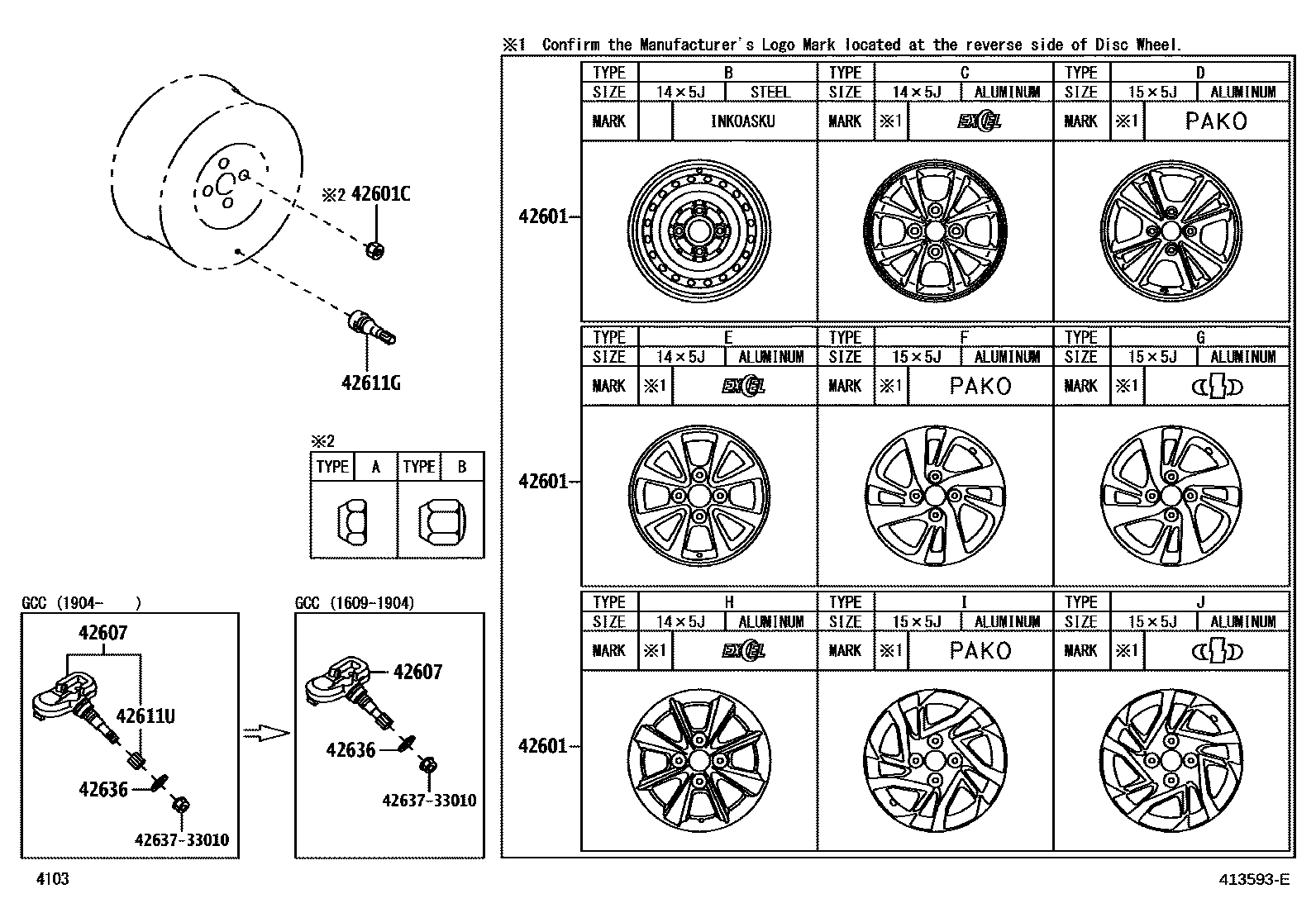

Toyota AVANZA — DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1SPARE 0004 1SPARE 0005 1 0006 1

42601WHEEL, DISC

main42611-BZ510iF653..VB;F653..LO..PHL201904

14X5J,SILVER,TYPE B SILVER

main42611-BZ510iF653..IDN202111

14X5J,SILVER,TYPE B SILVER

main42611-BZ510iF653..VB;F653..LO..PHL201508-201904

14X5J,SILVER,TYPE B SILVER

main42611-BZ510iF651..VB;F651..LO..PHL201111-201508

14X5J,SILVER,TYPE B INKOASKU

main42611-BZ520iF653..LO..GEN;F654..4AT..(MXC,SA);F65#..5F..(LO,STD)..SA201901

14X5J,TYPE B BLACK

main42611-BZ520iF654..5F..MXC201901-202201

14X5J,TYPE B BLACK

main42611-BZ520iF652..MXC;F651..LO..GEN;F652..STD..(GCC,SA);F651..(LO,STD)..(MA,SA)201111-201508

14X5J,TYPE B INKOASKU

main42611-BZ520iF654..STD..GCC201507-201609

14X5J,TYPE B BLACK

main42611-BZ520iF653..STD..(IDN,MA)201507-201901

14X5J,TYPE B BLACK

main42611-BZ520iF654..4AT..(MXC,SA);F653,654..5F..(LO,STD)..SA;F653,654..5F..(LO,MID)..(GEN,MXC)201507-201904

14X5J,TYPE B BLACK

main42611-BZ520iF651..STD..IDN201111-201507

14X5J,TYPE B INKOASKU

main42611-BZ520iF653..STD..IDN201901-202111

14X5J,TYPE B BLACK

main42611-BZ530iF651..MID..IDN201111-201507

14X5J,TYPE C EXCEL

main42611-BZ530iF652..STD..MA;F651..LHD..(MID,STD)201111-201508

14X5J,TYPE C EXCEL

main42611-BZ540iF652..IDN201111-201507

15X5J,TYPE D PAKO

main42611-BZ540iF652..STD..TH;F652..(MID,SPO)..(GCC,GEN,MA,PHL,SA,TH)201111-201508

15X5J,TYPE D PAKO

main42611-BZ710iF653..MID;F653..LHD..STD;F654..STD..(GEN,MA)201507-201608

14X5J(AL),TYPE E

sub42611-BZ711

main42611-BZ711iF653..MID;F653..LHD..STD;F654..STD..(GCC,GEN,MA)201609-201804

14X5J(AL),TYPE E

sub42611-BZ712

main42611-BZ712iF653..LHD..(MID,STD);F654..STD..(GCC,GEN,MA)201805-201904

14X5J(AL),TYPE E

main42611-BZ712iF653..MID..IDN201805-201901

14X5J(AL),TYPE E

main42611-BZ720iF653..SPO;F654..MID..IDN201507-201901

15X5J(AL),TYPE F

main42611-BZ730iF654..MID..TH;F654..(SPO,STD)..(IDN,TH);F654..(MID,SPO)..(GCC,GEN,MA,PHL,SA)201507-201608

15X5J(AL),TYPE G

sub42611-BZ731

main42611-BZ731iF654..4AT..STD..TH;F654..SPO..(MA,PHL);F654..MID..(GCC,GEN,PHL,SA,TH)201609-201904

15X5J(AL),TYPE G

main42611-BZ731iF654..MID..MA;F654..4AT..SPO..(IDN,TH);F654..5F..(SPO,STD)..(IDN,TH)201609-201901

15X5J(AL),TYPE G

main42611-BZC70iF654..LHD..STD;F653..LHD..(MID,STD)201901-202201

14X5J(AL),TYPE H

main42611-BZC70iF653..MID..IDN201901-202110

14X5J(AL),TYPE H

main42611-BZC80iF654..STD..MA201901

15X5J(AL),TYPE I SILVER

main42611-BZC80iF653..SPO;F654..MID..IDN201901-202110

15X5J(AL),TYPE I SILVER

main42611-BZC80iF654..MXC202201

15X5J(AL),TYPE I SILVER

main42611-BZC90iF654..SPO..IDN201901-202110

15X5J(AL),TYPE J

main42611-BZC90iF654..4AT..STD..TH;F654..SPO..(MA,PHL);F654..MID..(GCC,GEN,PHL,SA,TH)201901

15X5J(AL),TYPE J

42601CNUT, HUB (FOR AXLE)

main90049-11036iF654..MXC;F653..LO..GEN;F654..STD..(GCC,SA);F653..RHD..(LO,STD)¥200201507-201605

TYPE A

main90049-11036iF652..MXC;F651..LO..GEN;F652..STD..(GCC,SA);F651..(LO,STD)..(MA,SA)¥200201111-201508

TYPE A

main90049-11036iF651..STD..IDN¥200201111-201507

TYPE A

main90049-11064iF651..LO..PHL;F651..LHD..STD;F652..GEN,MA,PHL,TH;F652..MID..(GCC,SA);F651..(MID,VB)..(GEN,SA)¥440201111-201508

TYPE B

main90049-11064iF65#..(MID,SPO)..IDN¥440201111-201507

TYPE B

main90049-11064iF653..PHL;F653..STD..GEN;F653..MID,SPO,VB;F654..MID..(GCC,SA);F654..GEN,IDN,MA,PHL,TH¥440201507-201510

TYPE B

main9004A-94124iF653..PHL;F653..STD..GEN;F654..4AT..STD..TH;F654..(SPO,STD)..(GEN,MA,PHL);F65#..(MID,VB)..(GCC,GEN,PHL,SA,TH)201510-201904

TYPE B

main9004A-94124iF654..STD..GCC201609-201904

TYPE B

main9004A-94124iF653..PHL;F653..STD..GEN;F654..4AT..STD..TH;F654..(SPO,STD)..(GCC,GEN,MA,PHL);F65#..(MID,VB)..(GCC,GEN,PHL,SA,TH)201901

TYPE B

main9004A-94124iF654..STD..GCC201609-201904

MEXICO LUXURY,TYPE B

main9004A-94124iF653..IDN202111

TYPE B

main9004A-94124iF654..MID..MA;F654..5F..(IDN,TH);F653..(MID,SPO)..IDN;F654..4AT..SPO..(IDN,TH)201510-201901

TYPE B

main9004A-94124iF654..MXC202201

TYPE B

main9004A-94124iF65#..(MID,SPO)..IDN201901-202110

TYPE B

main9004A-94125iF653..STD..(IDN,MA)201605-201901

TYPE A

main9004A-94125iF654..4AT..(MXC,SA);F65#..5F..(LO,STD)..SA;F65#..5F..(LO,MID)..(GEN,MXC)201605-201904

TYPE A

main9004A-94125iF653..STD..IDN201901-202111

TYPE A

main9004A-94125iF654..5F..MXC201901-202201

TYPE A

main9004A-94125iF653..LO..GEN;F654..4AT..(MXC,SA);F65#..5F..(LO,STD)..SA201901

TYPE A

main9004A-94125iF654..STD..GCC201605-201609

TYPE A

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-42021iF654..GCC¥7,200201609-201904

main42607-42021iF654..GCC¥7,200201904-202201

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019iF65#..IDN¥450201111-201507

main90049-02019iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥450201111-201508

main90049-02019iF654..GCC¥450201507-201609

main90049-02019iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥450201507-201901

main90049-02019iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)¥450201507-201904

main90049-02019iF65#..(MID,SPO)..IDN¥450201901-202110

main90049-02019iF654..4AT..STD..TH;F65#..MID..(GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA)¥450201901

42611UCAP, TIRE VALVE

main90942-05039iF654..GCC¥90201904-202201

42636WASHER, TIRE VALVE

main42636-33010iF654..GCC¥60201609-201904

main42636-33010iF654..GCC¥60201904-202201

4263733010NUT, YIRE TUBE

main42637-33010¥140

7 parts on this diagram · 6 diagrams in section
