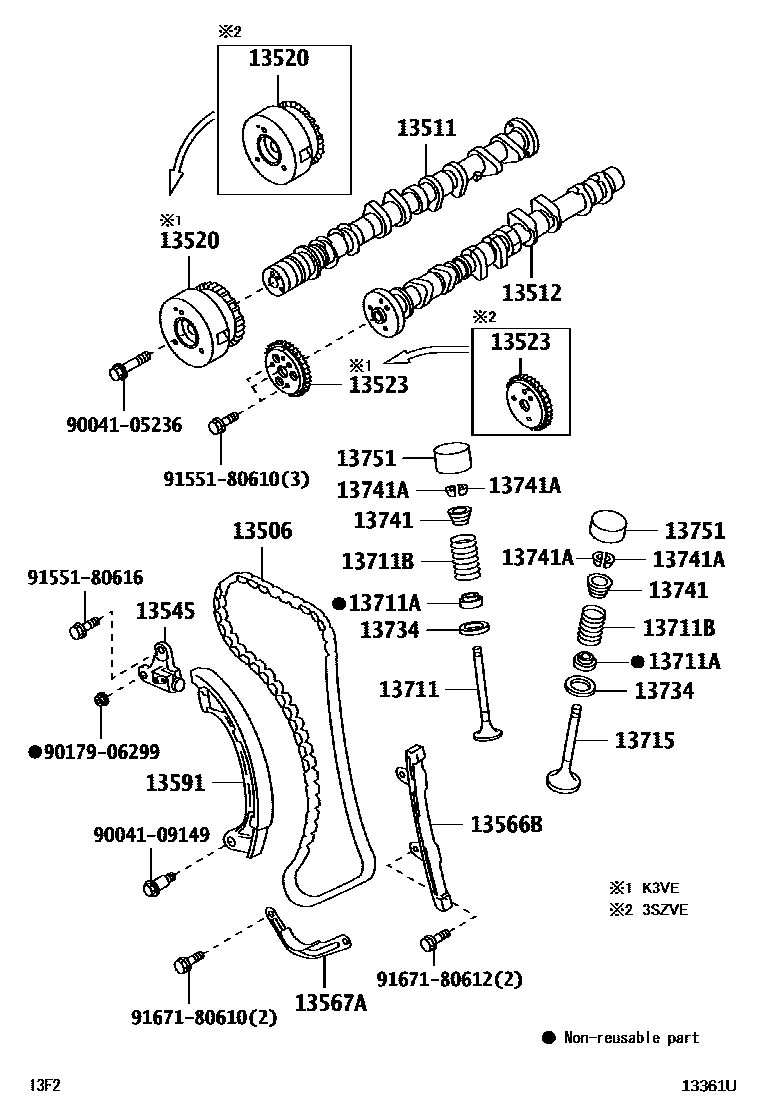

Toyota AVANZA — CAMSHAFT & VALVE

0001 1 0002 1

13506CHAIN SUB-ASSY

main13506-0Y040i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥10,400201507-202110

main13506-97401iK3VE..F651..GEN,MA,PHL,SA¥5,300201111-201508

main13506-BZ020i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

sub13506-BZ021¥5,300

13511CAMSHAFT

main13501-97401iK3VE..F651..IDN¥23,300201111-201508

JAPAN SOURCED PARTS

main13501-B1020i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH¥18,600201111-201508

JAPAN SOURCED PARTS

main13501-BZ010iK3VE..F651..IDN201111-201508

LOCAL SOURCED PARTS

main13501-BZ020i3SZVE..F652..IDN201111-201508

LOCAL SOURCED PARTS

main13501-BZ040i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

13512CAMSHAFT, NO.2

main13502-97401iK3VE,3SZVE..F65#..IDN¥18,400201111-201508

JAPAN SOURCED PARTS

main13502-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

LOCAL SOURCED PARTS

sub13502-97401¥18,400

main13502-BZ030i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-202110

13520SPROCKET ASSY, CAMSHAFT TIMING

main13520-BZ030i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

sub13520-B1020¥10,000

main13520-BZ050iK3VE..F651..IDN201111-201508

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-97401iK3VE..F651..GEN,MA,PHL,SA¥3,510201111-201508

main13523-BZ040i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH¥6,000201111-201508

13545PLUNGER, CHAIN TENSIONER

main13545-97401iK3VE..F651¥3,760201111-201311

main13545-BZ011i3SZVE..F652..IDN¥2,610201111-201508

main13545-BZ040iK3VE..F651..IDN201312-201508

13566BGUIDE, TIMING CHAIN

main13566-0Y010i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥1,120201507-202110

main13566-97401iK3VE..F651¥2,120201111-201311

main13566-BZ010i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main13566-BZ060iK3VE..F651..GEN,MA,PHL,SA201312-201508

13567AGUIDE, TIMING CHAIN, NO.2

main13567-BZ010iK3VE..F651..IDN201111-201508

main13567-BZ020i3SZVE..F652..IDN201111-201508

sub13567-23030¥480

13591ARM, TIMING CHAIN TENSION

main13591-0Y010i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥2,690201507-202110

main13591-97401iK3VE..F651¥3,450201111-201311

main13591-BZ010i3SZVE..F652..IDN201111-201508

main13591-BZ060iK3VE..F651..GEN,MA,PHL,SA201312-201508

13711VALVE, INTAKE

main13711-0Y020i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥1,410201507-202110

main13711-BZ060iK3VE,3SZVE..F65#..IDN201111-201508

sub13711-BZ061

main13711-BZ070i3SZVE..F652..TH201111-201508

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main9004A-31023iK3VE,3SZVE..F65#..IDN201111-201508

13711BSPRING, COMPRESSION(FOR INNER)

main9004A-50087iK3VE,3SZVE..F65#..IDN¥180201111-201508

main90501-T0045i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

13715VALVE, EXHAUST

main13715-0Y020i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

main13715-BZ060iK3VE,3SZVE..F65#..IDN201111-201508

13734SEAT, VALVE SPRING

main13734-0C010i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥90201507-202110

main13734-87206iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥150201111-201508

13741RETAINER, VALVE SPRING

main13741-0Y010i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥250201507-202110

main13741-97401iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥280201111-201508

13741ALOCK, VALVE SPRING RETAINER

main90048-13013iK3VE,3SZVE..F65#..IDN¥110201111-201508

main90913-03028i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥270201507-202110

13751LIFTER, VALVE

main13751-BZ030iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.12

sub13751-BZ340¥1,350

main13751-BZ040iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.14

sub13751-BZ350¥1,350

main13751-BZ050iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.16

sub13751-BZ360¥1,350

main13751-BZ060iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.18

sub13751-BZ370

main13751-BZ070iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.20

sub13751-BZ380

main13751-BZ080iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.22

sub13751-BZ390

main13751-BZ090iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.24

sub13751-BZ400

main13751-BZ100iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.26

sub13751-BZ410

main13751-BZ110iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.28

sub13751-BZ420

main13751-BZ120iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.30

sub13751-BZ430

main13751-BZ130iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.32

sub13751-BZ440

main13751-BZ140iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.34

sub13751-BZ450¥1,350

main13751-BZ150iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.36

sub13751-BZ460

main13751-BZ160iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.38

sub13751-BZ470

main13751-BZ170iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.40

sub13751-BZ480

main13751-BZ180iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.42

sub13751-BZ490¥1,350

main13751-BZ190iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.44

sub13751-BZ500

main13751-BZ200iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.46

sub13751-BZ510¥1,350

main13751-BZ210iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.48

sub13751-BZ520¥1,350

main13751-BZ220iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.50

sub13751-BZ530¥1,350

main13751-BZ230iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.52

sub13751-BZ540¥1,350

main13751-BZ240iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.54

sub13751-BZ550

main13751-BZ250iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.56

sub13751-BZ560

main13751-BZ260iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.58

sub13751-BZ570

main13751-BZ270iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.60

sub13751-BZ580

main13751-BZ280iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.62

sub13751-BZ590

main13751-BZ290iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.64

sub13751-BZ600

main13751-BZ300iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,350201111-201508

T=5.66

sub13751-BZ610

main13751-BZ310iK3VE,3SZVE..F65#..IDN¥1,350201111-201508

T=5.68

sub13751-BZ620

9004105236

main90041-05236¥320

9004109149

main90041-09149¥170

9017906299

main90179-06299¥70

9155180610

main91551-80610¥60

9155180616

main91551-80616¥60

9167180610

main91671-80610¥60

9167180612

main91671-80612¥60

24 parts on this diagram · 2 diagrams in section
