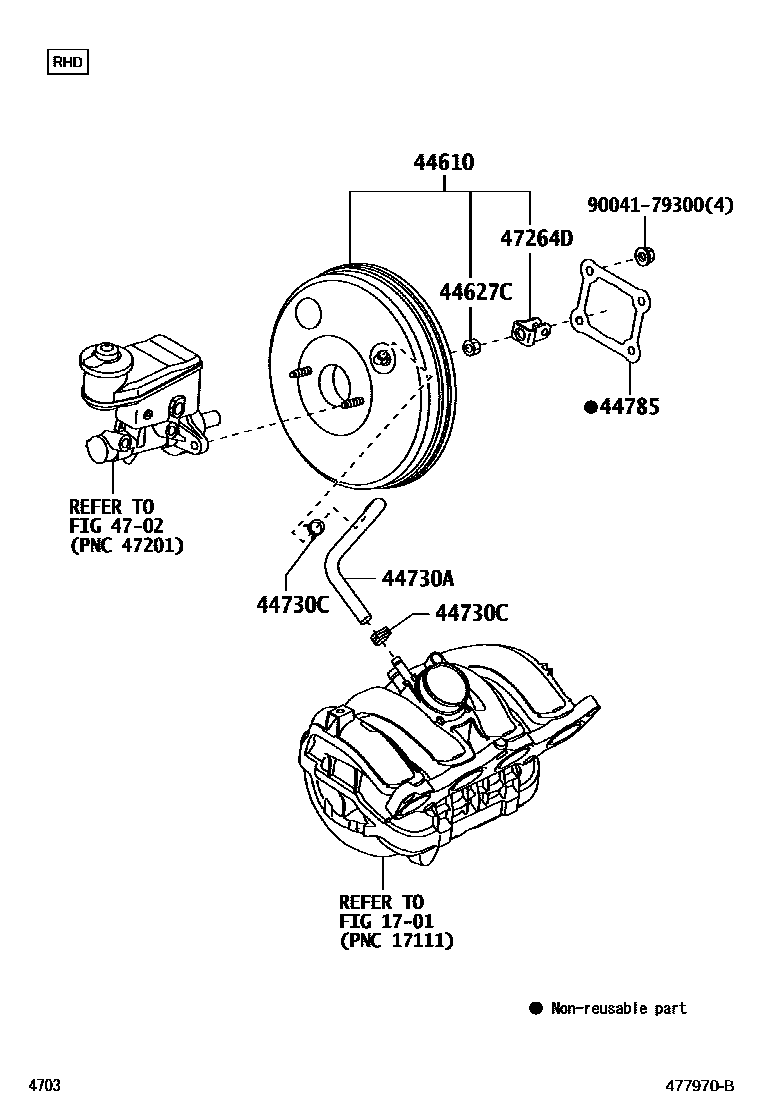

Toyota AVANZA — BRAKE BOOSTER & VACUUM TUBE

0001 1RHD 0002 1RHD 0003 1LHD 0004 1LHD

1701

44610BOOSTER ASSY, BRAKE

main44610-BZ230iF65#..IDN201111-201507

main44610-BZ230iF651,652..MA,SA,TH201111-201508

main44610-BZ250iF651,652..LHD201112-201508

main44610-BZ510iF65#..5F..(MID,SPO)..IDN201901-202110

main44610-BZ510iF653,654..5F..(IDN,MA,TH)201507-201901

main44610-BZ510iF654..5F..SA;F653..5F..(LO,STD,VB)..(IDN,SA)201901

main44610-BZ510iF653,654..5F..SA201507-201904

main44610-BZ520iF65#..LHD..5F201508-201904

main44610-BZ520iF65#..LHD..5F201904

main44610-BZ590iF654..4AT..(MID,STD)..TH;F654..4AT..(SPO,STD)..(MA,SA)201507-201904

main44610-BZ590iF65#..4AT..(MID,SPO)..IDN201901-202110

main44610-BZ590iF654..MID..MA;F653..4AT..IDN;F654..4AT..SPO..(IDN,TH)201507-201901

main44610-BZ590iF653..4AT..STD..IDN;F654..4AT..(MID,STD)..TH;F654..4AT..(SPO,STD)..(MA,SA)201901

main44610-BZ600iF65#..LHD..4AT201904

main44610-BZ600iF65#..LHD..4AT201508-201904

44627CNUT, BOOSTER SLEEVE CYLINDER

main9004A-17214iF65#..IDN201111-201507

sub9004A-17229

main9004A-17214iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

sub9004A-17229

main9004A-17229iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main9004A-17229iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main9004A-17229iF65#..(MID,SPO)..IDN201901-202110

main9004A-17229iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

44730AHOSE, VACUUM, NO.1

main44750-B0080iF65#..IDN201111-201507

main44750-B0080iF651,652..MA,SA,TH201111-201508

main44750-B0090iF651,652..LHD201112-201508

main44750-BZ250iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main44750-BZ250iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

main44750-BZ250iF65#..(MID,SPO)..IDN201901-202110

main44750-BZ250iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901

main44750-BZ260iF65#..LHD201508-201904

main44750-BZ260iF65#..LHD201904

44730CCLIP(FOR VACUUM HOSE)

main90044-67161iF65#..IDN¥140201111-201507

main90044-67161iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥140201111-201508

main90044-67161iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥140201507-201901

main90044-67161iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥140201507-201904

main90044-67161iF65#..(MID,SPO)..IDN¥140201901-202110

main90044-67161iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥140201901

44785GASKET, BRAKE BOOSTER

main47275-BZ010iF65#..IDN¥430201111-201507

sub47278-87703¥460

main47275-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥430201111-201508

sub47278-87703¥460

main47275-BZ010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥430201507-201901

sub47278-87703¥460

main47275-BZ010iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥430201507-201904

sub47278-87703¥460

main47275-BZ010iF65#..(MID,SPO)..IDN¥430201901-202110

sub47278-87703¥460

main47275-BZ010iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥430201901

sub47278-87703¥460

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ010iF65#..IDN201111-201507

main47264-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main47264-BZ120iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main47264-BZ120iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main47264-BZ120iF65#..(MID,SPO)..IDN201901-202110

main47264-BZ120iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

9004179300

main90041-79300¥120

9 parts on this diagram · 4 diagrams in section
