Toyota AVANZA — ARMREST & VISOR

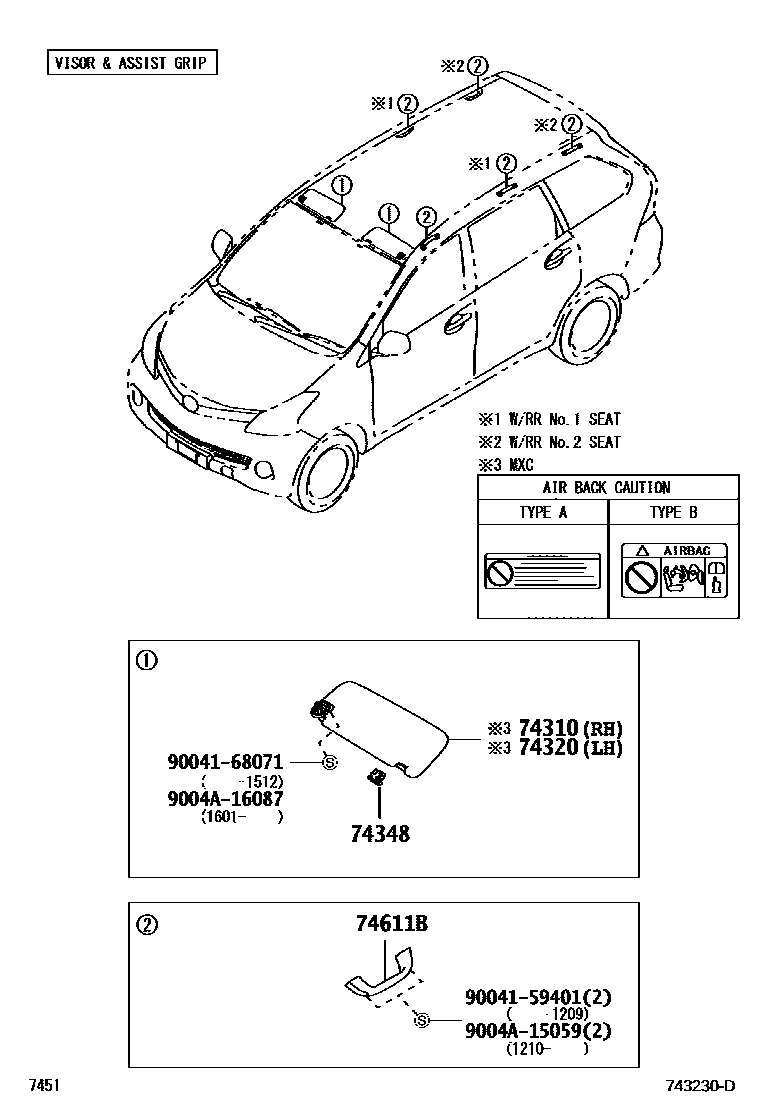

0001 1VISOR & ASSIST GRIP 0002 1ARMREST(RHD) 0003 1ARMREST(LHD)

74310VISOR ASSY, RH

main74310-BZ510iF653..(LO,VB)..SA202109-202201

main74310-BZ510-B0iF651..MA201111-201207

LT.GRAY,TRIM1#,L/CAUTION LABEL

main74310-BZ510-B0iF652..STD..TH;F65#..(LO,SPO)..(IDN,PHL)201111-201305

LT.GRAY,TRIM1#,L/CAUTION LABEL

main74310-BZ510-B0iF652..STD..TH;F65#..(LO,SPO)..(IDN,PHL)201111-201305

LT.GRAY,TRIM4#,L/CAUTION LABEL

main74310-BZ510-B0iF65#..MID..IDN201901-202110

LT.GRAY,TRIM4#

main74310-BZ510-B0iF653..STD..SA;F654..(SPO,STD)..(MA,SA);F654..4AT..(MID,STD)..TH201901-202201

LT.GRAY,TRIM1#

main74310-BZ510-B0iF653..(LO,VB)..SA201901-202109

LT.GRAY,TRIM1#

main74310-BZ510-B0iF653..(LO,VB)..SA201901-202109

LT.GRAY,TRIM1#,4#

main74310-BZ510-B0iF651..LO..GEN201111-201508

LT.GRAY,TRIM1#,L/CAUTION LABEL

main74310-BZ510-B0iF651..STD..GEN201112-201508

LT.GRAY,TRIM1#

main74310-BZ510-B0iF651..STD..GEN201112-201508

LT.GRAY,TRIM4#

main74310-BZ510-B0iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM1#

main74310-BZ510-B0iF651..LO..PHL201305-201508

LT.GRAY,TRIM1#

main74310-BZ510-B0iF653,654..(MID,STD)..IDN201507-201901

LT.GRAY,TRIM4#

main74310-BZ510-B0iF653..SPO;F653..MA,SA;F654..RHD..4AT..MID;F654..RHD..(SPO,STD)201507-201904

LT.GRAY,TRIM1#

main74310-BZ510-B1iF653..STD..IDN202109

LT.GRAY,TRIM1#

main74310-BZ520-B0iF652..MXC;F651..STD..PHL201112-201508

LT.GRAY,TRIM4#

main74310-BZ520-B0iF654..MID..SA201904-202201

LT.GRAY,TRIM1#

main74310-BZ520-B0iF652..MXC;F651..STD..PHL201112-201508

LT.GRAY,TRIM1#

main74310-BZ520-B0iF654..MID..SA201508-201904

LT.GRAY,TRIM1#

main74310-BZ540-B0iF652..MID..SA201111-201508

LT.GRAY,TRIM1#

main74310-BZ570-B0iF652..MID..TH201111-201305

LT.GRAY,TRIM1#

main74310-BZ570-B0iF652..STD..MA201111-201207

LT.GRAY,TRIM1#

main74310-BZ590-B0iF651,652..STD..MA201207-201508

LT.GRAY,TRIM1#

main74310-BZ590-B0iF652..5F..TH;F652..MID..TH201305-201508

LT.GRAY,TRIM1#

main74310-BZ590-B0iF652..(MID,SPO)..MA;F652..4AT..(SPO,STD)..(SA,TH);F651,652..5F..(LO,STD,VB)..SA201111-201508

LT.GRAY,TRIM1#

main74310-BZ740iF653..LO..PHL;F654..STD..GEN;F653..(MID,STD)..GEN202109-202201

W/CAUTION LABEL

main74310-BZ740-B0iF653..LHD..LO;F65#..STD..GEN201508-201904

LT.GRAY,TRIM1#,W/CAUTION LABEL

main74310-BZ740-B0iF65#..(MID,STD)..IDN201305-201507

LT.GRAY,TRIM1#,W/CAUTION LABEL

main74310-BZ740-B0iF65#..(MID,STD)..IDN201305-201507

LT.GRAY,TRIM4#,W/CAUTION LABEL

main74310-BZ740-B0iF653..LHD..LO;F65#..STD..GEN201508-201904

LT.GRAY,TRIM4#,W/CAUTION LABEL

main74310-BZ740-B0iF653..LHD..LO;F65#..STD..GEN201904-202109

LT.GRAY,TRIM1#,W/CAUTION LABEL

main74310-BZ740-B0iF653..LHD..LO;F65#..STD..GEN201904-202109

LT.GRAY,TRIM4#,W/CAUTION LABEL

main74310-BZ740-B1iF653..LO..GEN202109

LT.GRAY,TRIM1#,W/CAUTION LABEL

main74310-BZ810iF65#..STD..(GCC,PHL)202109-202201

main74310-BZ810-B0iF654..MID..GCC201904-202201

LT.GRAY,TRIM1#

main74310-BZ810-B0iF654..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-201904

LT.GRAY,TRIM4#

main74310-BZ810-B0iF654..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-201904

LT.GRAY,TRIM1#

main74310-BZ810-B0iF653..STD..PHL201904-202109

LT.GRAY,TRIM1#

main74310-BZ810-B0iF653..STD..PHL201904-202109

LT.GRAY,TRIM4#

main74310-BZ810-B0iF654..MID..PHL201904-202201

LT.GRAY,TRIM1#,4#

main74310-BZ810-B0iF654..MID..PHL201904-202201

LT.GRAY,TRIM4#

main74310-BZ810-B1iF654..MID..GEN202109

LT.GRAY,TRIM4#

main74310-BZ820-B0iF654..MXC201904-202006

LT.GRAY,TRIM1#,TYPE A

main74310-BZ820-B0iF654..MXC201508-201904

LT.GRAY,TRIM1#

main74310-BZ840iF654..4AT..MXC202109-202201

TYPE B

main74310-BZ840-B0iF654..MXC202006-202109

LT.GRAY,TRIM1#,TYPE B

main74310-BZ840-B1iF654..5F..MXC202109

LT.GRAY,TRIM1#,TYPE B

74320VISOR ASSY, LH

main74320-BZ130-B0iF651,652..MA201207-201508

LT.GRAY,TRIM1#

main74320-BZ130-B0iF65#..MA201508-201904

LT.GRAY,TRIM1#

main74320-BZ130-B0iF654..MA201904-202201

LT.GRAY,TRIM1#

main74320-BZ410iF653..PHL;F654..LHD..STD;F653..(MID,STD)..GEN202109-202201

main74320-BZ410-B0iF65#..(LO,STD)..(GEN,PHL)201508-201904

LT.GRAY,TRIM4#

main74320-BZ410-B0iF651..STD..IDN201111-201305

LT.GRAY,TRIM4#,L/CAUTION LABEL

main74320-BZ410-B0iF651..LHD..LO201112-201305

LT.GRAY,TRIM1#,L/CAUTION LABEL

main74320-BZ410-B0iF651..STD..IDN201305-201507

LT.GRAY,TRIM4#

main74320-BZ410-B0iF651..(LO,VB)..SA201111-201508

LT.GRAY,TRIM1#

main74320-BZ410-B0iF65#..(LO,STD)..(GEN,PHL)201508-201904

LT.GRAY,TRIM1#

main74320-BZ410-B0iF65#..(LO,STD)..(GEN,PHL)201904-202109

LT.GRAY,TRIM1#

main74320-BZ410-B0iF65#..(LO,STD)..(GEN,PHL)201904-202109

LT.GRAY,TRIM4#

main74320-BZ410-B1iF654..MID..GEN202109

LT.GRAY,TRIM4#

main74320-BZ410-B1iF654..MID..GEN202109

LT.GRAY,TRIM1#

main74320-BZ420iF654..4AT..MXC202109-202201

L/AIR BAG CAUTION

main74320-BZ420-B0iF652..SPO..IDN201111-201507

LT.GRAY,TRIM4#

main74320-BZ420-B0iF652..SPO..IDN201111-201507

LT.GRAY,TRIM1#

main74320-BZ420-B0iF654..MXC202006-202109

LT.GRAY,TRIM1#,L/AIR BAG CAUTION

main74320-BZ420-B0iF654..SPO..PHL201904-202201

LT.GRAY,TRIM4#

main74320-BZ420-B0iF654..MID..(GCC,PHL)201508-201904

LT.GRAY,TRIM4#

main74320-BZ420-B0iF654..SPO..PHL201708-201904

LT.GRAY,TRIM1#

main74320-BZ420-B0iF651,652..(MID,SPO,STD)..(SA,TH)201111-201508

LT.GRAY,TRIM1#

main74320-BZ420-B0iF654..MID..GCC201904-202201

LT.GRAY,TRIM1#,4#

main74320-BZ420-B0iF654..MID..GCC201904-202201

LT.GRAY,TRIM1#

main74320-BZ420-B0iF65#..MA201111-201207

LT.GRAY,TRIM1#

main74320-BZ420-B1iF654..5F..MXC202109

LT.GRAY,TRIM1#,L/AIR BAG CAUTION

main74320-BZ440-B0iF652..MXC201112-201508

LT.GRAY,TRIM1#

main74320-BZ450-B0iF652..PHL201112-201508

LT.GRAY,TRIM4#

main74320-BZ480-B0iF651..LO..GEN201305-201508

LT.GRAY,TRIM1#,W/CAUTION LABEL

main74320-BZ480-B0iF651..STD..PHL201112-201305

LT.GRAY,TRIM1#

main74320-BZ500-B0iF651,652..MID..GEN201112-201508

LT.GRAY,TRIM1#

main74320-BZ500-B0iF651,652..MID..GEN201112-201508

LT.GRAY,TRIM4#

main74320-BZ500-B0iF651..PHL201305-201508

LT.GRAY,TRIM1#

main74320-BZ690iF653..(LO,VB)..SA202109-202201

main74320-BZ690-B0iF652..STD..GCC201404-201508

LT.GRAY,TRIM4#

main74320-BZ690-B0iF653..(LO,VB)..SA201904-202109

LT.GRAY,TRIM1#

main74320-BZ690-B0iF653..STD..IDN201901-202109

LT.GRAY,TRIM1#,4#

main74320-BZ690-B0iF653..STD..IDN201507-201901

LT.GRAY,TRIM4#

main74320-BZ690-B0iF653..(LO,VB)..SA201508-201904

LT.GRAY,TRIM1#

main74320-BZ690-B1iF653..STD..IDN202109

LT.GRAY,TRIM1#

main74320-BZ700-B0iF65#..MID..IDN201901-202110

LT.GRAY,TRIM4#

main74320-BZ700-B0iF653,654..MID..IDN201507-201901

LT.GRAY,TRIM4#

main74320-BZ700-B0iF653..SPO;F653..STD..SA;F654..MID..(SA,TH);F654..(SPO,STD)..(IDN,SA,TH)201507-201904

LT.GRAY,TRIM1#

main74320-BZ700-B0iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM1#

main74320-BZ700-B0iF652..MID..GCC201404-201508

LT.GRAY,TRIM4#

main74320-BZ700-B0iF65#..(MID,STD)..SA;F654..4AT..(MID,STD)..TH201901-202201

LT.GRAY,TRIM1#

main74320-BZ730-B0iF654..MXC201904-202006

LT.GRAY,TRIM1#,TYPE A

main74320-BZ730-B0iF654..MXC201508-201904

LT.GRAY,TRIM1#

74348HOLDER, VISOR

main74348-BZ060iF654..LHD..STD;F654..4AT..MXC;F653..LHD..(MID,STD);F653..(LO,VB)..(PHL,SA)¥340202109-202201

main74348-BZ060-B0iF653..STD..IDN;F65#..5F..(LO,MID)..(GEN,MXC)202109

LT.GRAY,TRIM1#

main74348-BZ060-B0iF654..MID..GEN202109

LT.GRAY,TRIM4#

main74348-BZ060-B1iF654..MID..GCC201901-202201

LT.GRAY,TRIM4#

main74348-BZ060-B1iF654..MID..GCC201901-202201

LT.GRAY,TRIM1#,4#

main74348-BZ060-B1iF654..MID..GCC201901-202201

LT.GRAY,TRIM1#

main74348-BZ060-B1iF65#..(MID,STD)..IDN201111-201507

LT.GRAY,TRIM4#

main74348-BZ060-B1iF65#..(MID,STD)..IDN201111-201507

LT.GRAY,TRIM1#

main74348-BZ060-B1iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

LT.GRAY,TRIM1#

main74348-BZ060-B1iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

LT.GRAY,TRIM4#

main74348-BZ060-B1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

LT.GRAY,TRIM4#

main74348-BZ060-B1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

LT.GRAY,TRIM1#

main74348-BZ060-B1iF653..STD..IDN201901-202109

LT.GRAY,TRIM1#,4#

main74348-BZ060-B1iF653..STD..IDN201901-202109

LT.GRAY,TRIM4#

main74348-BZ060-B1iF653..STD..IDN201901-202109

LT.GRAY,TRIM1#

main74348-BZ060-B1iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM1#

main74348-BZ060-B1iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM4#

74611BGRIP, ASSIST

main74611-BZ060-B1iF651..(LO,VB)..SA201111-201508

LT.GRAY,TRIM1#

main74611-BZ060-B1iF651..STD..IDN201111-201507

LT.GRAY,TRIM4#

main74611-BZ060-B1iF651..STD..IDN201111-201507

LT.GRAY,TRIM1#

main74611-BZ060-B1iF651..(LO,VB)..SA201111-201508

LT.GRAY,TRIM4#

main74611-BZ060-B1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

LT.GRAY,TRIM4#

main74611-BZ060-B1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

LT.GRAY,TRIM1#

main74611-BZ060-B1iF653..(LO,VB)..SA201508-201904

LT.GRAY,TRIM1#

main74611-BZ060-B1iF653..(LO,VB)..SA201508-201904

MEXICO VAN,LT.GRAY,TRIM1#

main74611-BZ060-B1iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM1#

main74611-BZ060-B1iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM4#

main74611-BZ060-B1iF653..(LO,VB)..SA201904-202201

LT.GRAY,TRIM1#

main74611-BZ060-B1iF653..(LO,VB)..SA201904-202201

MEXICO VAN,LT.GRAY,TRIM1#

main74611-BZ060-B1iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM4#

main74611-BZ060-B1iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM1#,4#

main74611-BZ060-B1iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM1#

9004159401

main90041-59401¥160

9004168071

main90041-68071¥120

9004A15059

main9004A-15059

9004A16087

main9004A-16087

8 parts on this diagram · 3 diagrams in section
