Toyota AVANZA — ALTERNATOR

0001 1 0002 1 0003 1

1603

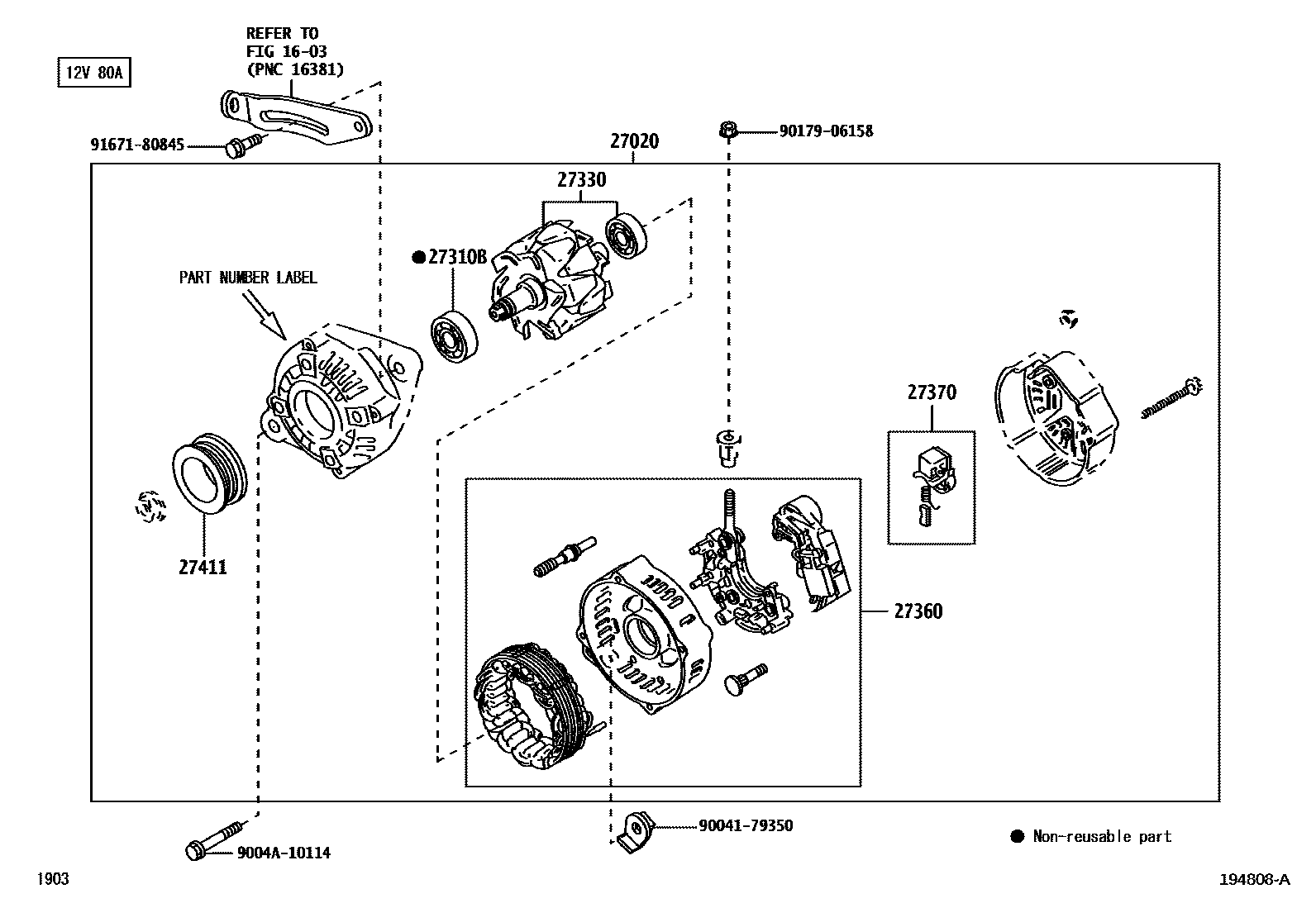

27020ALTERNATOR ASSY

main27060-BZ100iK3VE..F651201111-201404

12V 80A,W/PART NUMBER LABEL

sub27060-BZ320

main27060-BZ110i3SZVE..F652201111-201404

12V 80A,W/PART NUMBER LABEL

sub27060-BZ270

main27060-BZ270i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201404-201508

12V 80A,W/PART NUMBER LABEL

sub27060-BZ280

main27060-BZ270i3SZVE..F652..IDN201404-201507

12V 80A,W/PART NUMBER LABEL

sub27060-BZ280

main27060-BZ310i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

12V 80A

main27060-BZ310i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

12V 80A

main27060-BZ310i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

12V 80A

main27060-BZ310i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

12V 80A

main27060-BZ320iK3VE..F651..GEN,MA,PHL,SA201404-201508

12V 80A,W/PART NUMBER LABEL

main27060-BZ320iK3VE..F651..IDN201404-201507

12V 80A,W/PART NUMBER LABEL

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004B-37012i1NRVE,2NRVE..F653,654¥1,510201507-201711

main9004B-37016i2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)¥1,510201901-202101

sub9004C-37008¥970

main9004B-37016i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥1,510201712-201904

sub9004C-37008¥970

main9004B-37016i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥1,510201712-201901

sub9004C-37008¥970

main9004C-37002iK3VE..F651¥800201111-201404

ASSY,NO.27060BZ100

main9004C-37002iK3VE..F651¥800201111-201404

ASSY,NO.27060BZ110

main9004C-37008i3SZVE..F652¥970201404-201507

ASSY,NO.27060BZ320

main9004C-37008iK3VE..F651¥970201404-201507

ASSY,NO.27060BZ270

main9004C-37008i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥970202101-202110

main9004C-37008i1NRVE..F653..MID..GEN;1NRVE..F653..LO,STD,VB;2NRVE..F654..GCC,GEN,MA,MXC,PHL,SA,TH¥970202101

27330ROTOR ASSY, ALTERNATOR

main27330-BZ030iK3VE..F651¥31,400201111-201404

ASSY,NO.27060BZ100

main27330-BZ030iK3VE..F651¥31,400201111-201404

ASSY,NO.27060BZ110

main27330-BZ060i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH¥13,700201404-201508

ASSY,NO.27060BZ320

main27330-BZ060iK3VE..F651..IDN¥13,700201404-201507

ASSY,NO.27060BZ320

main27330-BZ060iK3VE..F651..IDN¥13,700201404-201507

ASSY,NO.27060BZ270

main27330-BZ060iK3VE..F651..GEN,MA,PHL,SA¥13,700201404-201508

ASSY,NO.27060BZ270

main27330-BZ060i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥13,700201507-201901

main27330-BZ060i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥13,700201507-201904

main27330-BZ060i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥13,700201901-202110

main27330-BZ060i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥13,700201901

27360COIL ASSY, ALTERNATOR

main27360-BZ010iK3VE..F651201111-201404

ASSY,NO.27060BZ100

main27360-BZ010i3SZVE..F652201111-201404

ASSY,NO.27060BZ110

main27360-BZ040i3SZVE..F652..IDN201404-201507

ASSY,NO.27060BZ270

main27360-BZ040iK3VE..F651..GEN,MA,PHL,SA201404-201508

ASSY,NO.27060BZ270

main27360-BZ040i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201404-201508

ASSY,NO.27060BZ320

main27360-BZ040iK3VE..F651..IDN201404-201507

ASSY,NO.27060BZ320

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-B1020i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main27370-B1020i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main27370-B1020i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main27370-B1020i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main27370-BZ020iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main27370-BZ020iK3VE,3SZVE..F65#..IDN201111-201507

27411PULLEY, ALTERNATOR

main27411-BZ030i3SZVE..F652..IDN201111-201507

main27411-BZ030i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main27411-BZ040iK3VE..F651..GEN,MA,PHL,SA201111-201508

main27411-BZ040iK3VE..F651..IDN201111-201507

main27411-BZ100i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main27411-BZ100i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main27411-BZ100i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main27411-BZ100i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

9004179350

main90041-79350¥220

9004A10114

main9004A-10114

9017906158

main90179-06158¥70

9167180845

main91671-80845¥100

11 parts on this diagram · 3 diagrams in section
