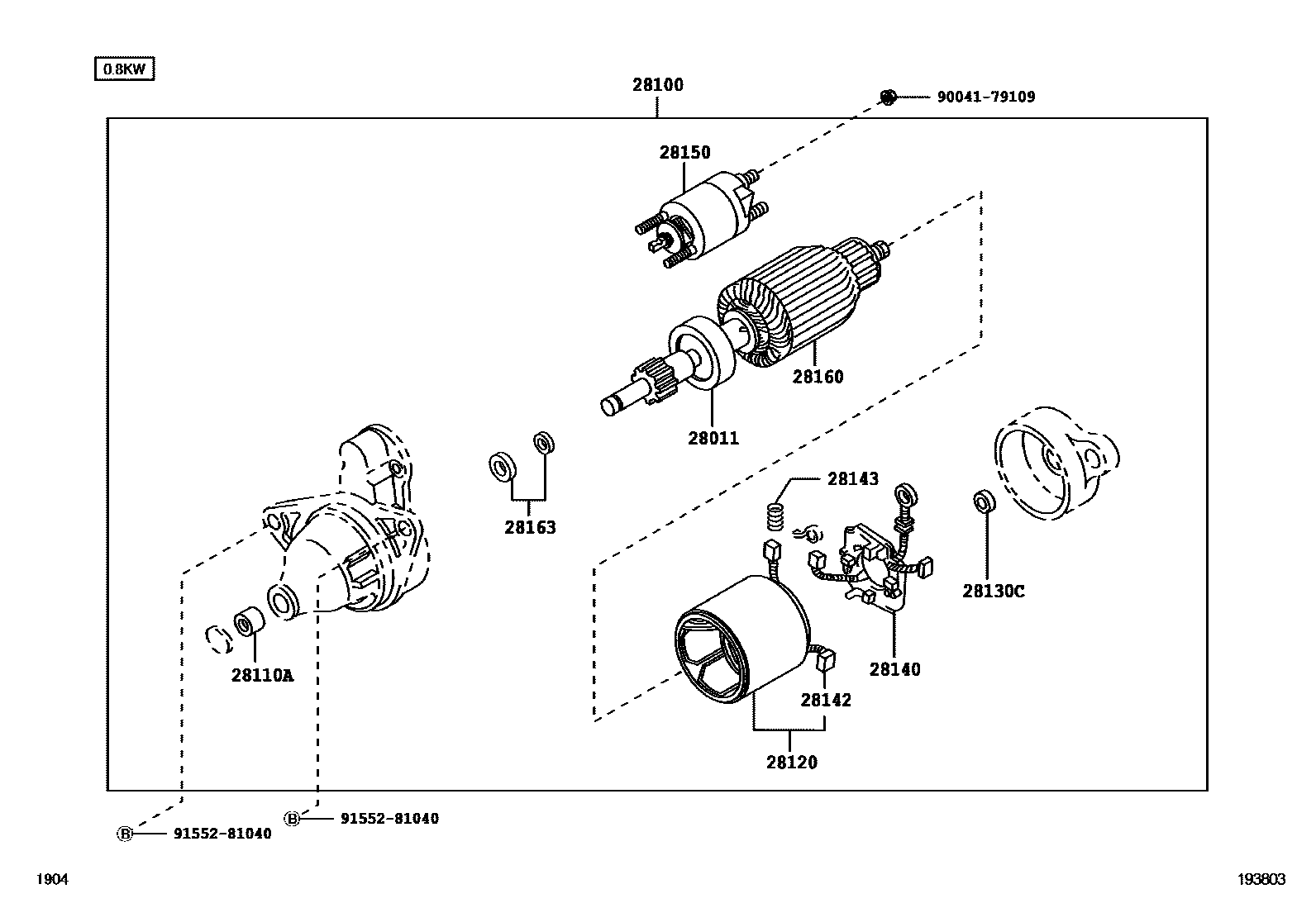

Toyota AVANZA — STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-BZ020iK3VE,3SZVE..F65#..IDN201111-201507

main28011-BZ020iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

28100STARTER ASSY

main28100-BZ020iK3VE,3SZVE..F65#..IDN201111-201507

12V 0.8KW

main28100-BZ020iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

12V 0.8KW

main28100-BZ200i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

12V 0.9KW

main28100-BZ200i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

12V 0.9KW

main28100-BZ200i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

12V 0.9KW

main28100-BZ200i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-BZ170i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main28110-BZ170i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main28110-BZ170i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main28110-BZ170i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

28110ABEARING(FOR STARTER HOUSING)

main9004B-03004iK3VE,3SZVE..F65#..IDN201111-201507

main9004B-03004iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

28120YOKE ASSY, STARTER

main28120-BZ010iK3VE,3SZVE..F65#..IDN201111-201507

main28120-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main28120-BZ090i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main28120-BZ090i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main28120-BZ090i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main28120-BZ090i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥1,280201901

main28130-BZ140i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥1,280201507-201901

main28130-BZ140i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥1,280201507-201904

main28130-BZ140i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥1,280201901-202110

28130CBEARING, STARTER FLANGE

main9004B-03004iK3VE,3SZVE..F65#..IDN201111-201507

main9004B-03004iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

28140HOLDER ASSY, STARTER BRUSH

main28140-BZ140i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main28140-BZ140i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main28140-BZ140i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main28140-BZ140i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main28149-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main28149-BZ010iK3VE,3SZVE..F65#..IDN201111-201507

28142BRUSH, STARTER

main28142-87504iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥390201111-201508

main28142-87504iK3VE,3SZVE..F65#..IDN¥390201111-201507

28143SPRING, STARTER BRUSH

main28143-BZ010iK3VE,3SZVE..F65#..IDN201111-201507

main28143-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

28150SWITCH ASSY, MAGNET STARTER

main28150-BZ010iK3VE,3SZVE..F65#..IDN201111-201507

main28150-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main28150-BZ030i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥7,500201507-201901

main28150-BZ030i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥7,500201507-201904

main28150-BZ030i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥7,500201901-202110

main28150-BZ030i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥7,500201901

28160ARMATURE ASSY, STARTER

main28160-BZ020iK3VE,3SZVE..F65#..IDN201111-201507

main28160-BZ020iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main28160-BZ040i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥12,400201507-201901

main28160-BZ040i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥12,400201507-201904

main28160-BZ040i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥12,400201901-202110

main28160-BZ040i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥12,400201901

28163NUT OR COLLAR, PINION STOP, STARTER

main28142-87505iK3VE,3SZVE..F65#..IDN¥1,150201111-201507

main28142-87505iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,150201111-201508

main28163-BZ140i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥120201507-201901

main28163-BZ140i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥120201507-201904

main28163-BZ140i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥120201901-202110

main28163-BZ140i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥120201901

9004179109

main90041-79109¥100

9155281040

main91552-81040¥120

15 parts on this diagram · 2 diagrams in section
