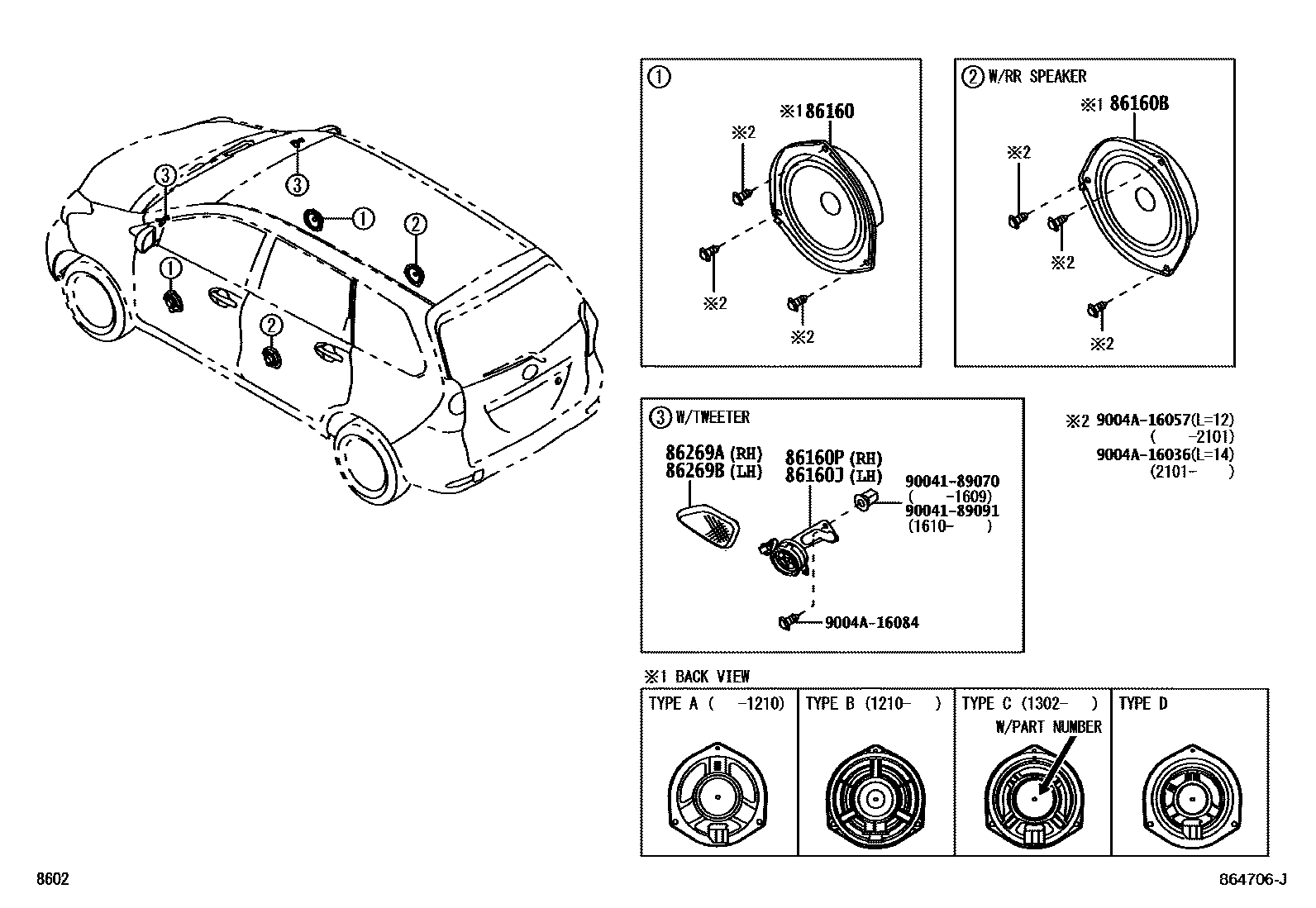

Toyota AVANZA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-BZ120iF652;F651..MID..IDN;F651..GEN,MA,PHL,SA¥6,700201111-201210

TYPE A

sub86160-BZ180¥5,300

main86160-BZ120iF652..MID..MA;F652..4AT..(SPO,STD)..(MA,TH)¥6,700201111-201210

AUDIO-D-OPT KIT 2DIN SURFACE,TYPE A

sub86160-BZ180¥5,300

main86160-BZ180iF65#..(MID,SPO)..IDN¥5,300201901-202110

TYPE B

main86160-BZ180iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥5,300201210-201508

TYPE B

main86160-BZ180iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥5,300201210-201508

AUDIO-D-OPT KIT 2DIN SURFACE,TYPE B

main86160-BZ180iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥5,300201507-201901

TYPE B

main86160-BZ180iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥5,300201507-201904

TYPE B

main86160-BZ180iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥5,300201901

TYPE B

main86160-BZ180iF65#..(MID,SPO)..IDN¥5,300201210-201507

TYPE B

main86160-BZ190iF653,654¥8,300201507-201509

TYPE C

main86160-BZ190iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥8,300201302-201508

TYPE C

main86160-BZ190iF65#..(MID,SPO)..IDN¥8,300201302-201507

TYPE C

main86160-BZ240iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥5,300201510-201901

TYPE C

sub86160-BZ241¥5,300

main86160-BZ240iF654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)¥5,300201901-202103

TYPE C

sub86160-BZ241¥5,300

main86160-BZ240iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥5,300201510-201904

TYPE C

sub86160-BZ241¥5,300

main86160-BZ241iF65#..(MID,SPO)..IDN¥5,300202104-202110

TYPE C

main86160-BZ241iF653..MID..GEN;F653..LO,STD,VB;F654..GCC,GEN,MA,MXC,PHL,SA,TH¥5,300202104

TYPE C

86160BSPEAKER ASSY, REAR

main86160-BZ110iF653,654..(MID,STD)..IDN201507-201901

TYPE D

main86160-BZ110iF653..STD..IDN201901-202111

TYPE D

main86160-BZ110iF654..4AT..IDN201507-201901

RHD GENERAL COUNTRIES,TYPE D

main86160-BZ110iF653..GEN;F654..LHD..STD;F654..MID..(GCC,GEN,SA)201507-201904

TYPE D

main86160-BZ110iF653..GEN;F654..LHD..STD;F654..MID..(GCC,GEN,SA)201901

TYPE D

main86160-BZ110iF651..GEN;F652..STD..GCC;F652..MID..(GCC,GEN,SA)201111-201508

TYPE D

main86160-BZ110iF65#..MID..IDN201111-201507

TYPE D

main86160-BZ120iF652..MID..MA;F652..4AT..(SPO,STD)..(MA,TH)¥6,700201111-201210

AUDIO-D-OPT KIT 2DIN SURFACE,TYPE A

sub86160-BZ180¥5,300

main86160-BZ120iF652..MID..MA;F652..4AT..(SPO,STD)..(MA,TH)¥6,700201111-201210

TYPE A

sub86160-BZ180¥5,300

main86160-BZ180iF653..STD..PHL;F654..5F..(MXC,PHL);F654..(SPO,STD)..(MA,PHL);F654..4AT..(MID,STD)..(MXC,PHL,TH)¥5,300201507-201904

TYPE B

main86160-BZ180iF652..SPO..IDN¥5,300201210-201507

TYPE B

main86160-BZ180iF651,652..(MID,SPO,STD)..(MA,MXC,PHL,TH)¥5,300201210-201508

TYPE B

main86160-BZ180iF651,652..(MID,SPO,STD)..(MA,MXC,PHL,TH)¥5,300201210-201508

AUDIO-D-OPT KIT 2DIN SURFACE,TYPE B

main86160-BZ180iF653..MA;F653..SPO;F654..MID..MA;F654..4AT..SPO..(IDN,TH);F654..5F..(SPO,STD)..(IDN,TH)¥5,300201507-201901

TYPE B

main86160-BZ180iF65#..(MID,SPO)..IDN¥5,300201901-202110

TYPE B

main86160-BZ180iF653..STD..PHL;F654..5F..(MXC,PHL);F654..(SPO,STD)..(MA,PHL);F654..4AT..(MID,STD)..(MXC,PHL,TH)¥5,300201901

TYPE B

main86160-BZ190iF651,652..(MID,SPO,STD)..(MA,MXC,PHL,TH)¥8,300201302-201508

TYPE C

main86160-BZ190iF653..SPO;F653..STD..(MA,PHL);F654..MID..(MA,MXC,PHL,TH);F654..(SPO,STD)..(IDN,MA,TH)¥8,300201507-201509

TYPE C

main86160-BZ190iF652..SPO..IDN¥8,300201302-201507

TYPE C

main86160-BZ240iF653..MID..GEN;F654..STD..GEN¥5,300201510-201904

SPEAKER ONLY(16*4)+W/BKT-A KIT,TYPE C

sub86160-BZ241¥5,300

main86160-BZ240iF653..MID..GEN;F654..STD..GEN¥5,300201510-201904

SPEAKER ONLY(16*4+TWEETER)+W/BKT-A,TYPE C

sub86160-BZ241¥5,300

main86160-BZ240iF654..MID..GEN¥5,300201510-201904

TYPE C

sub86160-BZ241¥5,300

main86160-BZ240iF653..MA;F653..SPO;F654..MID..MA;F654..4AT..SPO..(IDN,TH);F654..5F..(SPO,STD)..(IDN,TH)¥5,300201510-201901

TYPE C

sub86160-BZ241¥5,300

main86160-BZ240iF653..STD..PHL;F654..4AT..STD..TH;F653..(MID,SPO)..IDN;F654..MID..(IDN,MXC,PHL,TH);F654..(SPO,STD)..(IDN,MA,PHL)¥5,300201901-202103

TYPE C

sub86160-BZ241¥5,300

main86160-BZ241iF65#..(MID,SPO,STD)..(MA,MXC,PHL,TH)¥5,300202104

TYPE C

main86160-BZ241iF65#..(MID,SPO)..IDN¥5,300202104-202110

TYPE C

86160JSPEAKER ASSY, FRONT NO.3

main86150-BZ030iF652..SPO..IDN201111-201507

main86150-BZ030iF652..(MID,SPO)..(GCC,GEN,MA)201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE

main86150-BZ030iF654..MID..MA;F654..SPO..IDN201507-201901

main86150-BZ030iF654..SPO..MA;F654..MID..(GCC,GEN)201507-201904

main86150-BZ030iF65#..(MID,SPO)..IDN201901-202110

main86150-BZ030iF654..SPO..MA;F654..MID..(GCC,GEN)201901

86160PSPEAKER ASSY, FRONT NO.2

main86150-BZ020iF652..SPO..IDN201111-201507

main86150-BZ020iF652..(MID,SPO)..(GCC,GEN,MA)201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE

main86150-BZ020iF654..MID..MA;F654..SPO..IDN201507-201901

main86150-BZ020iF654..SPO..MA;F654..MID..(GCC,GEN)201507-201904

main86150-BZ020iF65#..(MID,SPO)..IDN201901-202110

main86150-BZ020iF654..SPO..MA;F654..MID..(GCC,GEN)201901

86269AGRILLE, SPEAKER

main86269-BZ040-B0iF65#..MID..IDN201901-202110

LT.GRAY,TRIM4#

main86269-BZ040-B0iF652..SPO..IDN201111-201507

LT.GRAY,TRIM1#

main86269-BZ040-B0iF652..(MID,SPO)..MA201111-201508

LT.GRAY,TRIM1#

main86269-BZ040-B0iF652..(MID,SPO)..MA201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE,LT.GRAY,TRIM1#

main86269-BZ040-B0iF652..MID..(GCC,GEN)201112-201508

LT.GRAY,TRIM4#

main86269-BZ040-B0iF654..MID..MA;F654..SPO..IDN201507-201901

LT.GRAY,TRIM1#

main86269-BZ040-B0iF654..SPO..MA201507-201904

LT.GRAY,TRIM1#

main86269-BZ040-B0iF654..MID..(GCC,GEN)201508-201904

LT.GRAY,TRIM4#

main86269-BZ040-B0iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM1#

main86269-BZ040-B0iF654..SPO..MA201901-202201

LT.GRAY,TRIM1#

main86269-BZ040-B0iF654..MID..(GCC,GEN)201901

LT.GRAY,TRIM4#

86269BGRILLE, SPEAKER

main86279-BZ030-B0iF652..SPO..IDN201111-201507

LT.GRAY,TRIM1#

main86279-BZ030-B0iF652..(MID,SPO)..MA201111-201508

LT.GRAY,TRIM1#

main86279-BZ030-B0iF652..(MID,SPO)..MA201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE,LT.GRAY,TRIM1#

main86279-BZ030-B0iF652..MID..(GCC,GEN)201112-201508

LT.GRAY,TRIM4#

main86279-BZ030-B0iF654..MID..MA;F654..SPO..IDN201507-201901

LT.GRAY,TRIM1#

main86279-BZ030-B0iF654..SPO..MA201507-201904

LT.GRAY,TRIM1#

main86279-BZ030-B0iF654..MID..(GCC,GEN)201508-201904

LT.GRAY,TRIM4#

main86279-BZ030-B0iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM1#

main86279-BZ030-B0iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM4#

main86279-BZ030-B0iF654..MID..(GCC,GEN)201901

LT.GRAY,TRIM4#

main86279-BZ030-B0iF654..SPO..MA201901-202201

LT.GRAY,TRIM1#

9004189070

main90041-89070¥170

9004189091

main90041-89091¥150

9004A16036

main9004A-16036¥110

9004A16057

main9004A-16057¥110

9004A16084

main9004A-16084

11 parts on this diagram · 1 diagram in section
