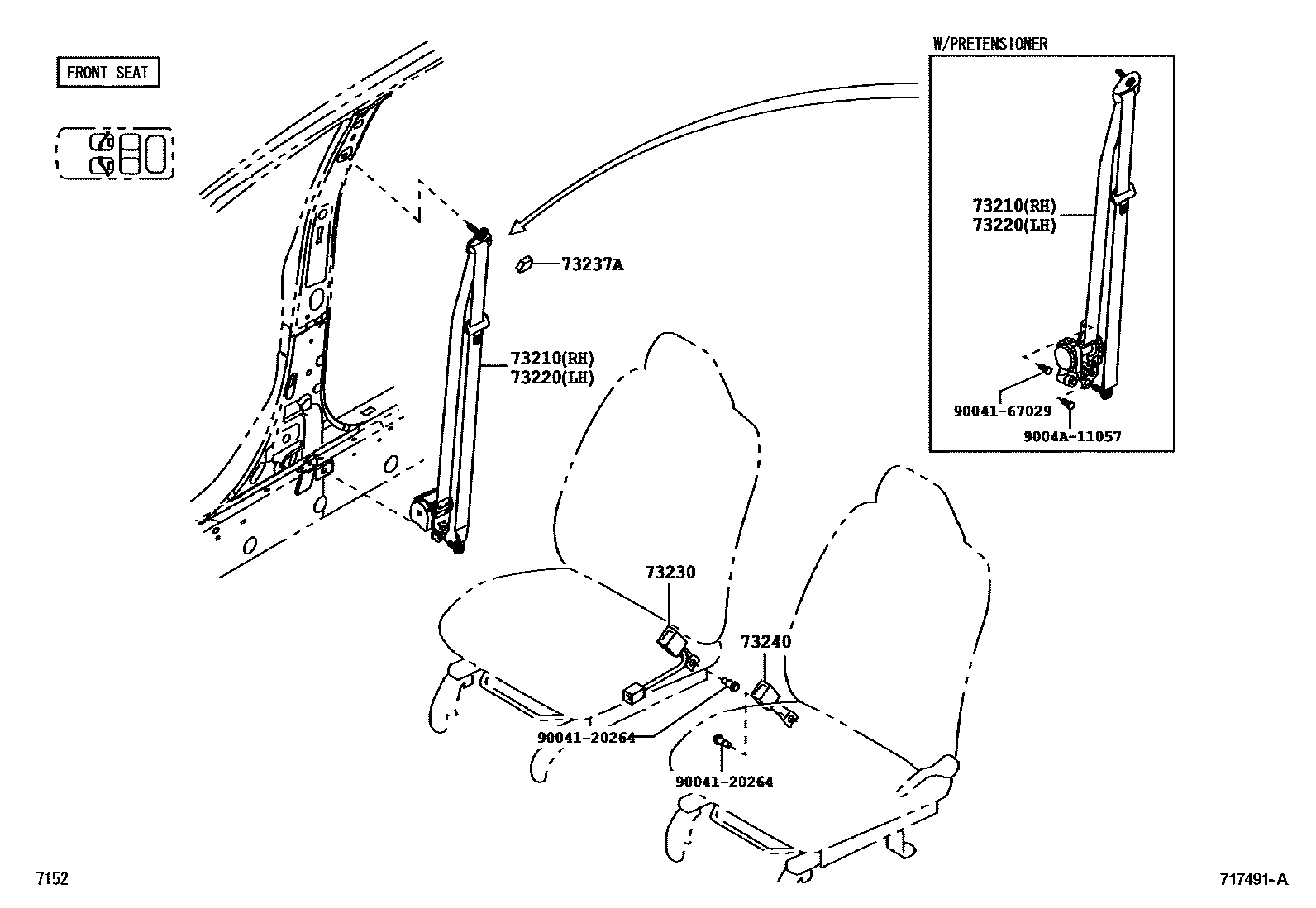

Toyota AVANZA — SEAT BELT

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1FRONT SEAT 0004 1RR NO.1 SEAT 0005 1RR NO.1 SEAT 0006 1RR NO.2 SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ190-B0iF652..SPO..IDN;F65#..(LO,STD)..(PHL,TH)201111-201307

SHADOW GRAY,TRIM1#

main73210-BZ190-E0iF651..IDN;F652..MID..(IDN,PHL)201111-201307

GREGE,TRIM4#

main73210-BZ191-B0iF652..MXC;F651..5F..GEN201307-201508

LT.GRAY,TRIM1#

main73210-BZ191-E0iF651,652..MID..GEN201307-201508

GREGE,TRIM4#

main73210-BZ350-B0iF652..4AT..TH201111-201305

SHADOW GRAY,TRIM1#

main73210-BZ360-B0iF65#..MA201111-201304

SHADOW GRAY,TRIM1#

sub73210-BZ361

main73210-BZ361-B0iF65#..MID..IDN201305-202201

LT.GRAY,TRIM1#

sub73210-BZ362

main73210-BZ361-B0iF65#..MID..IDN201507-202110

LT.GRAY,TRIM4#

sub73210-BZ362

main73210-BZ361-B0iF653..STD..IDN201901

LT.GRAY,TRIM1#,4#

sub73210-BZ362

main73210-BZ361-E0iF65#..(MID,STD)..IDN201305-201507

LT.GRAY,TRIM4#

sub73210-BZ362

main73210-BZ460-B0iF654..STD..GEN201904-202201

LT.GRAY,TRIM1#,4#

sub73210-BZ461

main73210-BZ460-B0iF654..STD..GEN201305-202111

LT.GRAY,TRIM1#

sub73210-BZ461

main73210-BZ460-B0iF654..5F..STD..GCC201508-202111

LT.GRAY,TRIM4#

sub73210-BZ461

main73210-BZ460-E0iF652..GCC,PHL201305-201508

LT.GRAY,TRIM4#

sub73210-BZ461

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ180-B0iF651..LHD..LO;F652..STD..TH201111-201305

SHADOW GRAY,TRIM1#,W/O AIR BAG

main73220-BZ180-B0iF652..MA201111-201305

SHADOW GRAY,TRIM1#

main73220-BZ180-E0iF65#..(MID,STD)..IDN201111-201305

GREGE,TRIM4#

main73220-BZ330-B0iF652..MXC;F651..STD..GEN201112-201307

SHADOW GRAY,TRIM1#,W/AIR BAG

main73220-BZ330-E0iF652..PHL201112-201307

GREGE,TRIM4#,W/AIR BAG

main73220-BZ331-B0iF652..MXC;F651..5F..GEN201307-201508

LT.GRAY,TRIM1#,W/AIR BAG

main73220-BZ331-E0iF651,652..MID..GEN201307-201508

GREGE,TRIM4#,W/AIR BAG

main73220-BZ340-B0iF65#..MA201111-201304

SHADOW GRAY,TRIM1#

sub73220-BZ341

main73220-BZ341-B0iF65#..SPO..IDN201507-202110

LT.GRAY,TRIM4#

sub73220-BZ342

main73220-BZ341-B0iF65#..SPO..IDN201305-202201

LT.GRAY,TRIM1#

sub73220-BZ342

main73220-BZ341-B0iF653..STD..IDN201901

LT.GRAY,TRIM1#,4#

sub73220-BZ342

main73220-BZ341-E0iF65#..(MID,STD)..IDN201305-201507

LT.GRAY,TRIM4#

sub73220-BZ342

main73220-BZ430-B0iF654..STD..GEN201508-202111

LT.GRAY,TRIM4#

sub73220-BZ431

main73220-BZ430-B0iF654..STD..GEN201904-202201

LT.GRAY,TRIM1#,4#

sub73220-BZ431

main73220-BZ430-B0iF654..STD..GEN201305-202111

LT.GRAY,TRIM1#

sub73220-BZ431

main73220-BZ430-E0iF652..GCC,PHL201305-201508

LT.GRAY,TRIM4#

sub73220-BZ431

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZ440-B0iF651..LO..GEN201112-201307

DK.GRAY,TRIM1#,W/AIR BAG

main73230-BZ440-B0iF652..SPO..IDN201111-201305

DK.GRAY,TRIM1#

main73230-BZ440-E0iF65#..MID..GEN201112-201307

-,TRIM4#,W/AIR BAG

main73230-BZ440-E0iF65#..(MID,STD)..IDN201111-201305

-,TRIM4#

main73230-BZ441-B0iF652..MXC;F651..5F..GEN201307-201508

DK.GRAY,TRIM1#,W/AIR BAG

main73230-BZ441-E0iF651,652..MID..GEN201307-201508

BEIGE,TRIM4#,W/AIR BAG

main73230-BZ450-B0iF652..4AT..TH201111-201305

DK.GRAY,TRIM1#

main73230-BZ450-B0iF652..MA201111-201305

DK.GRAY,TRIM1#,W/O AIR BAG

main73230-BZ470-B0iF65#..MA201111-201304

DK.GRAY,TRIM1#

sub73230-BZ471

main73230-BZ471-B0iF65#..SPO..IDN201507-202110

DK.GRAY,TRIM4#

main73230-BZ471-B0iF652..SPO..IDN201305-202201

DK.GRAY,TRIM1#

main73230-BZ471-B0iF653..STD..IDN201901

DK.GRAY,TRIM1#,4#

main73230-BZ471-E0iF65#..(MID,STD)..IDN201305-201508

BEIGE,TRIM4#

main73230-BZ580-B0iF654..5F..STD..GCC201508-202111

DK.GRAY,TRIM4#

main73230-BZ580-B0iF654..5F..STD..GCC201904-202201

DK.GRAY,TRIM1#,4#

main73230-BZ580-B0iF654..5F..STD..GCC201508-202111

DK.GRAY,TRIM1#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-BZ010-B2iF65#..MA201111-201508

LT.GRAY,TRIM1#

main73237-BZ010-B2iF651..IDN;F652..MID..(IDN,PHL)201111-201508

LT.GRAY,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZ440-B0iF651..LHD..LO;F652..STD..TH201111-201305

DK.GRAY,TRIM1#

main73230-BZ440-B0iF652..MID..TH;F652..SPO..(IDN,TH)201111-201305

DK.GRAY,TRIM1#,W/O AIR BAG

main73230-BZ440-E0iF65#..(MID,STD)..IDN201111-201305

-,TRIM4#

main73230-BZ450-B0iF651..LO..GEN201112-201307

DK.GRAY,TRIM1#,W/AIR BAG

main73230-BZ450-E0iF65#..MID..GEN201112-201307

-,TRIM4#,W/AIR BAG

main73230-BZ451-B0iF652..MXC;F651..5F..GEN201307-201508

DK.GRAY,TRIM1#,W/AIR BAG

main73230-BZ451-E0iF651,652..MID..GEN201307-201508

BEIGE,TRIM4#,W/AIR BAG

main73230-BZ460-B0iF65#..MA201111-201304

DK.GRAY,TRIM1#

sub73230-BZ461

main73230-BZ461-B0iF652..MA,SA,TH;F651..MA,PHL,SA201305-201508

DK.GRAY,TRIM1#

main73230-BZ461-E0iF652..GCC,PHL201305-201508

BEIGE,TRIM4#

main73230-BZ471-B0iF654..STD..GEN201904-202201

DK.GRAY,TRIM1#,4#

main73230-BZ471-B0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-202111

DK.GRAY,TRIM4#

main73230-BZ471-B0iF65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201508-202111

DK.GRAY,TRIM1#

main73230-BZ580-B0iF65#..SPO..IDN201507-202110

DK.GRAY,TRIM4#

main73230-BZ580-B0iF65#..MID..IDN201507-202201

DK.GRAY,TRIM1#

main73230-BZ580-B0iF653..STD..IDN201901

DK.GRAY,TRIM1#,4#

9004120264

main90041-20264

9004167029

main90041-67029¥110

9004A11057

main9004A-11057¥190

8 parts on this diagram · 6 diagrams in section
