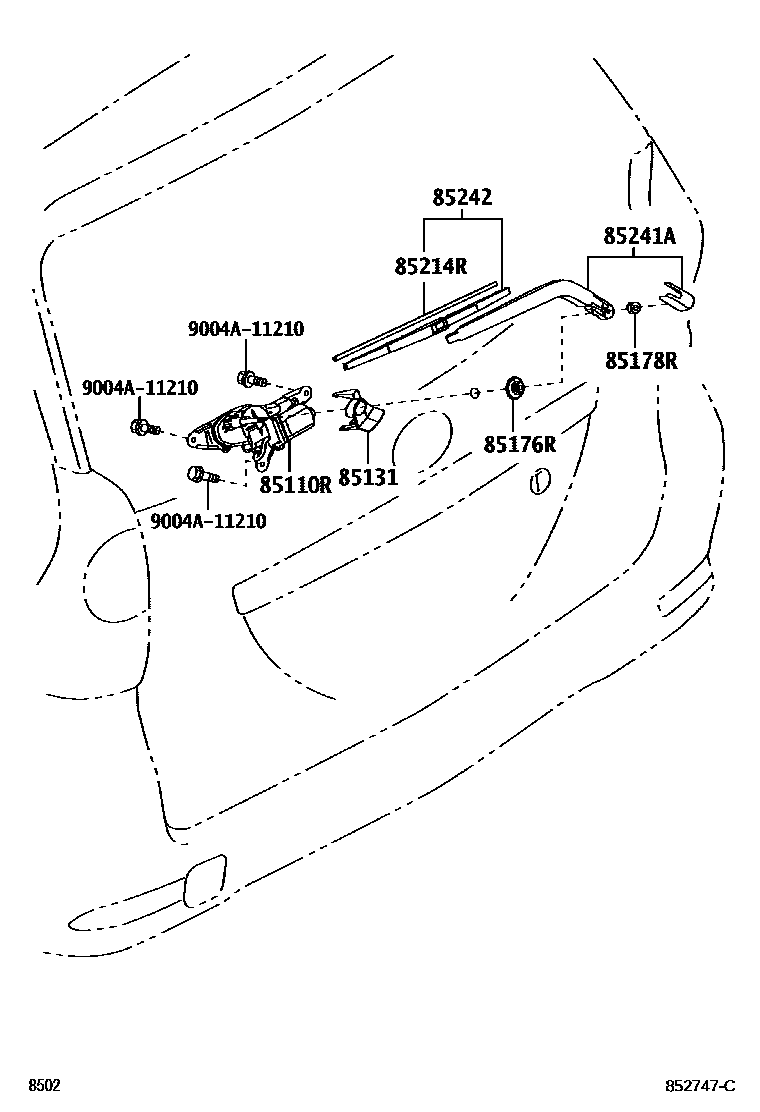

Toyota AVANZA — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-BZ130iF65#..IDN201111-201507

main85130-BZ130iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH201111-201508

main85130-BZ130iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85130-BZ130iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201507-201904

main85130-BZ130iF65#..(MID,SPO)..IDN201901-202110

main85130-BZ130iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

85131COVER, REAR WIPER MOTOR

main85131-BZ020iF65#..IDN201111-201507

main85131-BZ020iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH201111-201508

main85131-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85131-BZ020iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201507-201904

main85131-BZ020iF65#..(MID,SPO)..IDN201901-202110

main85131-BZ020iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

85176RCAP, REAR WIPER LINK

main85176-BZ010iF65#..IDN201111-201507

main85176-BZ010iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH201111-201508

main85176-BZ010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85176-BZ010iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201507-201904

main85176-BZ010iF65#..(MID,SPO)..IDN201901-202110

main85176-BZ010iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

85178RNUT (FOR REAR WIPER ARM SETTING)

main9004A-17218iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥120201507-201901

main9004A-17218iF65#..IDN¥120201205-201507

main9004A-17218iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH¥120201205-201508

main9004A-17218iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)¥120201507-201904

main9004A-17218iF65#..(MID,SPO)..IDN¥120201901-202110

main9004A-17218iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)¥120201901

main94130-60640iF651..STD..PHL;F651..GEN,IDN,MA,SA;F652..GEN,IDN,MA,PHL,SA,TH¥60201111-201204

85214RRUBBER, REAR WIPER

main85243-BZ020iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH¥500201111-201508

main85243-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥500201507-201901

main85243-BZ020iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)¥500201507-201904

main85243-BZ020iF65#..(MID,SPO)..IDN¥500201901-202110

main85243-BZ020iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)¥500201901

main85243-BZ020iF65#..IDN¥500201111-201507

85241AARM, REAR WIPER

main85241-BZ020iF65#..IDN201111-201507

main85241-BZ020iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH201111-201508

main85241-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85241-BZ020iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201507-201904

main85241-BZ020iF65#..(MID,SPO)..IDN201901-202110

main85241-BZ020iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

85242BLADE, RR WIPER

main85242-BZ120iF65#..(MID,SPO)..IDN201901-202110

main85242-BZ120iF65#..IDN201111-201507

main85242-BZ120iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH201111-201508

main85242-BZ120iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85242-BZ120iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201507-201904

main85242-BZ120iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

9004A11210

main9004A-11210

8 parts on this diagram · 1 diagram in section
