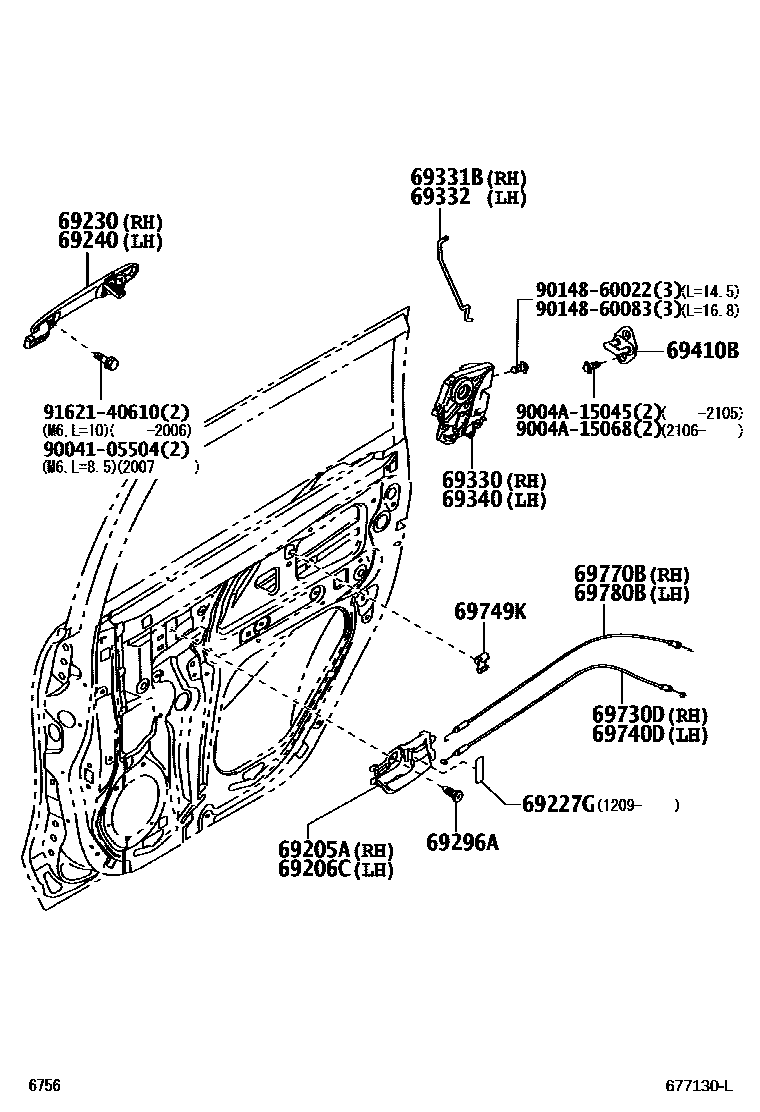

Toyota AVANZA — REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-BZ090-B0iF652..RHD..(SPO,STD);F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201408

DK.GRAY,TRIM1#

sub69270-BZ091

main69270-BZ090-E0iF651..IDN;F651..MID..GEN;F652..(MID,STD)..(GCC,GEN,IDN,PHL)201111-201408

-,TRIM4#

sub69270-BZ091

main69270-BZ091-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201806

DK.GRAY,TRIM4#

main69270-BZ091-B0iF652..SPO..IDN201409-201806

DK.GRAY,TRIM1#

main69270-BZ091-C0iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201806-201904

BLACK,TRIM1#

main69270-BZ091-C0iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201806-201904

BLACK,TRIM4#

main69270-BZ091-E0iF65#..(MID,STD)..IDN201409-201508

BEIGE,TRIM4#

main69270-BZ091-E1iF65#..MID..IDN201901-202110

LINEN BEIGE,TRIM4#

main69270-BZ130-B0iF653,654..SPO..(IDN,PHL,TH)201507-201806

DK.GRAY,TRIM1#

main69270-BZ130-C0iF654..4AT..MXC201806-201904

MEXICO LUXURY,BLACK,TRIM1#

main69270-BZ130-C0iF65#..SPO..IDN201806-202201

BLACK,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-BZ090-B0iF652..RHD..(SPO,STD);F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201408

DK.GRAY,TRIM1#

sub69280-BZ091

main69280-BZ090-E0iF651..IDN;F651..MID..GEN;F652..(MID,STD)..(GCC,GEN,IDN,PHL)201111-201408

-,TRIM4#

sub69280-BZ091

main69280-BZ091-B0iF654..SPO..MA;F654..STD..GEN;F654..(MID,STD)..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA)201409-201806

DK.GRAY,TRIM1#

main69280-BZ091-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201806

DK.GRAY,TRIM4#

main69280-BZ091-C0iF654..SPO..MA;F654..STD..GEN;F654..(MID,STD)..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA)201806-201904

BLACK,TRIM1#

main69280-BZ091-C0iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201806-201904

BLACK,TRIM4#

main69280-BZ091-E0iF65#..(MID,STD)..IDN201409-201508

BEIGE,TRIM4#

main69280-BZ091-E1iF65#..MID..IDN201901-202110

LINEN BEIGE,TRIM4#

main69280-BZ130-B0iF653,654..SPO..(IDN,PHL,TH)201507-201806

DK.GRAY,TRIM1#

main69280-BZ130-C0iF654..4AT..MXC201806-201904

MEXICO LUXURY,BLACK,TRIM1#

main69280-BZ130-C0iF654..4AT..MXC201806-202201

BLACK,TRIM1#

69227GPLATE(FOR REAR DOOR LOCK INSIDE HANDLE)

main74531-BZ030iF65#..IDN201209-202110

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-BZ200-A0iF65#..IDN201111-202110

WHITE,W09

main69210-BZ200-B0iF65#..(MID,STD)..IDN201111-201508

GRAY ME.,S37

main69210-BZ200-B1iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

SILVER M.M.,1E7

main69210-BZ200-B2iF65#..IDN201111-201508

DK. STEEL MC.,1H2

main69210-BZ200-B3iF65#..MID..IDN201507-202110

GRAY ME.,1G3

main69210-BZ200-C0iF65#..(MID,SPO)..IDN201111-202110

BLACK ME.,X12

main69210-BZ200-D0iF651,652..(MID,STD)..(MA,TH)201111-201508

MAROON MC.,R56

main69210-BZ200-D1iF654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(MA,PHL)201507-202201

DK. RED M.M.,3Q3

main69210-BZ200-E0iF65#..(LO,MID,STD,VB)..(GCC,GEN,MXC,PHL,SA)201111-202201

CHAMPAGNE ME.,T23

main69210-BZ200-E1iF653,654..(MID,STD)..(IDN,MA,TH)201507-201904

DK. BROWN M.M.,4U3

main69210-BZ200-E2iF65#..MID..IDN201901-202201

BRONZE M.M.,4T3

main69210-BZ200-J0iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

LT.BLUE ME.,B72

main69210-BZ200-J1iF653,654..LO,MID,STD,VB201507-201904

NEBULA BLUE ME.,8X2

main69210-BZ200-J4iF65#..MID..IDN201901-202201

DARK BLUE SE.,B79

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-BZ200-A0iF65#..IDN201111-202110

WHITE,W09

main69220-BZ200-B0iF65#..(MID,STD)..IDN201111-201508

GRAY ME.,S37

main69220-BZ200-B1iF65#..(MID,SPO)..IDN201111-202110

SILVER M.M.,1E7

main69220-BZ200-B2iF651,652..GCC,GEN,MA,MXC,PHL,TH201111-201508

DK. STEEL MC.,1H2

main69220-BZ200-B3iF65#..MID..IDN201507-202110

GRAY ME.,1G3

main69220-BZ200-C0iF65#..IDN201111-202110

BLACK ME.,X12

main69220-BZ200-D0iF651,652..(MID,STD)..(MA,TH)201111-201508

MAROON MC.,R56

main69220-BZ200-D1iF654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(MA,PHL)201507-202201

DK. RED M.M.,3Q3

main69220-BZ200-E0iF653,654..LO,MID,STD,VB201111-202201

CHAMPAGNE ME.,T23

main69220-BZ200-E1iF653,654..(MID,STD)..(IDN,MA,TH)201507-201904

DK. BROWN M.M.,4U3

main69220-BZ200-E2iF65#..GCC,GEN,MXC,SA201901-202201

BRONZE M.M.,4T3

main69220-BZ200-J0iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

LT.BLUE ME.,B72

main69220-BZ200-J1iF653,654..LO,MID,STD,VB201507-201904

NEBULA BLUE ME.,8X2

main69220-BZ200-J4iF65#..MID..IDN201901-202201

DARK BLUE SE.,B79

69296ASCREW, DOOR INSIDE HANDLE

main90041-67041iF651,652¥110201111-201710

main9004A-16093iF65#201711-202110

69330LOCK ASSY, REAR DOOR, RH

main69330-BZ090iF651..LO..PHL201112-202201

main69330-BZ100iF651,652..MA,SA,TH201111-201610

sub69330-BZ260

main69330-BZ100iF651..STD..PHL201112-201508

W/KEYLESS

sub69330-BZ260

main69330-BZ260iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201611-202110

69331BROD, REAR DOOR LOCK OPEN, RH

main69331-BZ010iF65#..IDN201111-202110

69332ROD, REAR DOOR LOCK OPEN, LH

main69332-BZ010iF65#..IDN201111-202110

69340LOCK ASSY, REAR DOOR, LH

main69340-BZ090iF651..LO..GEN201112-202201

main69340-BZ100iF651..LO..GEN201112-201508

W/KEYLESS

sub69340-BZ260

main69340-BZ100iF65#..IDN201111-201610

sub69340-BZ260

main69340-BZ260iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201611-202110

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-BZ010iF65#..IDN¥1,040201111-202110

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-BZ130iF65#..IDN201111-202110

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-BZ130iF65#..IDN201111-202110

69749KCLAMP, REAR DOOR LOCK

main69749-32040iF65#..IDN¥210201111-201601

main69749-BZ100iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201602-202110

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-BZ080iF65#..IDN201111-202110

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-BZ070iF65#..IDN201111-202110

9004105504

main90041-05504¥110

9004A15045

main9004A-15045

9004A15068

main9004A-15068

9014860022

main90148-60022¥60

9014860083

main90148-60083¥60

9162140610

main91621-40610¥70

22 parts on this diagram · 1 diagram in section
