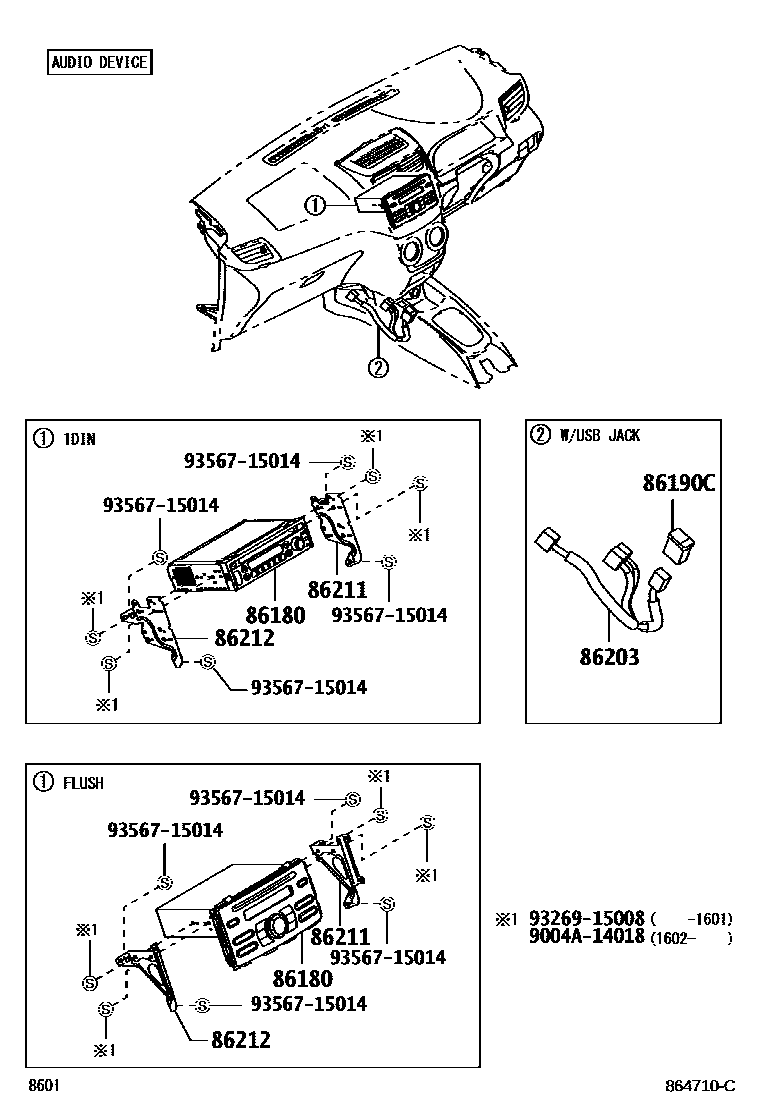

Toyota AVANZA — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0003 1 0006 1 0008 1 0009 1 0012 1

86180TUNER ASSY, STEREO COMPONENT

main86180-BZ330-B0iF652..SPO..IDN201111-201508

SILVER,TRIM4#

main86180-BZ330-B0iF652..SPO..IDN201111-201507

AUDIO-SPONLY(16*4+TW) + W/BKT-A,SILVER,TRIM1#

main86180-BZ330-B0iF652..MID..IDN201111-201508

SILVER,TRIM1#

main86180-BZ380iF653..GEN;F654..STD..GEN201904-202005

FUJITSU TEN,CENTRAL AND SOUTH AMERICA

sub86180-BZ381

main86180-BZ380iF651..GEN201111-201508

sub86180-BZ381

main86180-BZ380iF653..GEN;F654..STD..GEN201508-202005

FUJITSU TEN

sub86180-BZ381

main86180-BZ380iF653..GEN;F654..STD..GEN201508-201904

FUJITSU TEN,SPEAKER ONLY(16*4)+W/BKT-A KIT

sub86180-BZ381

main86180-BZ380iF653..GEN;F654..STD..GEN201904-202005

FUJITSU TEN,KIT(BKT+10MM PNL*2)

sub86180-BZ381

main86180-BZ380iF653..GEN;F654..STD..GEN201904-202005

FUJITSU TEN,CURAZAO AND BURUNDI

sub86180-BZ381

main86180-BZ381iF653..GEN;F654..STD..GEN202006-202208

DENSO

sub86180-BZ382

main86180-BZ382iF653..GEN202209

DENSO TEN

main86180-BZ440-B0iF654..MID..GEN201508-201904

PANASONIC,SAUDI ARABIA,SILVER

main86180-BZ440-B0iF654..MID..GEN201508-201904

PANASONIC,SPEAKER ONLY(16*4+TWEETER)+W/BKT-A,SILVER

main86180-BZ440-B0iF654..MID..GEN201508-201904

PANASONIC,CAMBODIA/LAOS,SILVER

main86180-BZ440-B0iF654..MID..GEN201508-201904

PANASONIC,SILVER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-BZ010iF652..SPO..IDN201111-201507

main86190-BZ010iF652..MID..SA;F652..SPO..TH;F652..GCC,GEN,MA,PHL201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE

main86190-BZ030iF654..STD..GCC;F654..MID..(GCC,GEN,SA)201508-201904

CAMBODIA/LAOS

main86190-BZ030iF654..MA201904-202201

MEXICO LUXURY

86203WIRE, RADIO

main86203-B0010iF652..SPO..IDN201111-201507

main86203-B0010iF652..MA;F652..MID..SA;F652..SPO..TH201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE

main86203-B0020iF652..GCC,GEN,PHL201112-201508

main86203-B0030iF654..MA201508-202201

main86203-B0040iF654..GCC;F654..MID..GEN201508-201904

CAMBODIA/LAOS

86211BRACKET, RADIO, NO.1

main86211-BZ150iF651;F652..MXC;F652..STD..SA201111-201507

sub86211-BZ151

main86211-BZ151iF653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201507-201904

main86211-BZ160iF654..STD..GCC;F654..MID..(GCC,GEN,SA)201508-201904

SPEAKER ONLY(16*4+TWEETER)+W/BKT-A

main86211-BZ160iF654..MID..PHL201508-201904

CAMBODIA/LAOS

main86211-BZ160iF652..IDN201111-201507

main86211-BZ160iF652..MID..SA;F652..GCC,GEN,MA,PHL201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE

main86211-BZ300iF65#..(MID,SPO)..IDN201901-202110

86212BRACKET, RADIO, NO.2

main86212-BZ150iF651;F652..MXC;F652..STD..SA201111-201507

sub86212-BZ151

main86212-BZ151iF653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)201507-201904

main86212-BZ160iF652..MID..SA;F652..GCC,GEN,MA,PHL201111-201508

AUDIO-D-OPT KIT 2DIN SURFACE

main86212-BZ160iF654..STD..GCC;F654..MID..(GCC,GEN,SA)201508-201904

CAMBODIA/LAOS

main86212-BZ160iF654..STD..GCC;F654..MID..(GCC,GEN,SA)201508-201904

SPEAKER ONLY(16*4+TWEETER)+W/BKT-A

main86212-BZ160iF652..IDN201111-201507

main86212-BZ300iF65#..(MID,SPO)..IDN201901-202110

9004A14018

main9004A-14018

9326915008

main93269-15008¥60

9356715014

main93567-15014¥120

8 parts on this diagram · 6 diagrams in section
