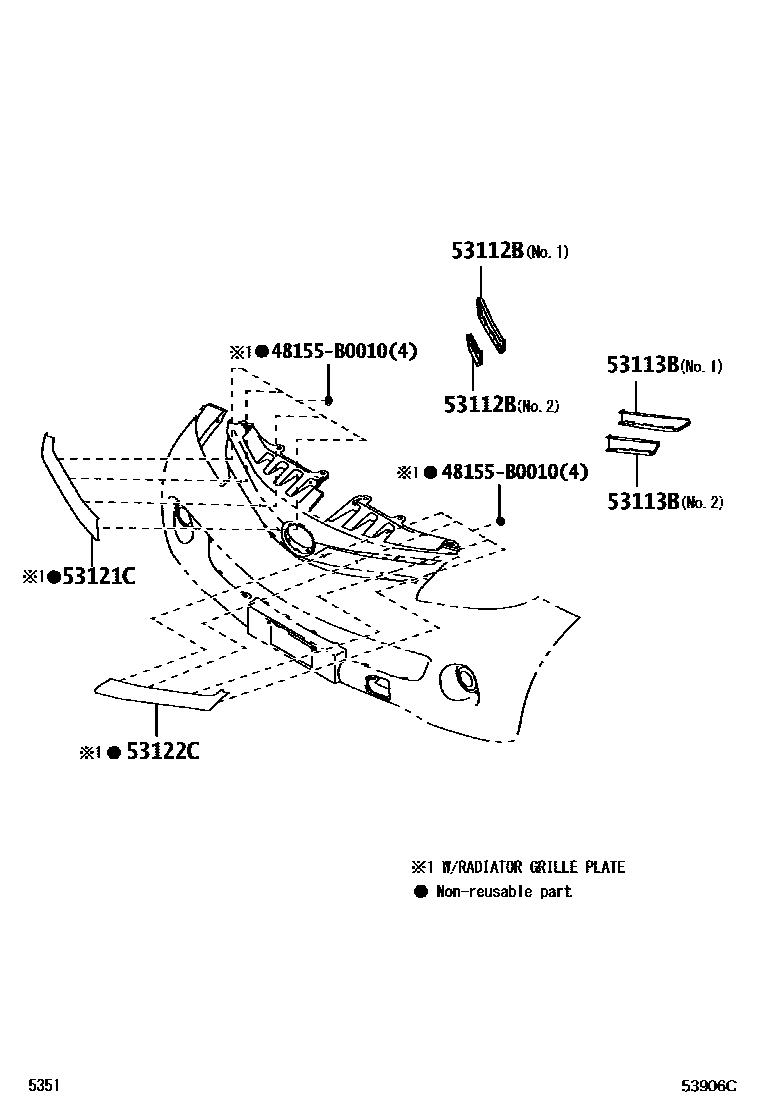

Toyota AVANZA — RADIATOR GRILLE

0001 1 0002 1 0003 1 0009 1 0011 1 0013 1

53112BGRILLE, RADIATOR SIDE, RH

main53112-BZ080iF65#..(MID,STD)..IDN201111-201507

NO.1

main53112-BZ080iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

NO.1

main53112-BZ090iF65#..(MID,STD)..IDN201111-201507

NO.2

main53112-BZ090iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

NO.2

53113BGRILLE, RADIATOR SIDE, LH

main53113-BZ050iF65#..(MID,STD)..IDN201111-201507

NO.1

main53113-BZ050iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

NO.1

main53113-BZ060iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

NO.2

main53113-BZ060iF65#..(MID,STD)..IDN201111-201507

NO.2

53121CPLATE, RADIATOR GRILLE FINISH, RH

main53121-BZ120iF651..GEN;F652..STD..TH;F652..MID..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main53121-BZ120iF65#..MID..IDN201111-201507

main53121-BZ130iF652..SPO..IDN201111-201507

main53121-BZ130iF652..SPO..(MA,TH)201111-201508

53122CPLATE, RADIATOR GRILLE FINISH, LH

main53122-BZ060iF651..GEN;F652..STD..TH;F652..MID..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main53122-BZ060iF65#..MID..IDN201111-201507

main53122-BZ070iF652..SPO..(MA,TH)201111-201508

main53122-BZ070iF652..SPO..IDN201111-201507

48155B0010NUT, SPRING CENTER(FOR FRONT SPRING)

main48155-B0010¥320

5 parts on this diagram · 6 diagrams in section
