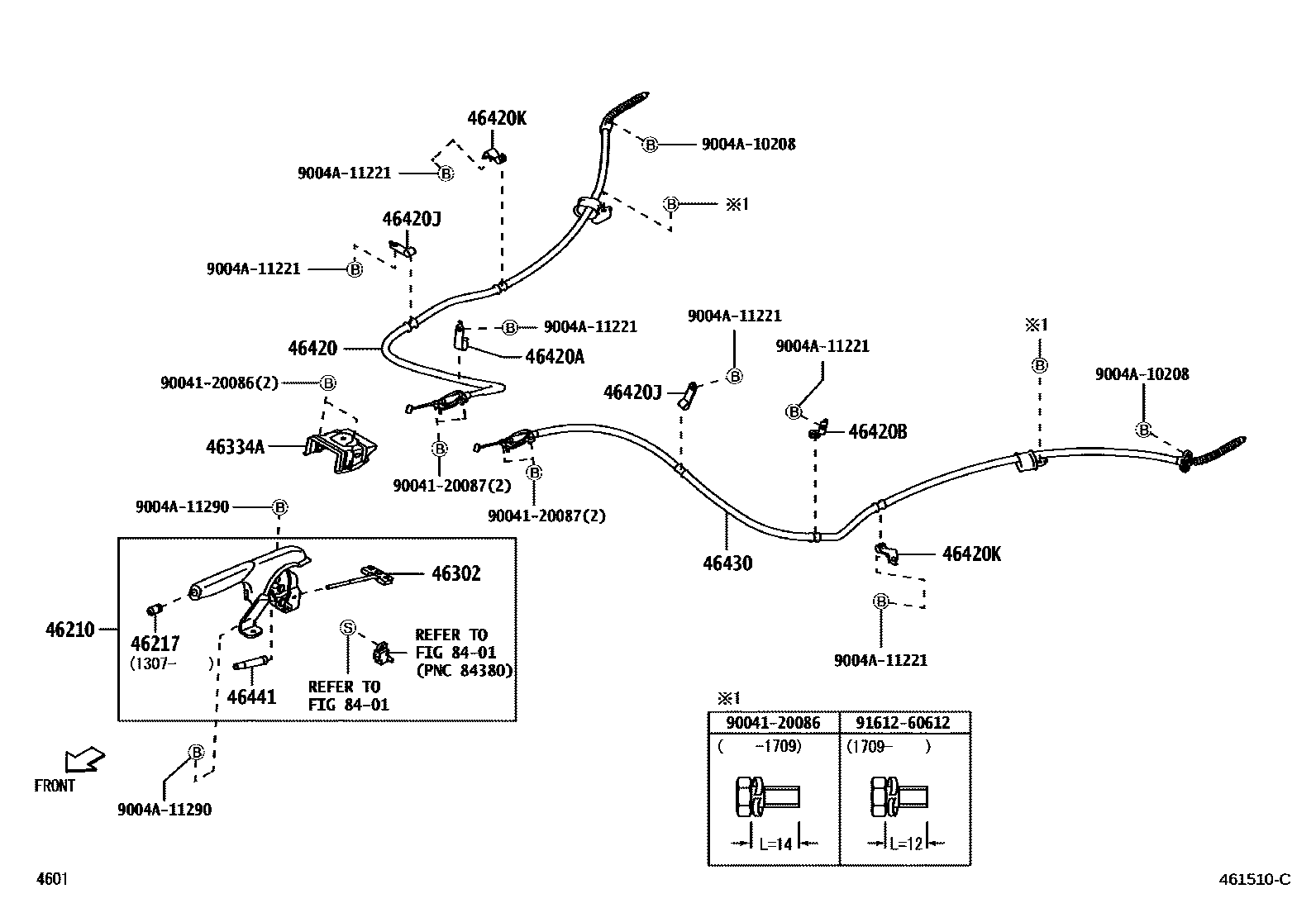

Toyota AVANZA — PARKING BRAKE & CABLE

0001 1 0002 1

46210LEVER ASSY, PARKING BRAKE

main46210-BZ041-C0iF653..MID..GEN;F654..STD..GCC201112-201712

BLACK,TRIM4#

sub46210-BZ041

main46210-BZ041-C0iF653..VB;F654..MA;F653..LHD..LO;F65#..5F..STD..(GEN,MA)201111-201712

BLACK,TRIM1#

sub46210-BZ041

main46210-BZ080-C0iF652..MID..(GCC,GEN,PHL)201111-201712

BLACK,TRIM4#

main46210-BZ080-C0iF65#..MID..IDN201111-201712

BLACK,TRIM1#

main46210-BZ080-C1iF65#..STD..(GCC,IDN);F65#..MID..(GEN,PHL)201712-201904

BLACK,TRIM1#

main46210-BZ080-C1iF653..STD..IDN;F654..MID..PHL201901

BLACK,TRIM1#,4#

main46210-BZ080-C1iF65#..MID..GEN;F654..STD..GCC201712-201904

BLACK,TRIM4#

main46210-BZ150-C0iF65#..MID..IDN201305-201712

BLACK,TRIM1#

main46210-BZ150-C0iF652..SPO..IDN201305-201712

BLACK,TRIM4#

main46210-BZ150-C1iF65#..SPO..(IDN,PHL)201712-201904

MEXICO LUXURY,BLACK,TRIM1#

main46210-BZ150-C1iF65#..MID..(GCC,IDN)201712-202201

BLACK,TRIM4#

main46210-BZ150-C1iF65#..MID..(GCC,IDN)201712-202201

BLACK,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-BZ010iF65#..(MID,SPO)..IDN201307-202201

main46217-BZ040-C0iF651..MID..GEN;F652..GCC,GEN,PHL201307-201712

BLACK,TRIM1#

main46217-BZ040-C0iF651..MID..GEN;F652..GCC,GEN,PHL201307-201712

BLACK,TRIM4#

main46217-BZ040-C1iF654..MA,MXC,SA;F654..STD..(GEN,TH);F653..(LO,STD,VB)..(GEN,PHL,SA)201712-201904

BLACK,TRIM4#

main46217-BZ040-C1iF654..MA,MXC,SA;F654..STD..(GEN,TH);F653..(LO,STD,VB)..(GEN,PHL,SA)201712-201904

BLACK,TRIM1#

main46217-BZ040-C1iF653..STD..IDN;F654..MID..PHL201901

BLACK,TRIM1#,4#

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-87Z03iF65#..IDN201111-202110

46334APROTECTOR, PARKING BRAKE CABLE JOINT

main46334-BZ010iF65#..IDN201111-201712

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ110iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201712

main46420-BZ250iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201712-202110

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46467-BZ010iF65#..IDN201111-202110

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main9004A-46126iF65#..IDN201111-202110

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main9004A-46133iF65#..IDN201111-202110

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main9004A-46289iF65#..IDN201111-202110

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ100iF65#..IDN201111-201712

main46430-BZ250iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201712-202110

46441NUT, WIRE ADJUSTING, NO.1

main46441-87Z04iF65#..IDN201111-202110

8401

9004120086

main90041-20086¥60

9004120087

main90041-20087¥60

9004A10208

main9004A-10208¥110

9004A11221

main9004A-11221

9004A11290

main9004A-11290

9161260612

main91612-60612¥200

18 parts on this diagram · 2 diagrams in section
