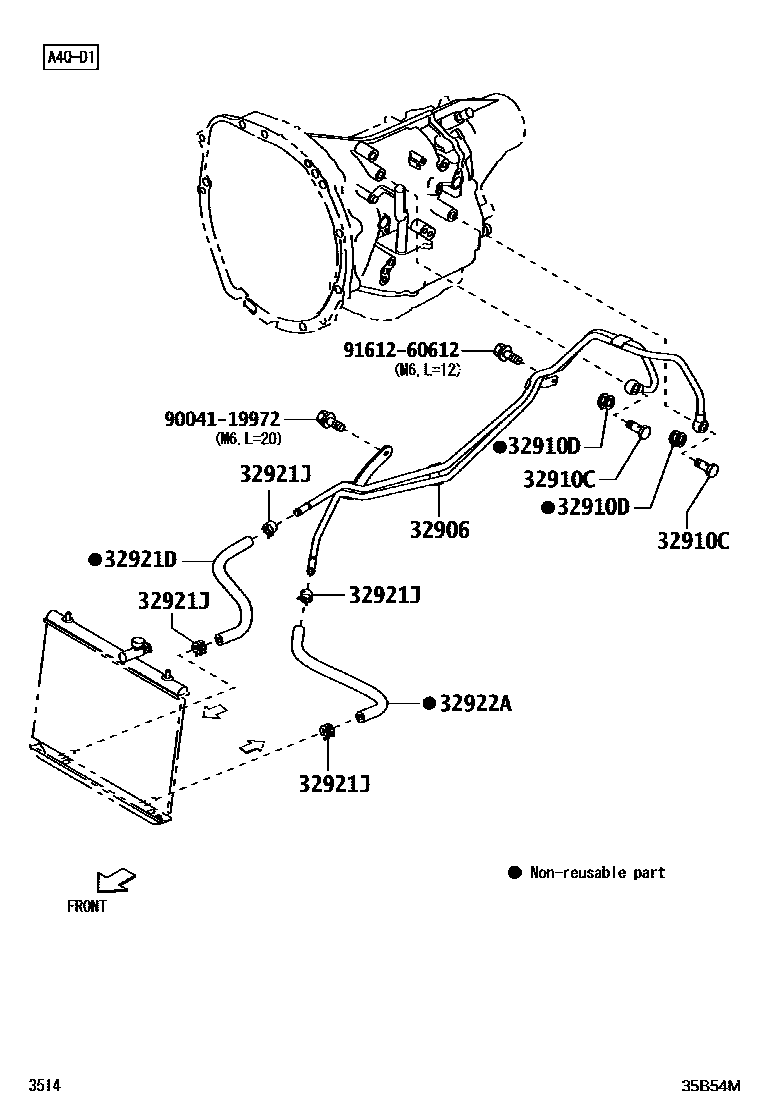

Toyota AVANZA — OIL COOLER & TUBE (ATM)

0001 1A4Q-D1 0002 1

32906TUBE SUB-ASSY, OIL COOLER

main32909-BZ080iF65#..4AT201111-201204

sub32909-BZ081

main32909-BZ081iF65#..4AT..IDN201205-201507

main32909-BZ081iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201205-201508

main32909-BZ100iF654..MID..MA;F653..4AT..IDN;F654..4AT..SPO..(IDN,TH)201507-201901

main32909-BZ100iF654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F653,654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-201904

main32909-BZ100iF65#..4AT..(MID,SPO)..IDN201901-202110

main32909-BZ100iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201901

32910CBOLT, UNION(FOR OIL COOLER)

main90044-01081iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)¥260201111-201508

main90044-01081iF65#..4AT..IDN¥260201111-201507

main90044-01081iF654..MID..MA;F653..4AT..IDN;F654..4AT..SPO..(IDN,TH)¥260201507-201901

main90044-01081iF654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F653,654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)¥260201507-201904

main90044-01081iF65#..4AT..(MID,SPO)..IDN¥260201901-202110

main90044-01081iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)¥260201901

32910DGASKET(FOR OIL COOLER)

main90044-30302iF65#..4AT..IDN¥230201111-201507

main90044-30302iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)¥230201111-201508

main90044-30302iF653,654..4AT¥230201507-201711

main9004A-43023iF654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F65#..4AT..(MID,STD)..(GEN,MXC,PHL,TH)¥210201712-201904

main9004A-43023iF654..MID..MA;F653..4AT..IDN;F654..4AT..SPO..(IDN,TH)¥210201712-201901

main9004A-43023iF65#..4AT..(MID,SPO)..IDN¥210201901-202110

main9004A-43023iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)¥210201901

32921DHOSE(FOR OIL COOLER INLET)

main32941-B0020iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201901

L=375

main32941-B0020iF653,654..4AT201507-201904

L=375

main32941-B0020iF65#..4AT..(MID,SPO)..IDN201901-202110

L=375

main32941-B0070iF651,652..4AT201111-201508

L=345

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16002iF65#..4AT..(MID,SPO)..IDN¥220201901-202110

main90466-16002iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)¥220201901

main90466-16002iF654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F653,654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)¥220201507-201904

main90466-16002iF65#..4AT..IDN¥220201111-201507

main90466-16002iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)¥220201111-201508

main90466-16002iF654..MID..MA;F653..4AT..IDN;F654..4AT..SPO..(IDN,TH)¥220201507-201901

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-B0040iF653,654..4AT201507-201904

L=248

main32942-B0040iF65#..4AT..(MID,SPO)..IDN201901-202110

L=248

main32942-B0040iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201901

L=248

main32942-B0070iF651,652..4AT201111-201508

L=490

9004119972

main90041-19972¥170

9161260612

main91612-60612¥200

8 parts on this diagram · 2 diagrams in section
