Toyota AVANZA — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-BZ020iK3VE..F651..GEN,MA,PHL,SA201111-201508

main12311-BZ020iK3VE..F651..IDN201111-201507

main12311-BZ080i3SZVE..F652..IDN201111-201507

main12311-BZ080i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main12311-BZ120i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main12311-BZ120i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main12311-BZ120i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main12311-BZ120i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

12312BRACKET, ENGINE MOUNTING, FRONT NO.2

main12312-BZ020iK3VE..F651..GEN,MA,PHL,SA201111-201508

main12312-BZ020iK3VE..F651..IDN201111-201507

main12312-BZ040i3SZVE..F652..IDN201111-201507

main12312-BZ040i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-BZ130iK3VE..F651..5F201111-201404

sub12361-BZ131

main12361-BZ132iK3VE..F651..5F..(GEN,MA,PHL,SA)201409-201508

main12361-BZ132iK3VE..F651..5F..IDN201409-201507

main12361-BZ140iK3VE..F651..4AT201111-201310

sub12361-BZ141

main12361-BZ141iK3VE..F651..4AT201311-201405

sub12361-BZ142

main12361-BZ142iK3VE..F651..LHD..4AT201406-201508

main12361-BZ142iK3VE..F651..4AT..IDN201406-201507

main12361-BZ150i3SZVE..F652..5F201111-201310

sub12361-BZ151

main12361-BZ151i3SZVE..F652..5F201311-201410

sub12361-BZ152

main12361-BZ152i3SZVE..F652..5F..(GCC,MXC,PHL,SA,TH)201411-201508

main12361-BZ152i3SZVE..F652..5F..IDN201411-201507

main12361-BZ160i3SZVE..F652..4AT201111-201310

sub12361-BZ161

main12361-BZ161i3SZVE..F652..4AT201311-201410

sub12361-BZ162

main12361-BZ162i3SZVE..F652..4AT..IDN201411-201507

main12361-BZ162i3SZVE..F652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201411-201508

main12361-BZ200i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main12361-BZ200i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main12361-BZ200i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main12361-BZ200i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main12361-BZ220iK3VE..F651..5F201404-201408

sub12361-BZ132

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12361-BZ200i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main12361-BZ200i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main12361-BZ200i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main12361-BZ200i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main12362-BZ130iK3VE..F651201111-201408

sub12362-BZ131

main12362-BZ131iK3VE..F651..GEN,MA,PHL,SA201409-201508

main12362-BZ131iK3VE..F651..IDN201409-201507

main12362-BZ140i3SZVE..F652201111-201408

sub12362-BZ141

main12362-BZ141i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201409-201508

main12362-BZ141i3SZVE..F652..IDN201409-201507

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-BZ110i3SZVE..F652;K3VE..F651..4AT..IDN;K3VE..F651..GEN,MA,PHL,SA201111-201303

sub12371-BZ111

main12371-BZ111i3SZVE..F652..IDN;K3VE..F651..4AT..IDN201304-201507

sub12371-BZ121

main12371-BZ111iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201304-201508

sub12371-BZ121

main12371-BZ120iK3VE..F651..5F..IDN201111-201303

sub12371-BZ121

main12371-BZ121iK3VE..F651..5F..IDN201304-201507

main12371-BZ170i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main12371-BZ170i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main12371-BZ170i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main12371-BZ170i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

8202

9004170295

main90041-70295¥160

91552E1025

main91552-E1025¥170

9162261020

main91622-61020¥180

9163160618

main91631-60618¥110

9167180830

main91671-80830¥80

9415181001

main94151-81001¥110

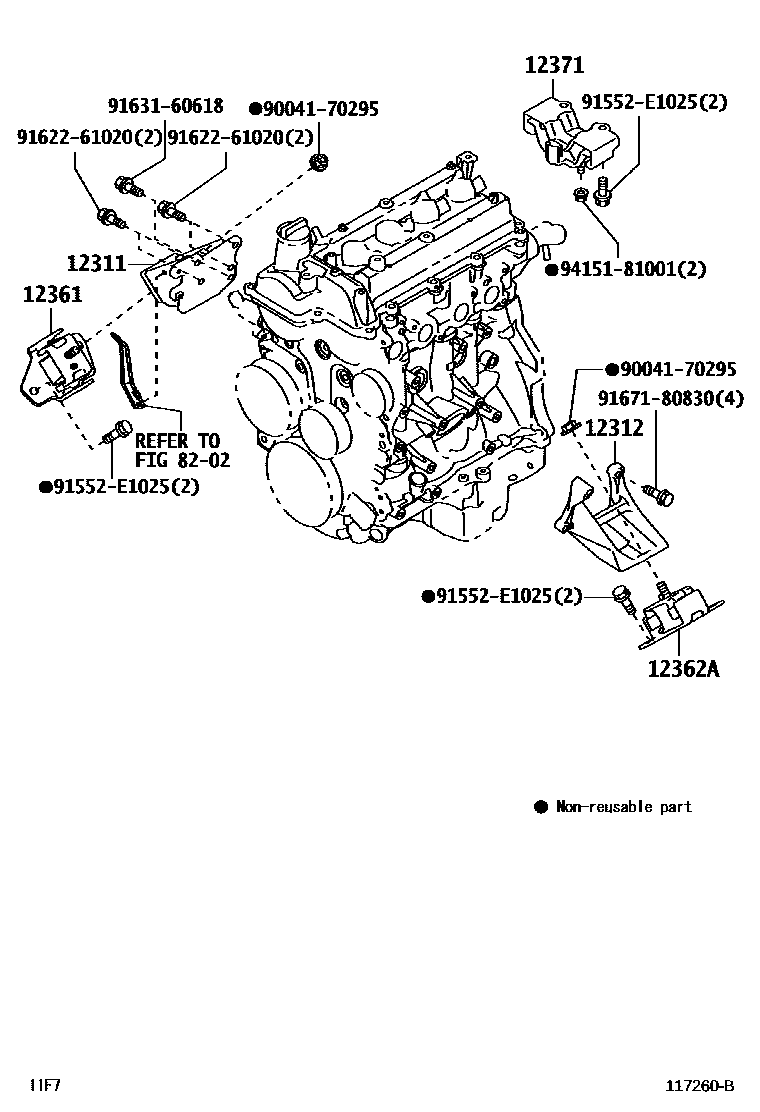

12 parts on this diagram · 2 diagrams in section
