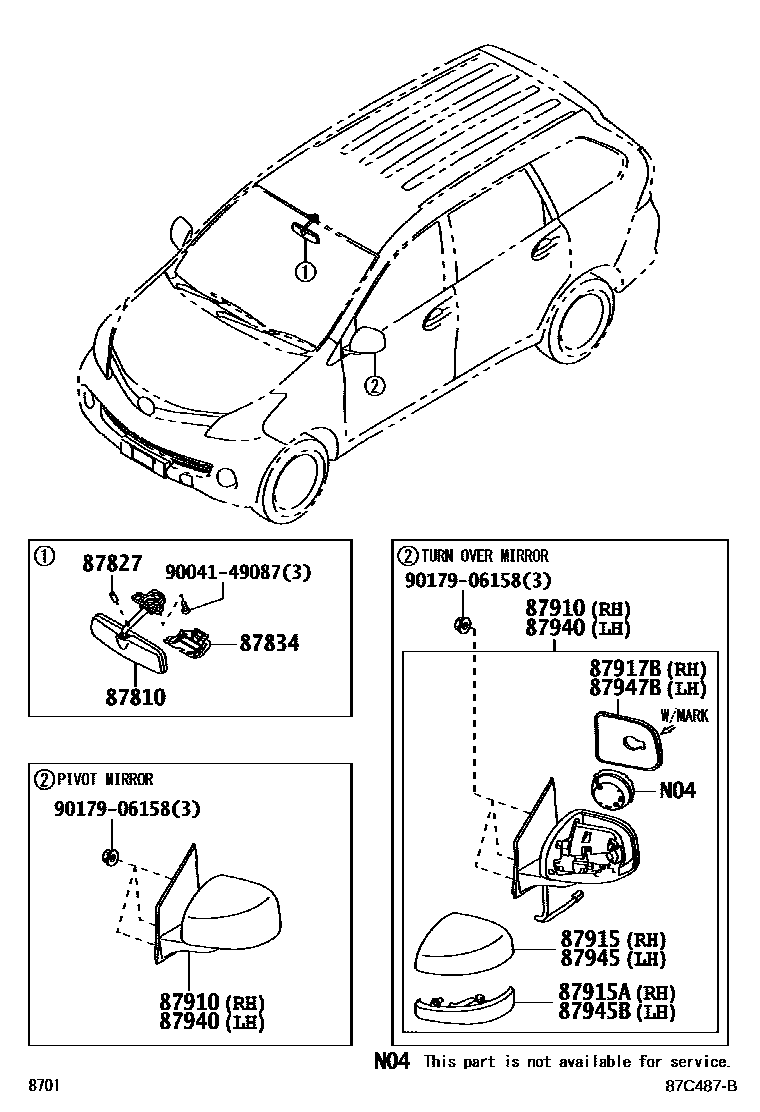

Toyota AVANZA — MIRROR

0001 1 0002 1 0007 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-BZ070iF65#..IDN201111-201507

main87810-BZ070iF65#..(MID,SPO)..IDN201901-202110

main87810-BZ070iF653..LO..PHL;F65#..STD..(GCC,IDN)201901

main87810-BZ070iF651..LO..PHL;F652..STD..GCC201111-201508

main87810-BZ070iF653,654..IDN;F653..LO..PHL;F654..STD..GCC201507-201904

main87810-BZ080iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,MXC,PHL,SA,TH201111-201508

main87810-BZ080iF653..GEN,SA;F653..STD..PHL;F654..MID..GCC;F654..GEN,MA,MXC,PHL,SA,TH201904

main87810-BZ080iF653..STD..PHL;F654..MID..GCC;F653..GEN,MA,SA;F654..GEN,MA,MXC,PHL,SA,TH201508-201904

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-BZ010iF65#..IDN201111-201507

main87828-BZ010iF653,654201507-201904

main87828-BZ010iF65#..(MID,SPO)..IDN201901-202110

main87828-BZ010iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main87828-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-BZ051-B1iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

LT.GRAY,TRIM1#

main87834-BZ051-B1iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

LT.GRAY,TRIM4#

main87834-BZ051-B1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

LT.GRAY,TRIM4#

main87834-BZ051-B1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

LT.GRAY,TRIM1#

main87834-BZ051-B1iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM1#

main87834-BZ051-B1iF65#..SPO..IDN201901-202110

LT.GRAY,TRIM4#

main87834-BZ051-B1iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM4#

main87834-BZ051-B1iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM1#

main87834-BZ051-B1iF654..GCC;F65#..MID..GEN201901

LT.GRAY,TRIM1#,4#

main87834-BZ051-B1iF65#..(MID,STD)..IDN201111-201507

LT.GRAY,TRIM4#

main87834-BZ051-B1iF65#..(MID,STD)..IDN201111-201507

LT.GRAY,TRIM1#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-BZ430iF651..LO,VB201111-201508

PIVOT MIRROR

main87910-BZ430iF653..LO,VB201508-201904

PIVOT MIRROR

main87910-BZ430iF653..LO,VB201904

PIVOT MIRROR

main87910-BZ430iF651..STD..GEN201111-201305

PIVOT MIRROR

main87910-BZ430iF653..IDN202111

PIVOT MIRROR

main87910-BZ461iF653..STD..GEN201904-202201

MEXICO VAN

main87910-BZ461iF653..LHD..(MID,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL)201508-201904

main87910-BZ461iF654..5F..MXC201904-202201

VIETNAM

main87910-BZ471iF65#..STD..SA201904-202201

main87910-BZ471iF654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA)201507-201904

main87910-BZ590iF651..STD..PHL201112-201508

main87910-BZ600iF65#..IDN;F652..(MID,STD)..TH201111-201411

MARK:TAPE=BLUE

sub87910-BZ601

main87910-BZ600iF652..SPO..TH201111-201303

MARK:TAPE=BLUE

sub87910-BZ601

main87910-BZ600iF65#..MA201111-201312

MARK:TAPE=BLUE

sub87910-BZ601

main87910-BZ601iF65#..IDN201412-201507

main87910-BZ601iF652..(MID,STD)..TH201412-201508

main87910-BZ610iF651..STD..GEN201305-201411

TURN OVER MIRROR

main87910-BZ610iF65#..MID..(GEN,MXC,PHL)201112-201411

TURN OVER MIRROR

main87910-BZ611iF652..GEN,MXC,PHL;F651..(MID,STD)..GEN201412-201507

sub87910-BZ461

main87910-BZ620iF65#..MA201312-201411

MARK:TAPE=YELLOW

main87910-BZ620iF652..SPO..TH201303-201411

MARK:TAPE=YELLOW

main87910-BZ620iF65#..(MID,STD)..SA201111-201411

MARK:TAPE=YELLOW

main87910-BZ621iF652..SPO..TH;F65#..(MID,SPO,STD)..(MA,SA)201412-201507

sub87910-BZ471

main87910-BZ801iF654..STD..GCC201508-201904

main87910-BZ820iF652..GCC201404-201411

main87910-BZ821iF652..GCC201412-201507

main87910-BZ830iF65#..MA;F654..(MID,SPO)..TH201508-201904

main87910-BZ840iF654..MID..GEN201508-201904

main87910-BZ840iF654..MID..GEN201904

main87910-BZA90iF654..MID..GCC201508-201904

main87910-BZB20iF653..STD..IDN201901-202111

TYPE A

main87910-BZB20iF654..MID..SA;F654..4AT..STD..TH201901-202201

TYPE A

main87910-BZE00iF653..STD..PHL;F653..MID..GEN;F654..4AT..MXC;F654..5F..(GEN,MXC)201904

TYPE A

main87910-BZE10iF654..STD..GCC201904-202201

TYPE A

main87910-BZE60iF654..SPO..MA;F654..MID..TH201901-202201

TYPE C

main87910-BZE60iF65#..MID..IDN201901-202110

TYPE C

main87910-BZE70iF65#..SPO..IDN201901-202110

TYPE D

main87910-BZE80iF654..STD..MA201904-202201

TYPE E

main87910-BZE90iF654..MID..GEN201904-202201

NEW STYLE FOR LHD GEN EXP,TYPE E

main87910-BZE90iF654..MID..GEN201904-202201

TYPE E

main87910-BZF00iF654..MID..GCC201904-202201

TYPE C

87915COVER, OUTER MIRROR, RH

main87915-BZ310iF654..STD..SA;F653..STD..(GEN,SA)201904-202201

VIETNAM

main87915-BZ310iF654..STD..SA;F653..STD..(GEN,SA)201904-202201

MEXICO VAN

main87915-BZ310iF65#..IDN201111-201507

main87915-BZ310iF651..MID..GEN;F651..STD..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main87915-BZ310iF651..STD..GEN201305-201508

main87915-BZ310iF654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA)201507-201904

main87915-BZ410iF654..MID..GEN201904

main87915-BZ410iF653..MA;F654..4AT..(GEN,MA);F654..(MID,SPO)..(GCC,TH)201508-201904

main87915-BZ520iF653..STD..IDN201901-202111

main87915-BZ520iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(GCC,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL)201901

main87915-BZ520iF65#..(MID,SPO)..IDN201901-202110

87915ACOVER, OUTER MIRROR, RH

main87915-BZ290iF654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA)201507-201904

main87915-BZ290iF65#..IDN201111-201507

main87915-BZ290iF651..MID..GEN;F651..STD..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main87915-BZ290iF651..STD..GEN201305-201508

main87915-BZ290iF654..STD..SA;F653..STD..(GEN,SA)201904-202201

VIETNAM

main87915-BZ290iF654..STD..SA;F653..STD..(GEN,SA)201904-202201

MEXICO VAN

main87915-BZ400iF653..MA;F654..4AT..(GEN,MA);F654..(MID,SPO)..(GCC,TH)201508-201904

main87915-BZ400iF654..MID..GEN201904

main8791B-BZ020iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(GCC,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL)201901

main8791B-BZ020iF65#..(MID,SPO)..IDN201901-202110

main8791B-BZ020iF653..STD..IDN201901-202111

87917BMIRROR, OUTER REAR VIEW, RH

main87917-BZ110iF65#..MA201111-201312

MARK:TAPE=BLUE

main87917-BZ110iF652..SPO..TH201111-201303

MARK:TAPE=BLUE

main87917-BZ110iF65#..IDN201412-201507

main87917-BZ110iF652..(MID,STD)..TH201412-201508

main87917-BZ110iF65#..IDN;F652..(MID,STD)..TH201111-201412

MARK:TAPE=BLUE

main87917-BZ120iF65#..MA201312-201412

MARK:TAPE=YELLOW

main87917-BZ120iF652..SPO..TH;F652..GEN,MA,MXC,PHL,SA;F651..(MID,STD)..(GEN,MA,SA)201412-201508

main87917-BZ120iF654..STD..SA;F654..MID..GEN;F653..STD..(GEN,SA)201904

main87917-BZ120iF65#..(MID,STD)..SA201111-201412

MARK:TAPE=YELLOW

main87917-BZ120iF65#..MID..(GEN,MXC,PHL)201112-201412

TURN OVER MIRROR

main87917-BZ120iF652..SPO..TH201303-201412

MARK:TAPE=YELLOW

main87917-BZ120iF651..STD..GEN201305-201412

TURN OVER MIRROR

main87917-BZ120iF653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH)201507-201904

main87917-BZ150iF652..GCC201404-201412

MARK:TAPE=RED

main87917-BZ150iF654..GCC201508-201904

main87917-BZ150iF652..GCC201412-201508

main87917-BZ180iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL)201901

main87917-BZ180iF65#..(MID,SPO)..IDN201901-202110

main87917-BZ180iF653..STD..IDN201901-202111

main87917-BZ190iF654..GCC201904-202201

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-BZ360iF653..IDN202111

PIVOT MIRROR

main87940-BZ360iF651..STD..GEN201111-201305

PIVOT MIRROR

main87940-BZ360iF653..LO,VB201904

PIVOT MIRROR

main87940-BZ360iF651..LO,VB201111-201508

PIVOT MIRROR

main87940-BZ360iF653..LO,VB201508-201904

PIVOT MIRROR

main87940-BZ401iF654..5F..MXC201904-202201

MEXICO VAN

main87940-BZ401iF654..5F..MXC201904-202201

VIETNAM

main87940-BZ401iF653..LHD..(MID,STD);F654..4AT..(MXC,PHL);F654..5F..(GEN,MXC,PHL)201508-201904

main87940-BZ411iF65#..STD..SA201904-202201

main87940-BZ411iF654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA)201507-201904

main87940-BZ590iF651..STD..PHL201112-201508

main87940-BZ600iF65#..IDN;F652..(MID,STD)..TH201111-201411

MARK:TAPE=BLUE

sub87940-BZ601

main87940-BZ600iF652..SPO..TH201111-201303

MARK:TAPE=BLUE

sub87940-BZ601

main87940-BZ600iF65#..MA201111-201312

MARK:TAPE=BLUE

sub87940-BZ601

main87940-BZ601iF65#..IDN201412-201507

main87940-BZ601iF652..(MID,STD)..TH201412-201508

main87940-BZ610iF65#..MID..(GEN,MXC,PHL)201112-201411

TURN OVER MIRROR

main87940-BZ610iF651..STD..GEN201305-201411

TURN OVER MIRROR

main87940-BZ611iF652..GEN,MXC,PHL;F651..(MID,STD)..GEN201412-201507

sub87940-BZ401

main87940-BZ620iF652..SPO..TH201303-201411

MARK:TAPE=YELLOW

main87940-BZ620iF65#..MA201312-201411

MARK:TAPE=YELLOW

main87940-BZ620iF65#..(MID,STD)..SA201111-201411

MARK:TAPE=YELLOW

main87940-BZ621iF652..SPO..TH;F65#..(MID,SPO,STD)..(MA,SA)201412-201507

sub87940-BZ411

main87940-BZ761iF654..STD..GCC201508-201904

main87940-BZ780iF652..GCC201404-201411

main87940-BZ781iF652..GCC201412-201507

main87940-BZ800iF65#..MA;F654..(MID,SPO)..TH201508-201904

main87940-BZ810iF654..MID..GEN201904

main87940-BZ810iF654..MID..GEN201508-201904

main87940-BZA60iF654..MID..GCC201508-201904

main87940-BZD50iF654..MID..SA;F654..4AT..STD..TH201901-202201

TYPE A

main87940-BZD50iF653..STD..IDN201901-202111

TYPE A

main87940-BZD80iF653..STD..PHL;F653..MID..GEN;F654..4AT..MXC;F654..5F..(GEN,MXC)201904

TYPE A

main87940-BZD90iF654..STD..GCC201904-202201

TYPE A

main87940-BZE40iF65#..MID..IDN201901-202110

TYPE C

main87940-BZE40iF654..SPO..MA;F654..MID..TH201901-202201

TYPE C

main87940-BZE50iF65#..SPO..IDN201901-202110

TYPE D

main87940-BZE60iF654..STD..MA201904-202201

TYPE E

main87940-BZE70iF654..PHL201904-202201

NEW STYLE FOR LHD GEN EXP,TYPE E

main87940-BZE70iF654..MID..GEN201904-202201

TYPE E

main87940-BZE80iF654..MID..GCC201904-202201

TYPE C

87945COVER, OUTER MIRROR, LH

main87945-BZ310iF654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA)201507-201904

main87945-BZ310iF65#..IDN201111-201507

main87945-BZ310iF651..MID..GEN;F651..STD..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main87945-BZ310iF651..STD..GEN201305-201508

main87945-BZ310iF654..STD..SA;F653..STD..(GEN,SA)201904-202201

MEXICO VAN

main87945-BZ310iF653..5F..STD..PHL201904-202201

VIETNAM

main87945-BZ410iF653..MA;F654..4AT..(GEN,MA);F654..(MID,SPO)..(GCC,TH)201508-201904

main87945-BZ410iF654..MID..GEN201904

main87945-BZ530iF65#..(MID,SPO)..IDN201901-202110

main87945-BZ530iF653..STD..IDN201901-202111

main87945-BZ530iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(GCC,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL)201901

87945BCOVER, OUTER MIRROR, LH

main87945-BZ290iF65#..IDN201111-201507

main87945-BZ290iF651..MID..GEN;F651..STD..(MA,SA);F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main87945-BZ290iF651..STD..GEN201305-201508

main87945-BZ290iF654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA)201507-201904

main87945-BZ290iF654..STD..SA;F653..STD..(GEN,SA)201904-202201

VIETNAM

main87945-BZ290iF654..STD..SA;F653..STD..(GEN,SA)201904-202201

MEXICO VAN

main87945-BZ420iF653..MA;F654..4AT..(GEN,MA);F654..(MID,SPO)..(GCC,TH)201508-201904

main87945-BZ420iF654..MID..GEN201904

main8794B-BZ020iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(GCC,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL)201901

main8794B-BZ020iF653..STD..IDN201901-202111

main8794B-BZ020iF65#..(MID,SPO)..IDN201901-202110

87947BMIRROR, OUTER REAR VIEW, LH

main87947-BZ110iF652..(MID,STD)..TH201412-201508

main87947-BZ110iF65#..MA201111-201312

MARK:TAPE=BLUE

main87947-BZ110iF65#..IDN;F652..(MID,STD)..TH201111-201412

MARK:TAPE=BLUE

main87947-BZ110iF652..SPO..TH201111-201303

MARK:TAPE=BLUE

main87947-BZ110iF65#..IDN201412-201507

main87947-BZ120iF654..STD..SA;F654..MID..GEN;F653..STD..(GEN,SA)201904

main87947-BZ120iF65#..(MID,STD)..SA201111-201412

MARK:TAPE=YELLOW

main87947-BZ120iF65#..MID..(GEN,MXC,PHL)201112-201412

TURN OVER MIRROR

main87947-BZ120iF652..SPO..TH201303-201412

MARK:TAPE=YELLOW

main87947-BZ120iF651..STD..GEN201305-201412

TURN OVER MIRROR

main87947-BZ120iF65#..MA201312-201412

MARK:TAPE=YELLOW

main87947-BZ120iF652..SPO..TH;F652..GEN,MA,MXC,PHL,SA;F651..(MID,STD)..(GEN,MA,SA)201412-201508

main87947-BZ120iF653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH)201507-201904

main87947-BZ150iF652..GCC201404-201412

MARK:TAPE=RED

main87947-BZ150iF652..GCC201412-201508

main87947-BZ150iF654..GCC201508-201904

main87947-BZ180iF653..STD..IDN201901-202111

main87947-BZ180iF65#..(MID,SPO)..IDN201901-202110

main87947-BZ180iF653..STD..PHL;F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL)201901

main87947-BZ190iF654..GCC201904-202201

9004149087

main90041-49087¥120

9017906158

main90179-06158¥70

13 parts on this diagram · 3 diagrams in section
