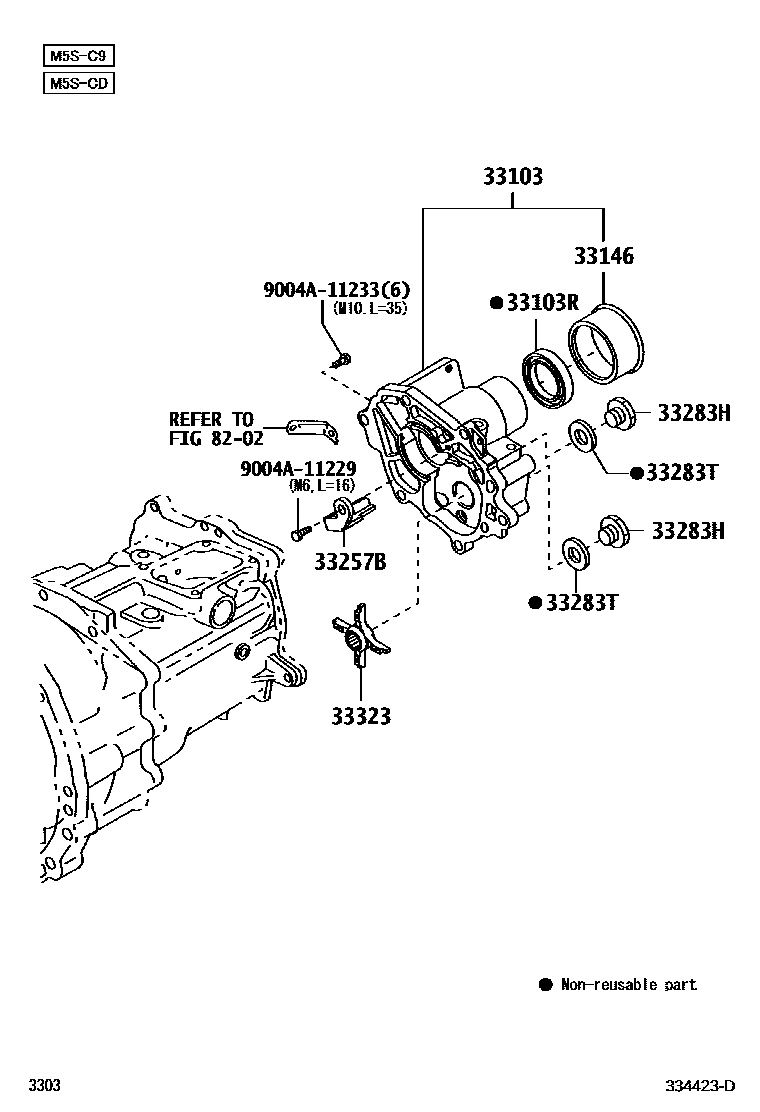

Toyota AVANZA — EXTENSION HOUSING (MTM)

0001 1M5S-C9, M5S-CD 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-BZ020iF65#..5F..IDN201111-201508

main33103-BZ030iF653,654..5F..(IDN,MA,TH)201507-202112

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main9004A-31014iF65#..5F..IDN¥350201111-202112

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-BZ040iF65#..5F..IDN201111-202112

33257BPLATE, GEAR OIL

main35345-BZ010iF65#..5F..IDN¥380201111-202112

sub35257-87501¥100

33283HPLUG, W/HEAD STRAIGHT SCREW

main9004A-34010iF65#..5F..IDN201111-202112

sub90341-16012¥210

33283TGASKET (FOR HEAD STRAIGHT SCREW PLUG)

main9004A-43006iF65#..5F..IDN¥110201111-202112

33323SLINGER, OUTPUT SHAFT OIL

main33467-BZ020iF65#..5F..IDN201111-202112

8202

9004A11229

main9004A-11229¥110

9004A11233

main9004A-11233

10 parts on this diagram · 2 diagrams in section
