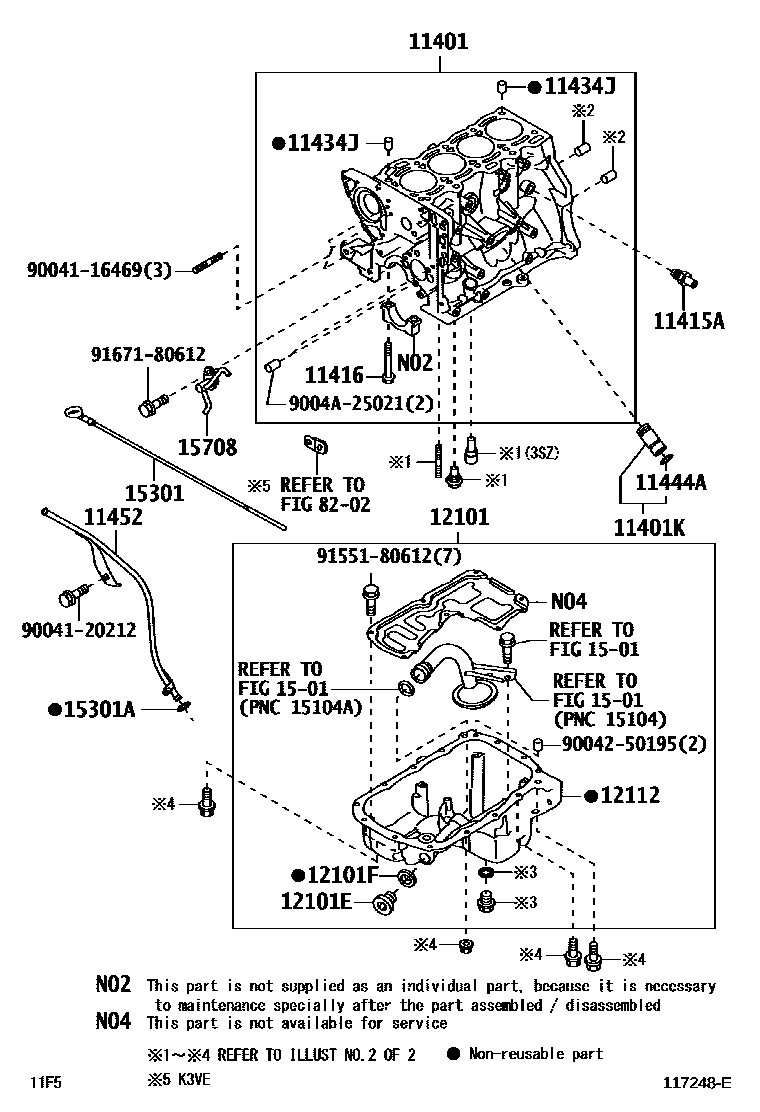

Toyota AVANZA — CYLINDER BLOCK

0001 1ILLUST NO.1 OF 2 0002 1ILLUST NO.2 OF 2 0003 1ILLUST NO.1 OF 2 0004 1ILLUST NO.2 OF 2

11401BLOCK SUB-ASSY, CYLINDER

main11401-B9491i3SZVE..F652..IDN201111-201507

main11401-B9491i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main11401-B9500iK3VE..F651..GEN,MA,PHL,SA201111-201508

main11401-B9500iK3VE..F651..IDN201111-201507

main11410-B9010i1NRVE..F653..IDN,MA201507-201901

main11410-B9010i1NRVE..F653..GEN,PHL,SA201507-201904

main11410-B9010i1NRVE..F653..(MID,SPO)..IDN201901-202110

main11410-B9010i1NRVE..F653..MID..GEN;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA)201901

main11410-B9020i2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main11410-B9020i2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main11410-B9020i2NRVE..F654..IDN201901-202110

main11410-B9020i2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

11401KUNION(FOR OIL FILTER BRACKET)

main90044-04120iK3VE,3SZVE..F65#..IDN¥880201111-201507

main90044-04120iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥880201111-201508

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90048-08005iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥230201111-201508

main90048-08005iK3VE,3SZVE..F65#..IDN¥230201111-201507

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05271iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥290201111-201508

main90041-05271iK3VE,3SZVE..F65#..IDN¥290201111-201507

main90910-02175i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥190201507-201901

main90910-02175i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥190201507-201904

main90910-02175i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥190201901-202110

main90910-02175i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥190201901

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90042-53013iK3VE,3SZVE..F65#..IDN¥210201111-201507

main90042-53013iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥210201111-201508

main90253-13017i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥140201507-201901

main90253-13017i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥140201507-201904

main90253-13017i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥140201901-202110

main90253-13017i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥140201901

11444ARING, O

main90301-T0055i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main90301-T0055i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main90301-T0055i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main90301-T0055i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main96723-24016iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥140201111-201508

main96723-24016iK3VE,3SZVE..F65#..IDN¥140201111-201507

11452GUIDE, OIL LEVEL GAGE

main11409-BZ100i1NRVE,2NRVE..F653,654201507-201807

sub11409-BZ101

main11409-BZ101i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201808-201904

main11409-BZ101i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201808-201901

main11409-BZ101i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main11409-BZ101i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

main11452-BZ040i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main11452-BZ040i3SZVE..F652..IDN201111-201507

main11452-BZ050iK3VE..F651..IDN201111-201507

main11452-BZ050iK3VE..F651..GEN,MA,PHL,SA201111-201508

12101PAN SUB-ASSY, OIL

main12101-B1040iK3VE,3SZVE..F65#..IDN201111-201507

main12101-B1040iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main12101-BZ090i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main12101-BZ090i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main12101-BZ090i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main12101-BZ090i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

12101EPLUG, OIL PAN(FOR OIL COOLER)

main90043-41076iK3VE,3SZVE..F65#..IDN¥210201111-201507

main90043-41076iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥210201111-201508

12101FGASKET(FOR OIL COOLER)

main90044-30290iK3VE,3SZVE..F65#..IDN¥210201111-201507

main90044-30290iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥210201111-201508

12112PAN, OIL NO.2

main12111-B1040iK3VE,3SZVE..F65#..IDN¥10,400201111-201507

main12111-B1040iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥10,400201111-201508

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-BZ040iK3VE,3SZVE..F65#..IDN201111-201507

main15301-BZ040iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main15301-BZ100i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main15301-BZ100i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main15301-BZ100i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main15301-BZ100i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901

15301ARING, O(FOR OIL LEVEL GAGE)

main9004A-30048i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥130201901-202110

main9004A-30048i1NRVE,2NRVE..F653,654¥130201507-201904

main9004A-30048i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥130201901

main96721-19009iK3VE,3SZVE..F65#..IDN¥130201111-201507

main96721-19009iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥130201111-201508

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0Y040i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)¥820201507-201901

main15708-0Y040i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥820201507-201904

main15708-0Y040i1NRVE,2NRVE..F65#..(MID,SPO)..IDN¥820201901-202110

main15708-0Y040i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)¥820201901

main15708-97402iK3VE,3SZVE..F65#..IDN¥1,390201111-201507

main15708-97402iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH¥1,390201111-201508

8202

9004116469

main90041-16469¥170

9004120212

main90041-20212¥140

9004250195

main90042-50195¥110

9004A25021

main9004A-25021

9155180612

main91551-80612¥60

9167180612

main91671-80612¥60

22 parts on this diagram · 4 diagrams in section
