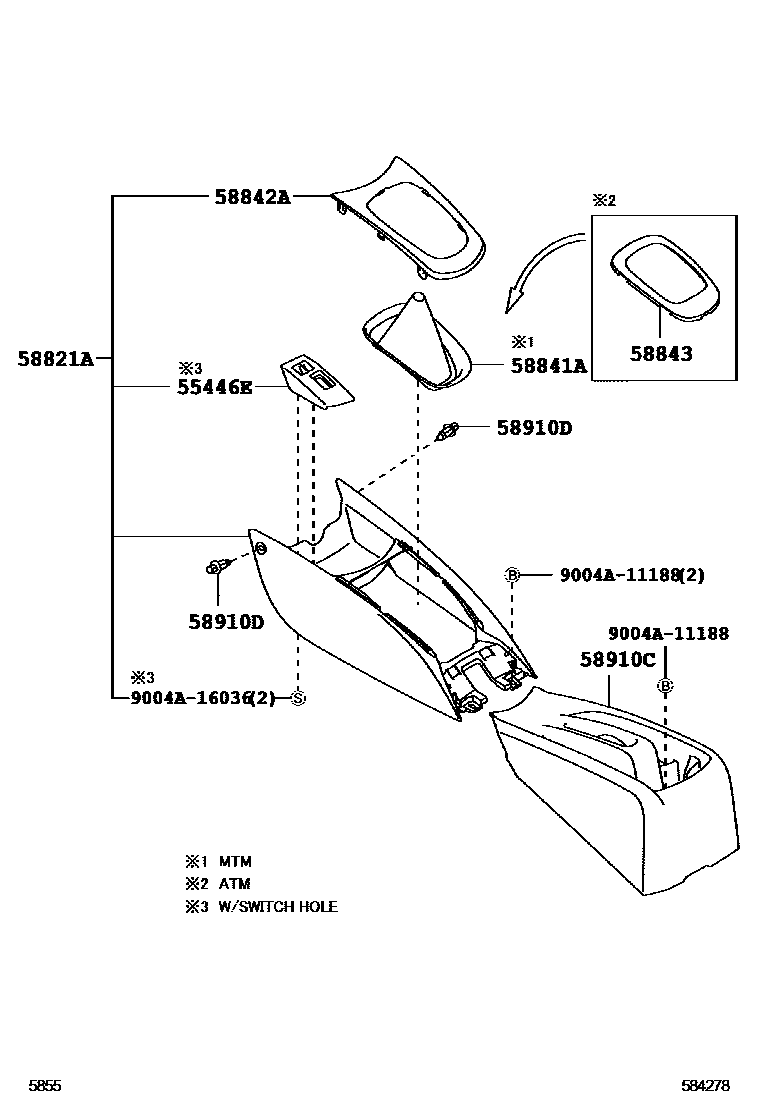

Toyota AVANZA — CONSOLE BOX & BRACKET

0001 1W/ RR CONSOLE 0002 1W/O RR CONSOLE 0003 1W/RR CONSOLE 0006 1W/RR CONSOLE 0007 1W/O RR CONSOLE

55446EBASE, SWITCH HOLE, NO.1

main55407-BZ010-B0iF652..MA;F652..MID..SA;F652..SPO..TH201111-201508

MD.GRAY,TRIM1#

main55407-BZ010-B0iF652..SPO..IDN201111-201507

MD.GRAY,TRIM1#

main55407-BZ010-E0iF652..GCC,GEN,PHL201112-201508

-,TRIM4#

58821APANEL, CONSOLE

main58821-BZ080-C0iF651..MID..GEN201111-201508

-,TRIM4#

main58821-BZ080-C0iF65#..(MID,STD)..IDN201111-201507

-,TRIM4#

main58821-BZ080-C1iF652..5F..STD..SA;F652..5F..(MXC,TH);F652..4AT..(MID,STD)..(MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

-,TRIM1#

main58821-BZ150-C0iF652..GCC,GEN,PHL201112-201508

BLACK,TRIM4#

main58821-BZ150-C1iF652..SPO..IDN201111-201507

BLACK,TRIM1#

main58821-BZ150-C1iF652..MA;F652..MID..SA;F652..SPO..TH201111-201508

BLACK,TRIM1#

58841ACOVER, SHIFTING HOLE

main58841-BZ130-C0iF654..5F..(GCC,PHL)201507-201904

BLACK,TRIM4#

main58841-BZ130-C0iF654..5F..(GCC,PHL)201507-201904

BLACK,TRIM1#

main58841-BZ130-C0iF65#..5F..SPO201901-202110

BLACK,TRIM1#

main58841-BZ130-C0iF65#..5F..SPO201901-202110

BLACK,TRIM4#

main58841-BZ130-C0iF654..5F..GCC201901-202201

BLACK,TRIM4#

main58841-BZ130-C0iF654..5F..PHL;F653..5F..STD..IDN201901

BLACK,TRIM1#,4#

main58841-BZ130-C0iF654..5F..PHL;F653..5F..STD..IDN201901

BLACK,TRIM1#

main58841-BZ130-C0iF65#..5F..(MID,STD)..IDN201111-201507

BLACK,TRIM4#

main58841-BZ130-C0iF65#..5F..(MID,STD)..IDN201111-201507

BLACK,TRIM1#

main58841-BZ130-C0iF652..5F..(MXC,SA,TH);F651..5F..(GEN,MA,PHL,SA)201111-201508

BLACK,TRIM1#

main58841-BZ130-C0iF652..5F..(MXC,SA,TH);F651..5F..(GEN,MA,PHL,SA)201111-201508

BLACK,TRIM4#

main58841-BZ130-C0iF653..MA;F653..5F..SPO;F654..5F..(SPO,STD)..(IDN,TH)201507-201901

BLACK,TRIM1#

main58841-BZ130-C0iF653..MA;F653..5F..SPO;F654..5F..(SPO,STD)..(IDN,TH)201507-201901

BLACK,TRIM4#

58842AFRAME, SHIFTING HOLE

main58842-BZ060-C0iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

BLACK,TRIM4#

main58842-BZ060-C0iF65#..(MID,STD)..IDN201111-201507

BLACK,TRIM4#

main58842-BZ060-C0iF65#..(MID,STD)..IDN201111-201507

BLACK,TRIM1#

main58842-BZ060-C0iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

BLACK,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-BZ090-C0iF651..4AT..IDN201111-201507

BLACK,TRIM1#

sub58843-BZ090

main58843-BZ090-C0iF651..4AT..IDN201111-201507

BLACK,TRIM4#

sub58843-BZ090

main58843-BZ090-C0iF651..MID..GEN;F652..4AT..(GCC,GEN,PHL)201111-201508

BLACK,TRIM4#

sub58843-BZ090

main58843-BZ090-C0iF651..MID..GEN;F652..4AT..(GCC,GEN,PHL)201111-201508

BLACK,TRIM1#

sub58843-BZ090

main58843-BZ090-C0iF653..4AT..(MID,STD)..(GEN,IDN);F654..4AT..(MID,STD)..(GCC,GEN,PHL)201507-201801

BLACK,TRIM4#

sub58843-BZ090

main58843-BZ090-C0iF653..4AT..(MID,STD)..(GEN,IDN);F654..4AT..(MID,STD)..(GCC,GEN,PHL)201507-201801

BLACK,TRIM1#

sub58843-BZ090

main58843-BZ090-C1iF65#..4AT..(GCC,GEN)201901

BLACK,TRIM4#

sub58843-BZ090

main58843-BZ090-C1iF653..4AT..MID..IDN201901-202110

BLACK,TRIM1#

sub58843-BZ090

main58843-BZ090-C1iF653..4AT..(MID,STD)..(GEN,IDN);F654..4AT..(MID,STD)..(GCC,GEN,PHL)201801-201904

BLACK,TRIM4#

sub58843-BZ090

main58843-BZ090-C1iF653..4AT..(MID,STD)..(GEN,IDN);F654..4AT..(MID,STD)..(GCC,GEN,PHL)201801-201904

BLACK,TRIM1#

sub58843-BZ090

main58843-BZ090-C1iF653..4AT..MID..IDN201901-202110

BLACK,TRIM4#

sub58843-BZ090

main58843-BZ090-C1iF654..4AT..(MID,STD)..(MXC,TH);F65#..4AT..(SPO,STD)..(MA,PHL,SA)201901-202201

BLACK,TRIM1#

sub58843-BZ090

main58843-BZ090-C1iF653..4AT..STD..IDN;F654..4AT..MID..PHL201901

BLACK,TRIM1#,4#

sub58843-BZ090

58910CBOX ASSY, CONSOLE, REAR

main58911-BZ070-B0iF652..SPO..IDN201111-201507

MD.GRAY,TRIM1#

main58911-BZ070-B0iF651..STD..PHL;F651..(LO,STD)..SA;F652..MA,MXC,SA,TH201111-201508

MD.GRAY,TRIM1#

main58911-BZ070-B1iF653..SPO;F653..STD..PHL;F653..(LO,STD)..SA;F654..MID..(MXC,SA,TH);F654..(SPO,STD)..(IDN,PHL,SA,TH)201507-201712

DK.GRAY,TRIM1#

main58911-BZ070-E0iF652..MID..(GCC,GEN,PHL)201111-201508

-,TRIM4#

main58911-BZ070-E0iF65#..(MID,STD)..IDN201111-201507

-,TRIM4#

main58911-BZ070-E1iF653..(MID,STD)..IDN;F654..MID..(GCC,GEN,IDN,PHL)201507-201712

OAK,TRIM4#

58910DCLIP(FOR CONSOLE BOX)

main90044-67579-B2iF652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201508

MD.GRAY,TRIM1#

main90044-67579-B2iF652..SPO..IDN201111-201507

MD.GRAY,TRIM1#

main90044-67579-E2iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

-,TRIM4#

main90044-67579-E2iF65#..(MID,STD)..IDN201111-201507

-,TRIM4#

main90467-05171iF65#¥60201712-201904

main90467-05171iF65#..(MID,SPO)..IDN¥60201901-202110

main90467-05171iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥60201901

9004A11188

main9004A-11188¥110

9004A16036

main9004A-16036¥110

9 parts on this diagram · 5 diagrams in section
