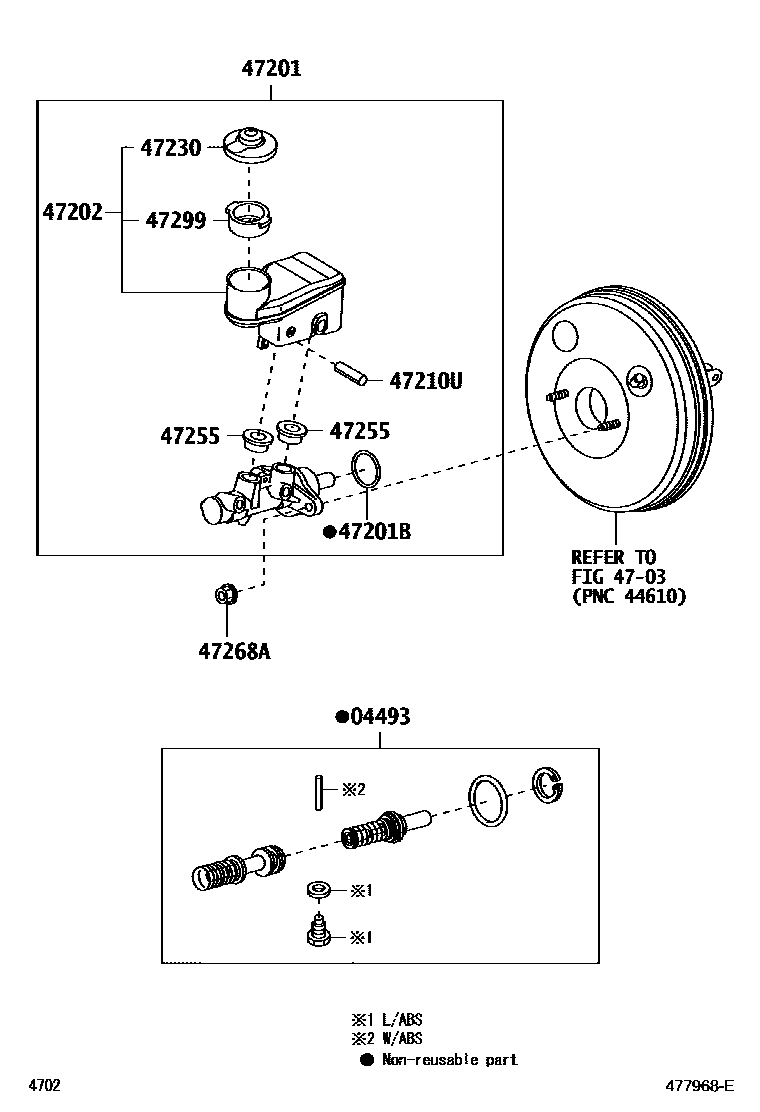

Toyota AVANZA — BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-B1040iF651..LHD..LO;F651..STD..PHL;F652..4AT..MXC201112-201508

L/ABS

main04493-B1040iF652..5F..MXC;F651,652..STD..(MA,TH)201111-201508

main04493-B1050iF651..STD..GEN201112-201508

W/ABS

main04493-B1050iF652..SPO..IDN201111-201508

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZ020iF651..SA;F652..4AT..SA;F652..(MID,SPO)..(MA,TH)201111-201508

main47201-BZ090iF651..LHD..LO;F651..STD..PHL;F652..4AT..MXC201112-201508

main47201-BZ100iF652..5F..SPO201111-201508

main47201-BZ110iF652..5F..MXC201112-201508

main47201-BZ120iF651..MA;F652..4AT..STD..(MA,TH)201111-201508

main47201-BZ130iF652..5F..TH201111-201508

main47201-BZ140iF651..MID..GEN;F652..4AT..(GCC,GEN,PHL)201112-201508

main47201-BZ150iF652..5F..(GCC,PHL)201112-201508

main47201-BZ530iF653..SA201507-202110

TYPE D

main47201-BZ530iF654..4AT..SA201507-202110

TYPE A

main47201-BZ550iF65#..4AT..(GEN,MXC,PHL)201508-201904

TYPE E

main47201-BZ560iF654..5F..IDN201507-202110

TYPE B

main47201-BZ570iF654..5F..(GEN,MXC,PHL)201508-201904

TYPE C

main47201-BZ640iF654..4AT..SA201609-202201

TYPE I

main47201-BZ640iF654..4AT..SA201609-202201

TYPE F

main47201-BZ650iF654..5F..SA201609-202201

TYPE G

main47201-BZ660iF654..4AT..GCC201609-202201

TYPE J

main47201-BZ670iF654..5F..GCC201609-202201

TYPE H

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥110201507-202110

main9004A-30021iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-BZ020iF651..GEN,MA,PHL,SA;F652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main47220-BZ070iF652..5F..IDN201111-201508

main47220-BZ280iF654..4AT..IDN;F653..(MID,SPO)..IDN201507-202110

main47220-BZ290iF654..5F..IDN201507-202201

main47220-BZ300iF654..LHD..5F201508-201904

main47220-BZ320iF653..LHD;F654..LHD..4AT201508-201904

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥150201507-202110

main9004A-24023iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ020iF65#201111-201501

sub47230-BZ021

main47230-BZ021iF65#201502-201506

sub47230-BZ130¥1,200

main47230-BZ130iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥1,200201507-202110

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ010iF65#..IDN¥390201111-201508

main47255-BZ110iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥170201507-202110

main9004A-17135iF65#..IDN201111-201508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ010iF65#..IDN201111-201508

main47299-BZ090iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

10 parts on this diagram · 2 diagrams in section
