Toyota AVANZA — BATTERY & BATTERY CABLE

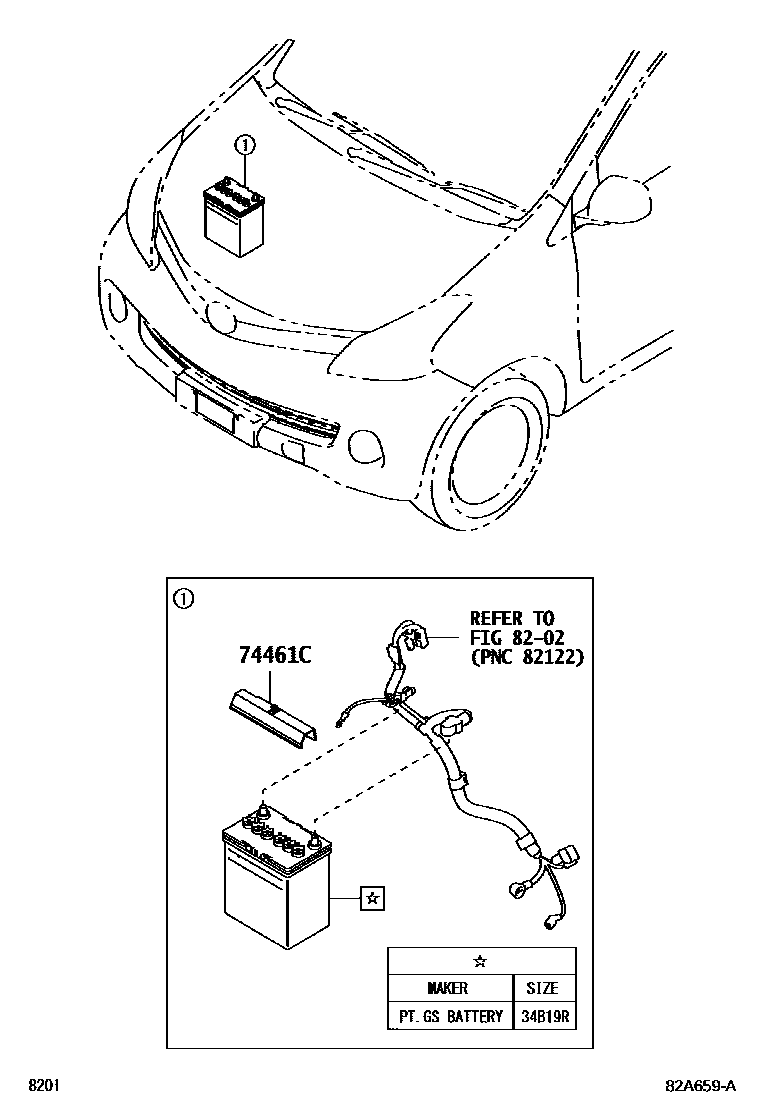

Parts diagram

74461CCOVER, BATTERY

main58441-BZ010i201111-201508

main58441-BZ080i201508-202201

8202

2 parts on this diagram · 2 diagrams in section
