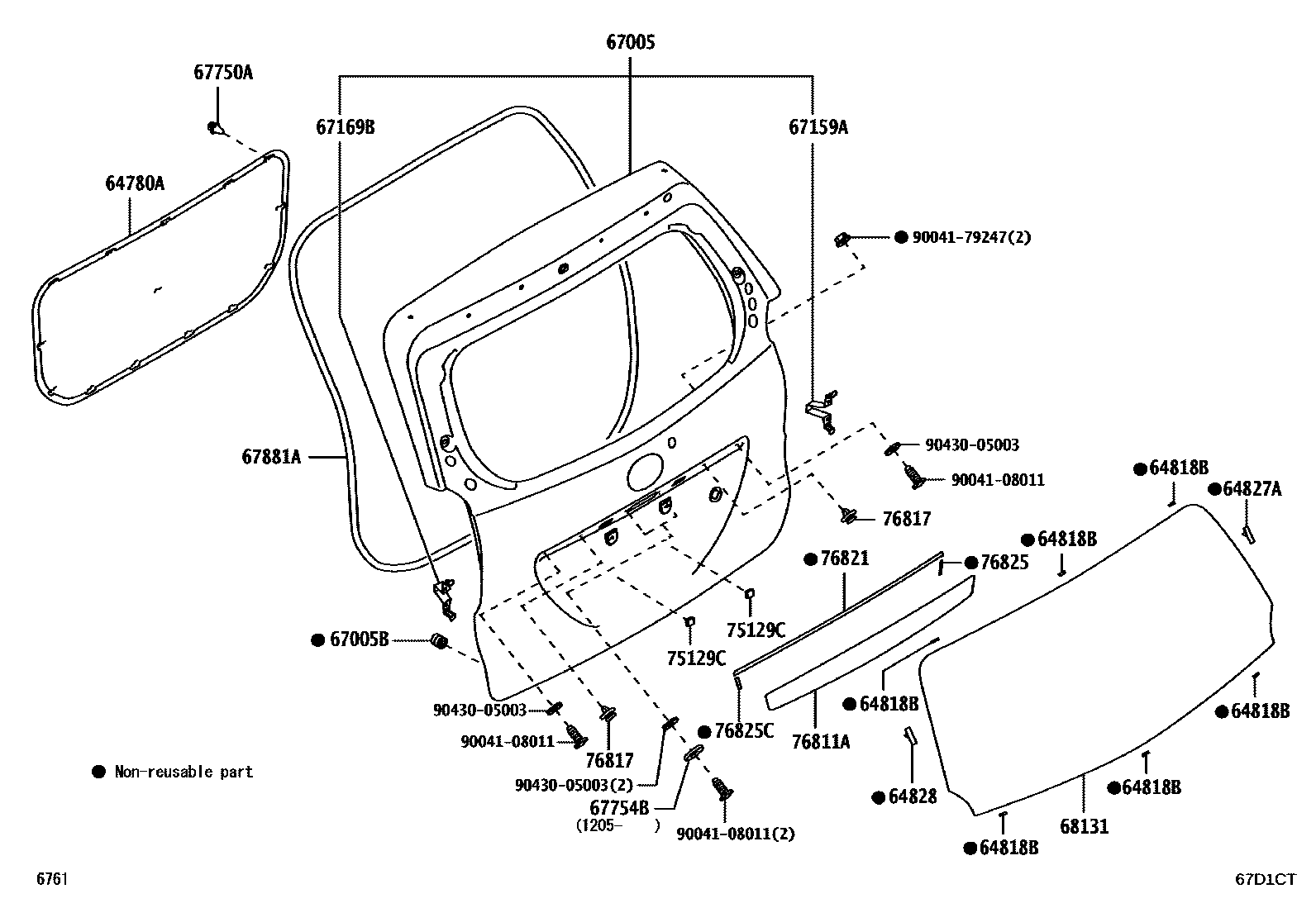

Toyota AVANZA — BACK DOOR PANEL & GLASS

0001 1 0002 1 0004 1 0006 1 0008 1BACK DOOR 0010 1BACK DOOR GARNISH(ONE-PIECE) 0013 1BACK DOOR GARNISH(SEPARATE)

64780APANEL ASSY, BACK DOOR TRIM

main64780-BZ140-B0iF652..SPO..IDN201111-202110

DK.GRAY,TRIM1#

main64780-BZ140-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904

DK.GRAY,TRIM4#

main64780-BZ140-E0iF651..MID..GEN;F652..GCC,GEN,PHL201111-201508

-,TRIM4#

main64780-BZ140-E1iF653..STD..IDN;F65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201901-202110

LINEN BEIGE,TRIM4#

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-BZ050iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

64827ACLIP, BACK WINDOW GLASS, RH

main64827-BZ050iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

64828CLIP, BACK WINDOW GLASS, LH

main64828-BZ020iF65#..IDN201111-202110

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZ500iF651..LO..PHL201112-201404

W/O RR WIPER

sub67005-BZ590

main67005-BZ510iF651..STD..IDN201111-201507

W/RR WIPER

sub67005-BZD50

sub90048-71238¥280

sub9004A-35010

main67005-BZ510iF653..STD..IDN201507-201811

sub67005-BZD50

sub90048-71238¥280

sub9004A-35010

main67005-BZ520iF65#..MID..IDN201111-201507

main67005-BZ530iF651..STD..PHL201112-201811

sub67005-BZD60

sub90048-71238¥280

sub9004A-35010

main67005-BZ540iF652..SPO..IDN201111-201811

sub67005-BZD70

sub90048-71238¥280

sub9004A-35010

main67005-BZ580iF651..GEN,SA;F652..STD..(SA,TH)201111-201811

sub67005-BZD80

sub90048-71238¥280

sub9004A-35010

main67005-BZ590iF652..MXC201112-201508

W/O RR WIPER

sub67005-BZD90

sub90048-71238¥280

sub9004A-35010

main67005-BZ590iF654..MXC;F653..LO..PHL201508-201811

sub67005-BZD90

sub90048-71238¥280

sub9004A-35010

main67005-BZ600iF652..(MID,SPO)..(GCC,GEN,SA,TH)201111-201811

sub67005-BZE00

sub90048-71238¥280

sub9004A-35010

main67005-BZ820iF652..STD..GCC201404-201811

sub67005-BZE10

sub90048-71238¥280

sub9004A-35010

main67005-BZA30iF654..SPO..IDN201507-201904

main67005-BZA40iF654..MID..IDN;F653..(MID,SPO)..IDN201507-201901

main67005-BZC30iF654..MID..IDN;F653..(MID,SPO)..IDN201901-202110

main67005-BZC60iF654..MID..GEN201904-202201

NEW STYLE FOR LHD GEN EXP

main67005-BZC70iF654..MXC202201

main67005-BZC80iF654..SPO..IDN201901-202201

main67005-BZC90iF653..STD..PHL201904-202201

main67005-BZD50iF653..STD..IDN201812-201901

main67005-BZD60iF653..STD..PHL201812-201904

main67005-BZD70iF653..MID..IDN;F654..4AT..IDN201812-201901

RHD GENERAL COUNTRIES

main67005-BZD70iF654..MID..PHL;F654..(SPO,STD)..MA201812-202201

main67005-BZD80iF653..5F..(GEN,SA);F654..STD..(SA,TH)201812-201904

main67005-BZD90iF654..MXC;F653..LO..PHL201812-202201

main67005-BZE00iF654..SPO..TH201812-201904

main67005-BZE10iF654..4AT..MXC201812-201904

MEXICO LUXURY

main67005-BZE10iF654..STD..GCC201904-202201

67005BCUSHION(FOR BACK DOOR PANEL)

main9004A-54016iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)¥170201111-202110

67159AEXTENSION, BACK DOOR, INNER RH

main67159-BZ030iF65#..IDN201111-202110

67169BEXTENSION, BACK DOOR, INNER LH

main67159-BZ030iF65#..IDN201111-202110

67750ACLIP(FOR BACK DOOR TRIM)

main67771-BZ060iF65#..IDN201111-202110

67754BSPACER, BACK DOOR TRIM

main67754-BZ040iF65#201205-201207

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ140iF65#..IDN201111-202110

68131GLASS, BACK DOOR

main68105-BZ210iF652..SPO,STD;F651..STD..PHL;F652..MID..(GEN,MA,MXC,PHL,TH);F651..(LO,MID,STD)..(GEN,MA,SA)201111-201202

T=3.1,GREEN,W/ DEFOGGER

sub68105-BZ211

main68105-BZ211iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

W/ DEFOGGER

main68105-BZ211iF651..STD..PHL;F652..5F..STD..SA;F652..5F..(MXC,PHL,TH);F651..(LO,MID,STD)..(GEN,MA,SA);F652..4AT..(GEN,MA,MXC,PHL,SA,TH)201203-201508

T=3.1,GREEN,W/ DEFOGGER

main68105-BZ230iF652..MID..SA201111-201202

T=3.1,SMOKE,W/ DEFOGGER

sub68105-BZ231

main68105-BZ231iF654..MID..SA201508-201904

W/ DEFOGGER

main68105-BZ231iF652..MID..SA201203-201508

T=3.1,SMOKE,W/ DEFOGGER

main68131-BZ420iF651..LO..PHL;F651..STD..IDN;F652..MID..IDN;F651..RHD..(MID,VB)201111-201202

T=3.1,GREEN,W/O DEFOGGER

sub68131-BZ421

main68131-BZ421iF65#..(MID,STD)..IDN201203-201508

T=3.1,GREEN,W/O DEFOGGER

main68131-BZ421iF654..MID..IDN;F653..(MID,SPO)..IDN201507-202110

W/O DEFOGGER

75129CCUSHION, REAR LICENCE PLATE

main75129-BZ010iF65#..IDN201111-202110

sub75129-87502¥170

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-BZ190iF652..SPO;F652..MID..(GEN,MA,MXC,PHL,SA)201111-201207

main76811-BZ191iF652..SPO..TH;F652..(MID,SPO)..(GCC,GEN,MA,MXC,PHL,SA)201207-201508

main76811-BZ230iF651;F652..STD;F652..MID..(IDN,TH)201111-201207

main76811-BZ231iF652..STD;F652..MID..TH;F651..GEN,MA,PHL,SA201207-201508

main76811-BZ250iF654..MID..TH;F654..4AT..STD;F653..GEN,PHL,SA;F654..5F..STD..(GCC,GEN,SA)201507-201904

main76811-BZ270iF654..5F..MXC201508-202112

main76811-BZ340iF653,654..MID..IDN201507-201901

main76811-BZ360iF654..SPO..PHL201507-201904

main76811-BZ540iF654..MXC201901-202110

main76811-BZ550iF654..SPO..(MA,PHL)201901-202201

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90044-67474iF653..LO..GEN;F653..STD..IDN¥80201111-202201

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-BZ030iF653..LO..PHL;F654..MID..TH;F654..4AT..STD;F654..5F..STD..(GCC,SA);F653..(LO,STD,VB)..(GEN,IDN,SA)201507-201904

main76821-BZ070iF65#..IDN201111-201508

main76821-BZ200iF654..MXC201901-202110

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-BZ020iF65#..IDN201111-201508

main76825-BZ040iF654..MID..GEN201508-202201

main76825-BZ050iF653..LO..PHL;F654..MID..TH;F654..4AT..STD;F653..STD..GEN;F65#..5F..(LO,STD,VB)..(GCC,SA)201507-202201

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-BZ020iF65#..IDN201111-201508

main76835-BZ010iF654..SPO..TH;F654..MID..MA201508-202201

main76835-BZ030iF654..5F..TH;F653..STD..(IDN,MA)201507-202201

9004108011

main90041-08011¥210

9004179247

main90041-79247¥110

9043005003

main90430-05003¥60

21 parts on this diagram · 7 diagrams in section
