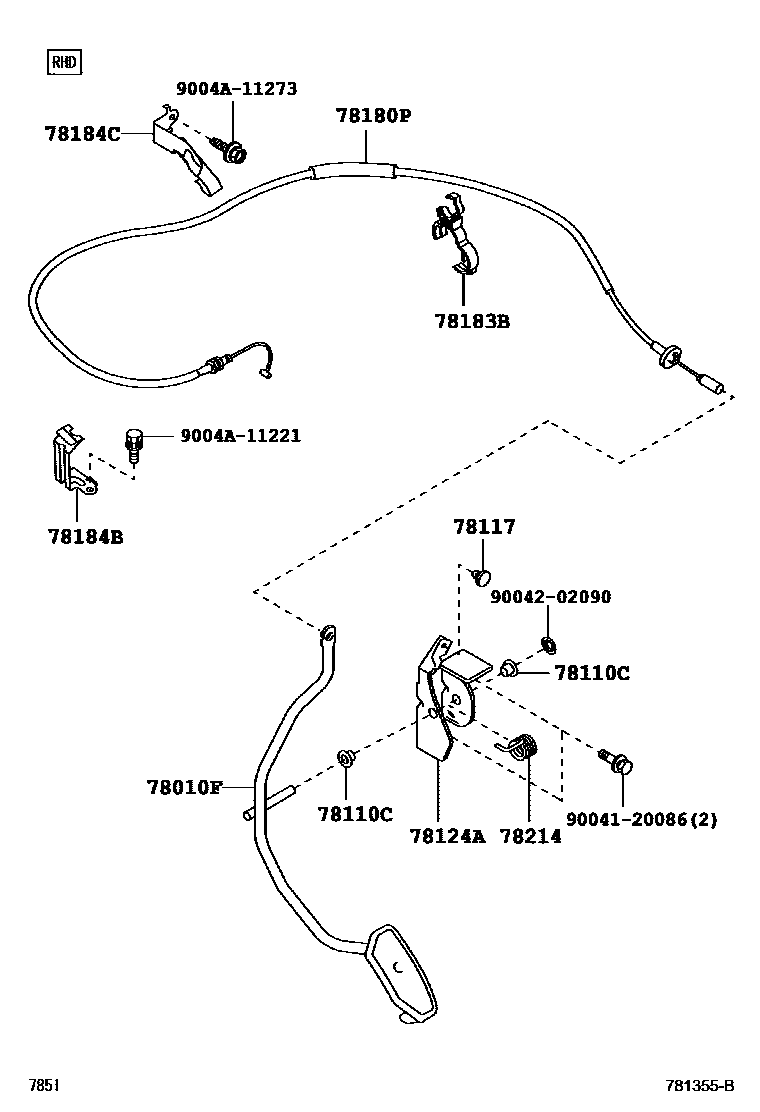

Toyota AVANZA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78010FPEDAL ASSY, ACCELERATOR

main78101-BZ130iF651,652..MA,SA,TH201111-201508

main78101-BZ130iF65#..IDN201111-201507

main78101-BZ140iF651,652..LHD201112-201508

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main9004A-38011iF65#..IDN201111-201507

main9004A-38011iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

78117CUSHION (FOR ACCELERATOR ROD)

main9004A-54009iF65#..IDN201111-201507

main9004A-54009iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-BZ080iF651,652..MA,SA,TH201111-201508

main78124-BZ080iF65#..IDN201111-201507

main78124-BZ090iF651,652..LHD201112-201508

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-BZ091iF65#..LHD201112-201405

main78180-BZ190iF652..MA,SA,TH201111-201508

main78180-BZ190iF652..IDN;F651..4AT..IDN201111-201507

main78180-BZ210iF651..5F..IDN201111-201507

main78180-BZ210iF651..MA,SA201111-201508

main78180-BZ320iF651,652..LHD201406-201508

78183BCLAMP, ACCELERATOR CONTROL CABLE

main90044-64879iF651,652..MA,SA,TH201111-201508

main90044-64879iF65#..IDN201111-201507

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-BZ070iF65#..IDN201111-201507

main78184-BZ070iF651,652..MA,SA,TH201111-201508

78184CBRACKET, ACCELERATOR CONTROL CABLE

main31341-BZ010iF652..IDN;F651..4AT..IDN201111-201507

main31341-BZ010iF652..MA,SA,TH201111-201508

78214SPRING, ACCELERATOR LINK ROD RETURN

main78214-BZ010iF65#..IDN201111-201507

main78214-BZ010iF651,652..MA,SA,TH201111-201508

main78214-BZ030iF651,652..LHD201112-201508

9004120086

main90041-20086¥60

9004202090

main90042-02090¥140

9004A11221

main9004A-11221

9004A11273

main9004A-11273

13 parts on this diagram · 4 diagrams in section
