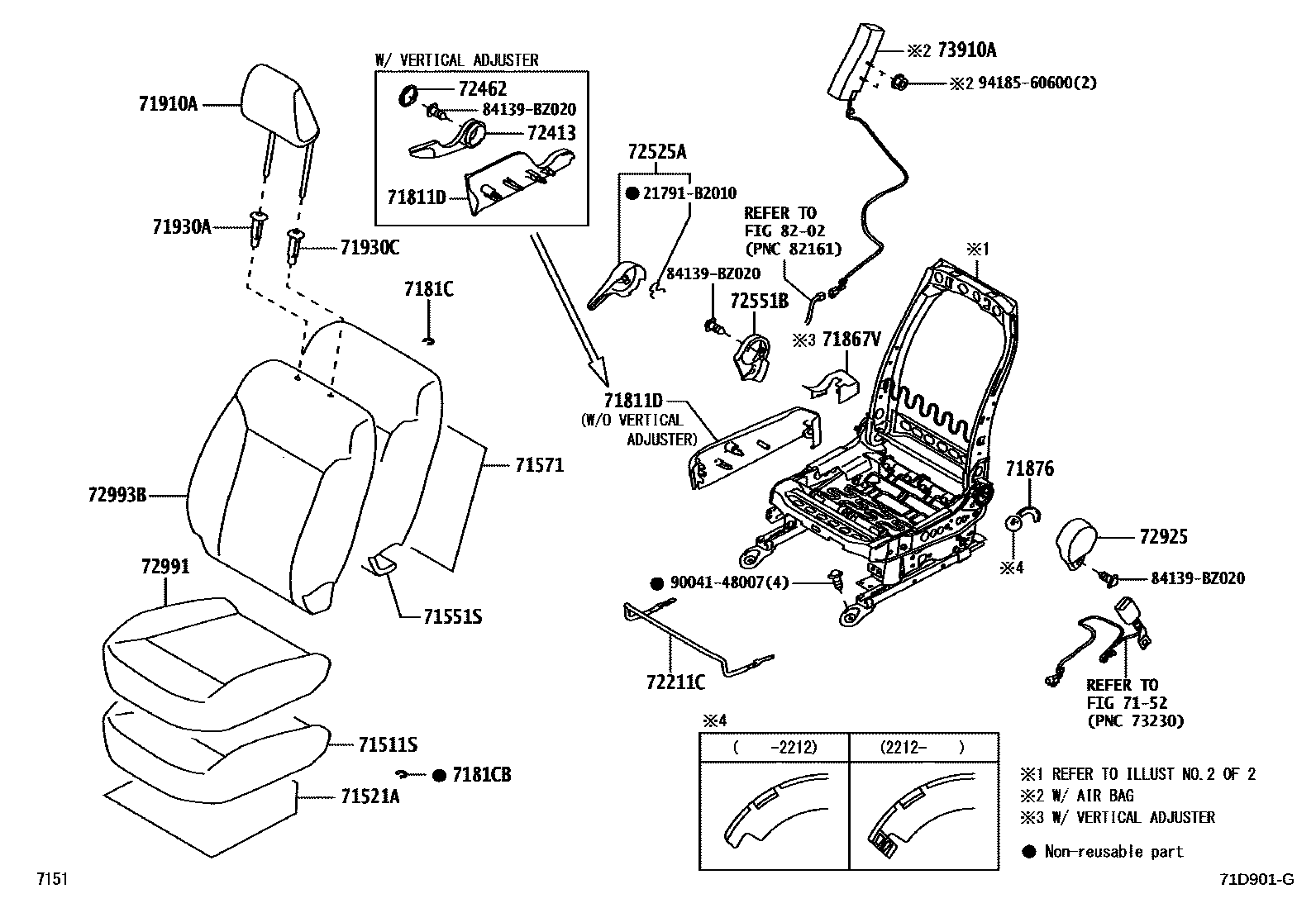

Toyota AVANZA/VELOZ — SEAT & SEAT TRACK

0001 1FR RH 0002 1FR RH 0003 1FR LH 0004 1FR LH 0005 1FR RH 0008 1FR RH 0011 1FR RH 0012 1FR RH 0013 1FR RH 0014 1FR LH 0017 1FR LH 0020 1FR LH 0021 1FR LH 0022 1RR NO.1 SEAT(RH) 0023 1RR NO.1 SEAT(RH) 0025 1RR NO.1 SEAT(RH) 0026 1RR NO.1 SEAT(RH) 0028 1RR NO.1 SEAT(RH) 0029 1RR NO.1 SEAT(LH) 0031 1RR NO.1SEAT(LH) 0032 1RR NO.2 SEAT(SEPARATE TYPE) R0034 1RR NO.2 SEAT(SEPARATE TYPE) R0035 1RR NO.2 SEAT(SEPARATE TYPE) L0037 1RR NO.2 SEAT(SEPARATE TYPE) L

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ570iW101..VN202111-202309

main71501-BZ570iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main71501-BZ790iW101..VN202309

7152

71521APAD,FRONT SEAT CUSHION SILENCER

main71147-B1020iW10#¥560202111-202210

main71147-BZ180iW101..VN202211-202309

main71147-BZ180iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202211

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ580iW101..5F..VN202111-202309

main71505-BZ580iW101..MXC202111-202209

main71505-BZ580iW100;W101..GEN,IDN;W101..5F..PHL202111

main71505-BZ590iW101..(S,V)..VN202201-202309

W/AIR BAG

main71505-BZ590iW101..CVT..M..PHL202201

W/AIR BAG

main71505-BZ590iW101..MXC202209

W/AIR BAG

main71505-BZ780iW101..5F..VN202309

main71505-BZ790iW101..CVT..VN202309

71571PAD, FRONT SEATBACK SILENCER, A

main71147-B2160iW10#¥560202111-202210

main71147-BZ160iW101..MXC202211

PERU + BOLIVIA

main71147-BZ160iW101..5F..VN202211-202309

main71147-BZ170iW101..CVT..M..PHL;W101..(G,S,V)..(GCC,MXC,PHL,THAI)202211

REAR & REAR SIDE MONITOR(BSM + RCTA)

main71147-BZ170iW101..CVT..VN202211-202309

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ310-C0iW101..CVT..VN202309

BLACK,TRIM2#

main71811-BZ320-C0iW101..VN202111-202309

BLACK,TRIM2#

main71811-BZ320-C0iW100;W101..LHD..(GCC,GEN,MXC,PHL)202111

BLACK,TRIM2#

main71811-BZ330-C0iW101..RHD202111

BLACK,TRIM2#

main71811-BZ490-C0iW101..5F..VN202309

BLACK,TRIM2#

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main9004A-46143iW101..VN¥80202111-202309

main9004A-46143iW100..D;W101..5F..GEN¥80202111

main90468-18008iW101..VN¥80202309

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main9004A-46143iW101..VN¥80202111-202309

main9004A-46143iW100,101..GCC,GEN,IDN,MXC,PHL,THAI¥80202111

main90468-18008iW101..VN¥80202309

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-B1010-C0iW101..RHD202111

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-B2060-C0iW10#202111-202212

BLACK,TRIM2#

main71876-BZ250iW101..CVT..VN;W101..LHD..5F..M202212-202309

main71876-BZ250-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202212

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-BZG50-C5iW100..D;W101..5F..GEN202111

-,TRIM2#

main71910-BZG60iW101..(S,V)..VN202212-202309

main71910-BZG60-C6iW101..(S,V)..(GCC,IDN,PHL,THAI)202111

LIGHT GREY,TRIM2#

main71910-BZJ70iW101..M..VN202212-202309

main71910-BZJ70-C3iW101..MXC;W101..CVT..G..GEN;W100,101..M..(GEN,IDN,PHL)202111

BLACK,TRIM2#

main71910-BZM90-C0iW101..M..VN202309

BLACK,TRIM2#

main71910-BZN00-C0iW101..(S,V)..VN202309

LIGHT GREY,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71931-B2030-C0iW101..VN202111-202309

W/O(LOCK),BLACK,TRIM2#

main71931-B2030-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

W/O(LOCK),BLACK,TRIM2#

main71931-BZ120-C0iW101..VN202309

W/O(LOCK),BLACK,TRIM2#

71930CSUPPORT, FRONT SEAT HEADREST, LH

main71930-B2030-C0iW101..VN202111-202309

BLACK,TRIM2#

main71930-B2030-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

BLACK,TRIM2#

main71930-BZ110-C0iW101..VN202309

BLACK,TRIM2#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-BZ170iW100,101202111

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-B1050iW101..VN¥1,470202111-202309

main72211-B1050iW100,101..GCC,GEN,IDN,MXC,PHL,THAI¥1,470202111

main72211-BZ180iW101..VN202309

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-BZ070-C0iW101..RHD202111-202311

BLACK,TRIM2#

sub72413-BZ071

main72413-BZ071-C0iW101..RHD202312

BLACK,TRIM2#

main72413-BZ090-C0iW101..CVT..(G,S,V)..(GCC,GEN,PHL)202201-202311

BLACK,TRIM2#

sub72413-BZ091

main72413-BZ090-C0iW101..(S,V)..VN202201-202309

BLACK,TRIM2#

sub72413-BZ091

main72413-BZ091-C0iW101..CVT..(G,S,V)..(GCC,GEN,PHL)202312

BLACK,TRIM2#

72462COVER, VERTICAL ADJUSTER RH

main72462-BZ060-C0iW101..RHD202111

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ140-C0iW101..VN202111-202309

BLACK,TRIM2#

main72525-BZ140-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

BLACK,TRIM2#

main72525-BZ150-C0iW101..VN202309

BLACK,TRIM2#

72551BCOVER, RECLINING HINGE, RH

main72551-BZ070-C0iW101..VN202111-202309

BLACK,TRIM2#

main72551-BZ070-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

BLACK,TRIM2#

72925COVER, FRONT SEAT CUSHION

main72991-BZ250-C0iW10#202111-202205

BLACK,TRIM2#

sub72991-BZ350

main72991-BZ340iW101..MXC202206-202209

main72991-BZ340iW101..VN202206-202309

main72991-BZ340-C0iW100,101..GCC,GEN,IDN,PHL,THAI202206

BLACK,TRIM2#

main72991-BZ340-C0iW101..MXC202209

BLACK,TRIM2#

72991COVER, FRONT SEAT CUSHION, RH

main71071-BZQ60-C3iW100..D;W101..5F..GEN202111

BLACK,TRIM2#

main71071-BZQ90iW101..MXC202201-202209

main71071-BZQ90iW101..M..VN202201-202309

main71071-BZQ90-E4iW100,101..M..PHL;W101..CVT..G..GEN202201

BROWN,TRIM2#

main71071-BZQ90-E4iW101..MXC202209

BROWN,TRIM2#

main71071-BZR00-E3iW101..RHD..M202111

BROWN,TRIM2#

main71071-BZR10iW101..(S,V)..VN202212-202309

main71071-BZR10-C4iW101..(S,V)..(GCC,PHL)202201

BLACK,TRIM2#

main71071-BZR20-C3iW101..RHD..(S,V)202111

BLACK,TRIM2#

main71071-BZX50-E2iW101..5F..VN202309

BROWN,TRIM2#

main71071-BZX60-C2iW101..(S,V)..VN202309

BLACK,TRIM2#

main71071-BZX70-E1iW101..CVT..M..VN202309

BROWN,TRIM2#

72993COVER, FRONT SEATBACK

main72993-B2010-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

BLACK,TRIM2#

main72993-B2010-C0iW101..VN202111-202309

BLACK,TRIM2#

72993BCOVER, FRONT SEATBACK, RH

main71073-BY010-E0iW101..5F..VN202201-202309

BROWN,TRIM2#

main71073-BY010-E0iW100..M;W101..5F..PHL;W101..CVT..G..GEN202201

BROWN,TRIM2#

main71073-BY010-E0iW101..MXC202201-202209

BROWN,TRIM2#

main71073-BY020-E0iW101..MXC202209

BROWN,TRIM2#

main71073-BY020-E0iW101..CVT..M..VN202201-202309

BROWN,TRIM2#

main71073-BY020-E0iW101..CVT..M..PHL202201

BROWN,TRIM2#

main71073-BY030-C0iW101..(S,V)..(GCC,PHL)202201

BLACK,TRIM2#

main71073-BY030-C0iW101..(S,V)..VN202201-202309

BLACK,TRIM2#

main71073-BY120-E0iW101..5F..VN202309

BROWN,TRIM2#

main71073-BY130-E0iW101..CVT..M..VN202309

BROWN,TRIM2#

main71073-BY140-C0iW101..(S,V)..VN202309

BLACK,TRIM2#

main71073-BZS60-C1iW100..D;W101..5F..GEN202111

BLACK,TRIM2#

main71073-BZS80-E0iW101..RHD..M202111

BROWN,TRIM2#

main71073-BZT00-C0iW101..(S,V)..IDN202111

BLACK,TRIM2#

main71073-BZT10-C0iW101..THAI202201

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-BZ040iW101..CVT..VN202201-202309

main73910-BZ040iW101..CVT..(GCC,PHL,THAI)202201

main73910-BZ040iW101..MXC202209

main73910-BZ070iW101..CVT..VN202309

8202

21791B2010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-B2010¥110

84139BZ020

main84139-BZ020

9004148007

main90041-48007¥170

9418560600

main94185-60600¥70

29 parts on this diagram · 24 diagrams in section
