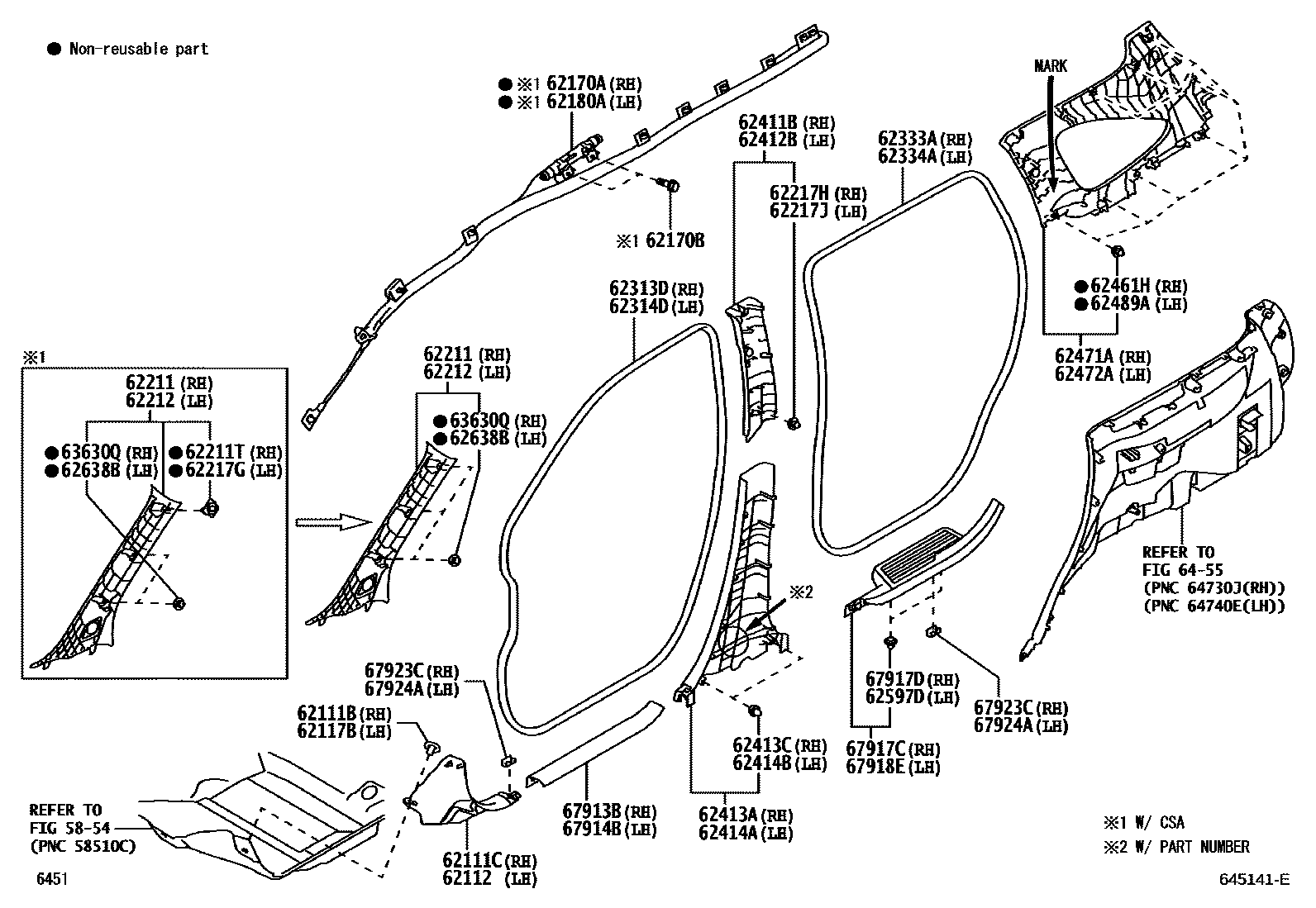

Toyota AVANZA/VELOZ — INSIDE TRIM BOARD

5854

62111BCLIP(FOR COWL SIDE TRIM)

main9004A-46131-C1iW100,101202111

BLACK,TRIM2#

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ330-C0iW100,101..RHD202111

BLACK,TRIM2#

main62111-BZ340-C0iW100,101..LHD202201

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ310-C0iW100,101..RHD202111

BLACK,TRIM2#

main62112-BZ320-C0iW100,101..LHD202201

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main9004A-46131-C1iW100,101202111

BLACK,TRIM2#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-BZ060iW101..CVT..(GCC,PHL,THAI,VN)202201

main62170-BZ060iW101..MXC202209

PERU + BOLIVIA

62170BBOLT, W/WASHER

main91673-80616iW101..CVT..(GCC,PHL,THAI,VN)¥60202201

M6,L=20

main91673-80616iW101..MXC¥60202209

M6,L=20

main91673-80616iW101..MXC¥60202209

PERU + BOLIVIA,M6,L=20

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-BZ050iW101..CVT..(GCC,PHL,THAI,VN)202201

main62180-BZ050iW101..MXC202209

PERU + BOLIVIA

62211GARNISH, FRONT PILLAR, RH

main62210-BZ090-B0iW101..MXC202111-202209

LT.GRAY,TRIM2#

main62210-BZ090-B0iW100;W101..GEN,IDN;W101..LHD..5F..M202111

LT.GRAY,TRIM2#

main62210-BZ100-B0iW101..CVT..(GCC,PHL,THAI,VN)202201

LT.GRAY,TRIM2#

main62210-BZ100-B0iW101..MXC202209

LT.GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-20010iW101..CVT..(GCC,PHL,THAI,VN)¥250202201

main62217-20010iW101..MXC¥250202209

62212GARNISH, FRONT PILLAR, LH

main62220-BZ090-B0iW101..MXC202111-202209

LT.GRAY,TRIM2#

main62220-BZ090-B0iW100;W101..GEN,IDN;W101..LHD..5F..M202111

LT.GRAY,TRIM2#

main62220-BZ100-B0iW101..CVT..(GCC,PHL,THAI,VN)202201

LT.GRAY,TRIM2#

main62220-BZ100-B0iW101..MXC202209

LT.GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-20010iW101..CVT..(GCC,PHL,THAI,VN)¥250202201

main62217-20010iW101..MXC¥250202209

62217HCLIP, CENTER PILLER GARNISH

main9004A-46338iW100,101202111

62217JCLIP, CENTER PILLER GARNISH

main9004A-46338iW100,101202111

62313DTRIM, FRONT DOOR OPENING, RH

main62313-BZ290-C0iW100,101202111

BLACK

62314DTRIM, FRONT DOOR OPENING, LH

main62313-BZ290-C0iW100,101202111

BLACK

62333ATRIM, REAR DOOR OPENING, RH

main62333-BZ310-C0iW100,101202111

BLACK

62334ATRIM, REAR DOOR OPENING, LH

main62333-BZ310-C0iW100,101202111

BLACK

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-BZ250-B0iW100,101202111

LT.GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-BZ250-B0iW100,101202111

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-BZ230-C0iW101..VN202111-202309

BLACK,TRIM2#

main62413-BZ230-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

BLACK,TRIM2#

main62413-BZ360-C0iW101..VN202309

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main9004A-46338iW100,101202111

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-BZ230-C0iW101..VN202111-202309

BLACK,TRIM2#

main62414-BZ230-C0iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

BLACK,TRIM2#

main62414-BZ360-C0iW101..VN202309

BLACK,TRIM2#

62414BCLIP (FOR CENTER LOWER GARNISH)

main9004A-46338iW100,101202111

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main9004A-46338iW100,101202111

62471AGARNISH, ROOF SIDE, INNER RH

main62471-BZ390-B0iW100..GEN,IDN;W101..5F..GEN202111

LT.GRAY,TRIM2#

main62471-BZ470-B0iW100..PHL;W101..LHD..5F..M;W101..CVT..G..GEN;W101..RHD..(GEN,IDN)202111

LT.GRAY,TRIM2#,MARK = GREEN

main62471-BZ470-B0iW101..MXC202111-202209

LT.GRAY,TRIM2#,MARK = GREEN

main62471-BZ480-B0iW101..CVT..(GCC,PHL,THAI,VN)202201

LT.GRAY,TRIM2#,MARK = YELLOW

main62471-BZ480-B0iW101..MXC202209

LT.GRAY,TRIM2#,MARK = YELLOW

62472AGARNISH, ROOF SIDE, INNER LH

main62472-BZ360-B0iW100..PHL;W101..LHD..5F..M;W101..CVT..G..GEN;W101..RHD..(GEN,IDN)202111

LT.GRAY,TRIM2#,MARK = BLUE

main62472-BZ360-B0iW101..MXC202111-202209

LT.GRAY,TRIM2#,MARK = BLUE

main62472-BZ360-B0iW100..GEN,IDN;W101..5F..GEN202111

LT.GRAY,TRIM2#

main62472-BZ470-B0iW101..CVT..(GCC,PHL,THAI,VN)202201

LT.GRAY,TRIM2#,MARK = GREEN

main62472-BZ470-B0iW101..MXC202209

LT.GRAY,TRIM2#,MARK = GREEN

62489ACLIP, ROOF SIDE INNER GARNISH

main9004A-46338iW100,101202111

62597DCLIP

main90467-T0019iW100,101202111

62638BCLIP

main9004A-46338iW101..MXC202111-202209

main9004A-46338iW101..CVT..(M,V)..IDN202111

REAR & REAR SIDE MONITOR(BSM + RCTA)

main9004A-46338iW101..CVT..(GCC,PHL,THAI,VN)202201

main9004A-46338iW101..MXC202209

PERU + BOLIVIA

63630QCLIP

main9004A-46338iW101..MXC202111-202209

main9004A-46338iW101..CVT..(M,V)..IDN202111

REAR & REAR SIDE MONITOR(BSM + RCTA)

main9004A-46338iW101..CVT..(GCC,PHL,THAI,VN)202201

main9004A-46338iW101..MXC202209

PERU + BOLIVIA

6455

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-BZ210-C0iW100,101202111

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-BZ210-C0iW100,101202111

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-BZ250-C0iW100,101202111

BLACK,TRIM2#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-T0019iW100,101202111

67918EPLATE, REAR DOOR SCUFF, LH

main67918-BZ250-C0iW100,101202111

BLACK,TRIM2#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67924-B2010iW100,101¥220202111

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-B2010iW100,101¥220202111

39 parts on this diagram · 1 diagram in section
