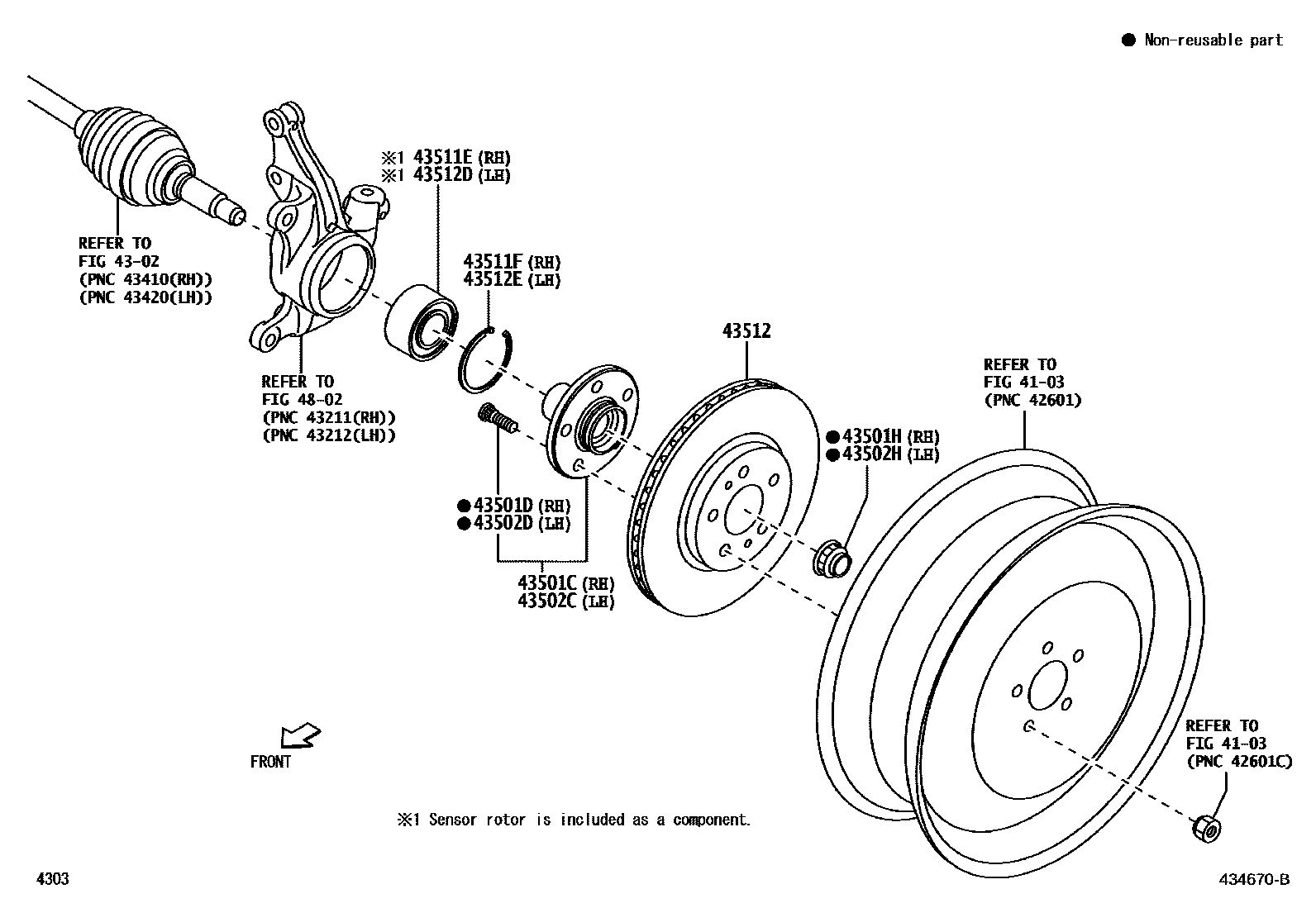

Toyota AVANZA/VELOZ — FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-BZ230iW100,101202111

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056iW100,101¥270202111

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iW100,101¥220202111

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-BZ230iW100,101202111

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056iW100,101¥270202111

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iW100,101¥220202111

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-BZ050iW100,101¥4,130202111

W/SENSOR ROTOR

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iW100,101¥310202111

43512DISC, FRONT

main43512-BZ420iW100,101..IDN202111

main43512-BZ430iW100,101..GCC,GEN,MXC,PHL,THAI,VN202201

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-BZ050iW100,101¥4,130202111

W/SENSOR ROTOR

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iW100,101¥310202111

4802

14 parts on this diagram · 1 diagram in section
