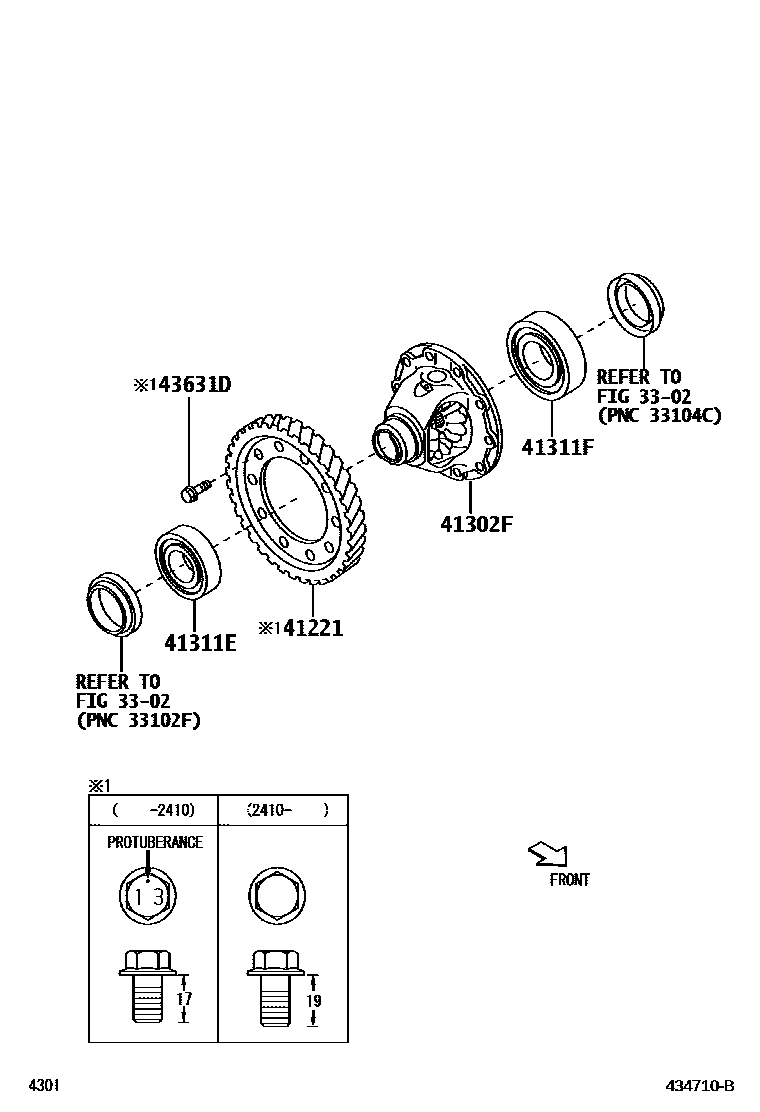

Toyota AVANZA/VELOZ — FRONT AXLE HOUSING & DIFFERENTIAL

3302

41221GEAR, FRONT DIFFERENTIAL RING

main41221-BZ320iW101..5F..MXC202201-202410

sub41221-BZ321

main41221-BZ321iW101..5F..MXC202410

main41221-BZ330iW100..5F202111-202410

sub41221-BZ331

main41221-BZ331iW100..5F202410

main41221-BZ340iW101..5F..(GEN,IDN,PHL,VN)202111-202410

sub41221-BZ341

main41221-BZ341iW101..5F..(GEN,IDN,VN)202410

41302FCASE SUB-ASSY, FRONT DIFFERENTIAL

main41301-BZ060iW100..5F202111

main41301-BZ070iW101..5F..PHL202111-202309

main41301-BZ070iW101..5F..(GEN,IDN,MXC,VN)202111

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main9004A-36123iW100,101..5F202111

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main9004A-36124iW100,101..5F202111

43631DBOLT, HEXAGON (FOR DIFFERENTIAL CASE)

main9004A-10120iW100,101..5F202111-202410

main9004A-10296iW100,101..5F202410

6 parts on this diagram · 1 diagram in section
