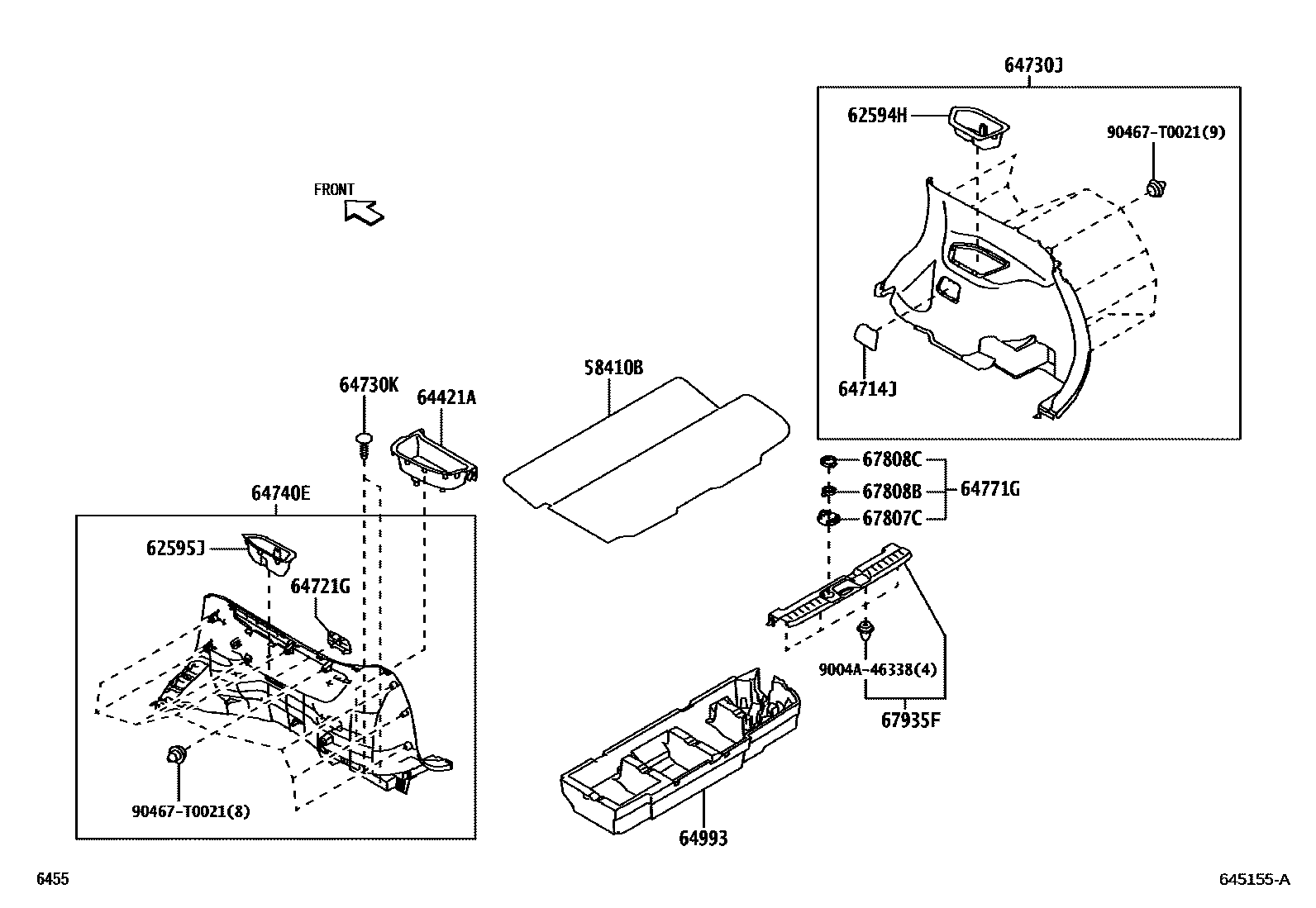

Toyota AVANZA/VELOZ — DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-BZ340-C0iW100,101202111

BLACK,TRIM2#

62594HPOCKET, QUARTER TRIM, RH

main62594-BZ080-C0iW100,101202111

BLACK,TRIM2#

62595JPOCKET, QUARTER TRIM, LH

main62595-BZ070-C0iW100,101202111

BLACK,TRIM2#

64421ATRAY, LUGGAGE COMPARTMENT

main64421-BZ030-C0iW100,101202111

BLACK,TRIM2#

64714JCOVER, DECK SIDE TRIM, RH

main62521-BZ030-C0iW100,101202111

BLACK,TRIM2#

64721GCOVER, DECK TRIM, NO.1

main62522-BZ010-C0iW100,101202111

BLACK,TRIM2#

64730JPANEL ASSY, DECK TRIM SIDE, RH

main64730-BZ380-C0iW100,101202111

BLACK,TRIM2#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90044-68046-C2iW100,101202111

BLACK,TRIM2#

sub90044-68046¥200

64740EPANEL ASSY, DECK TRIM SIDE, LH

main64740-BZ370-C0iW100..LHD..D202201

BLACK,TRIM2#

main64740-BZ370-C0iW100..LHD..D202201

PERU + BOLIVIA,BLACK,TRIM2#

main64740-BZ380-C0iW100..IDN;W100,101..G,M,S,V202111

BLACK,TRIM2#

64771GCOVER, SPARE WHEEL

main58285-BZ010-C0iW100,101202111

BLACK,TRIM2#

64993BOX, DECK FLOOR, REAR

main64993-BZ010iW100,101202111

67807CCOVER SUB-ASSY, BACK DOOR SERVICE HOLE, NO.1

main67807-BZ010-C0iW100,101202111

BLACK,TRIM2#

67808BCOVER SUB-ASSY, BACK DOOR SERVICE HOLE, NO.2

main67808-BZ010-C0iW100,101202111

BLACK,TRIM2#

67808CCOVER SUB-ASSY, BACK DOOR SERVICE HOLE, NO.3

main67808-BZ020-C0iW100,101202111

BLACK,TRIM2#

67935FPLATE, BACK DOOR SCUFF

main67935-BZ120-C0iW100,101202111

BLACK,TRIM2#

9004A46338

main9004A-46338

90467T0021

main90467-T0021

17 parts on this diagram · 1 diagram in section
