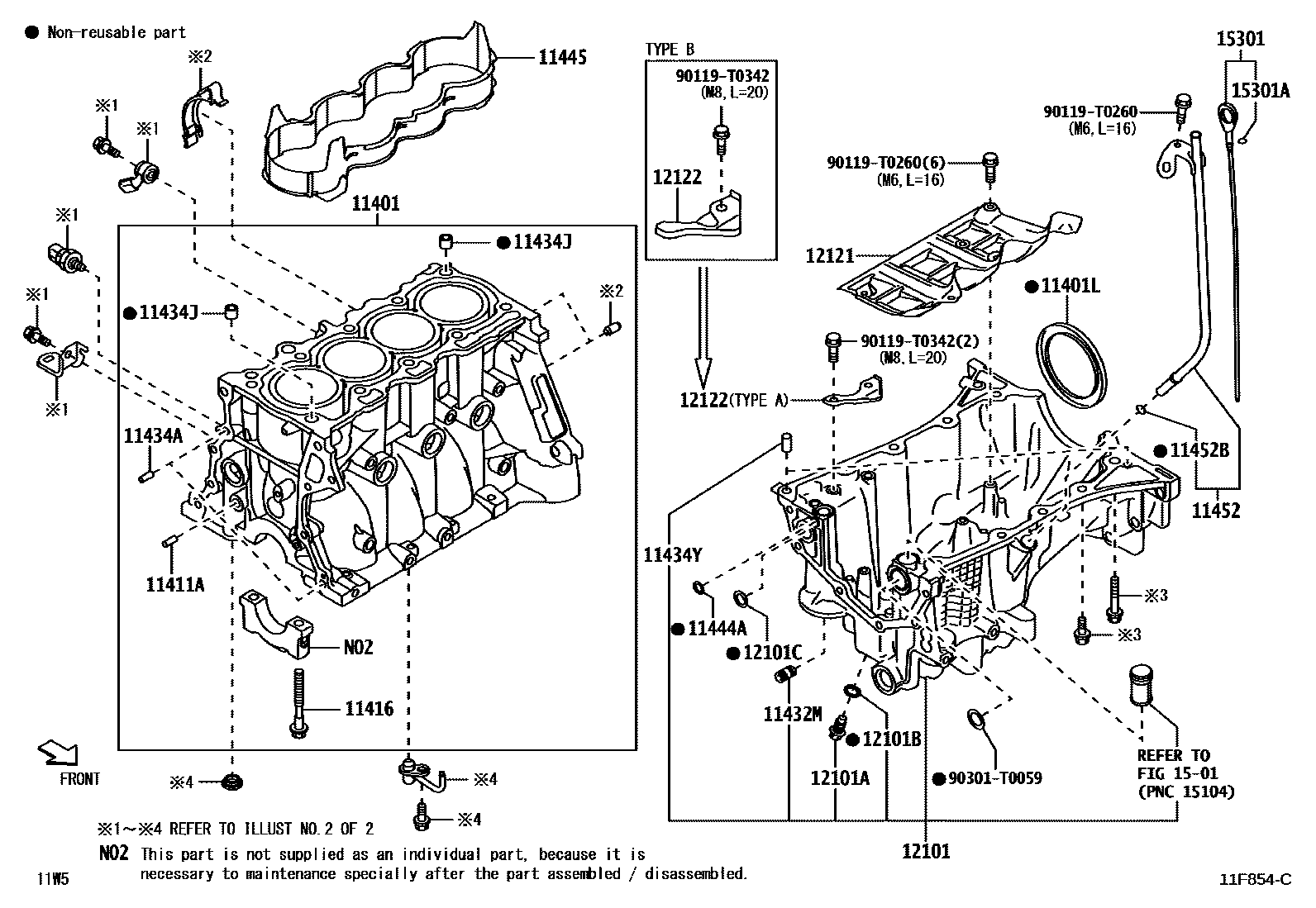

Toyota AVANZA/VELOZ — CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11410-B9015i1NRVE..W100..GEN202201

main11410-B9015i1NRVE..W100..IDN,PHL202111

W100

main11410-B9025i2NRVE..W101..5F..PHL;2NRVE..W101..GCC,GEN,MXC,THAI,VN202201

main11410-B9025i2NRVE..W101..IDN;2NRVE..W101..CVT..PHL202111

W101

main11410-B9045i1NRVE..W100..IDN202111

main11410-B9055i2NRVE..W101..M..IDN202111

11401LSEAL, ENGINE REAR OIL

main90311-T0074i1NRVE,2NRVE..W100,101¥1,390202111

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main90250-10030i2NRVE..W101..(S,V)..IDN¥160202111

SAME 90250-T0019

main90250-T0019i2NRVE..W101..5F..PHL;1NRVE,2NRVE..W100,101..GCC,GEN,MXC,THAI,VN202201

main90250-T0019i2NRVE..W101..IDN;1NRVE..W100..IDN,PHL;2NRVE..W101..CVT..PHL202111

SAME 90250-10030

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-T2013i1NRVE,2NRVE..W100,101202111

11432MUNION(FOR CYLINDER BLOCK)

main90404-T0005i1NRVE,2NRVE..W100,101202111

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i1NRVE,2NRVE..W100,101¥50202111

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i1NRVE,2NRVE..W100,101¥140202111

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i1NRVE,2NRVE..W100,101¥140202111

11444ARING, O

main9004A-30060i1NRVE,2NRVE..W100,101..(D,M)..IDN¥240202111

SAME 90301-T0055

main90301-T0055i2NRVE..W101..IDN;1NRVE..W100..IDN,PHL;2NRVE..W101..CVT..PHL202111

SAME 9004A-30060

main90301-T0055i2NRVE..W101..5F..PHL;1NRVE,2NRVE..W100,101..GCC,GEN,MXC,THAI,VN202201

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y020i1NRVE,2NRVE..W100,101202111

11452GUIDE, OIL LEVEL GAGE

main11409-BZ150i1NRVE,2NRVE..W100,101202111

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main9004A-30058i1NRVE,2NRVE..W100,101202111

12101PAN SUB-ASSY, OIL

main12101-BZ140i1NRVE,2NRVE..W100,101202111

12101APLUG(FOR OIL PAN DRAIN)

main9004A-34015i1NRVE,2NRVE..W100,101¥190202111

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main9004A-43022i1NRVE,2NRVE..W100,101¥80202111

12101CRING, O(FOR OIL PAN)

main9004A-30061i2NRVE..W101..(S,V)..IDN¥240202111

SAME 90301-T0057

main90301-T0057i2NRVE..W101..5F..PHL;1NRVE,2NRVE..W100,101..GCC,GEN,MXC,THAI,VN202201

main90301-T0057i2NRVE..W101..IDN;1NRVE..W100..IDN,PHL;2NRVE..W101..CVT..PHL202111

SAME 9004A-30061

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Y030i1NRVE,2NRVE..W100,101202111

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-0Y010i1NRVE..W100..GEN;2NRVE..W101..CVT..(IDN,PHL)202111-202302

TYPE A

main12122-0Y011i1NRVE..W100..GEN;2NRVE..W101..CVT..(IDN,PHL)202302

TYPE B

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-BZ150i1NRVE,2NRVE..W100,101202111

15301ARING, O(FOR OIL LEVEL GAGE)

main9004A-30048i1NRVE,2NRVE..W100,101¥130202111

90119T0260

main90119-T0260

90119T0342

main90119-T0342

90301T0059

main90301-T0059

24 parts on this diagram · 2 diagrams in section
