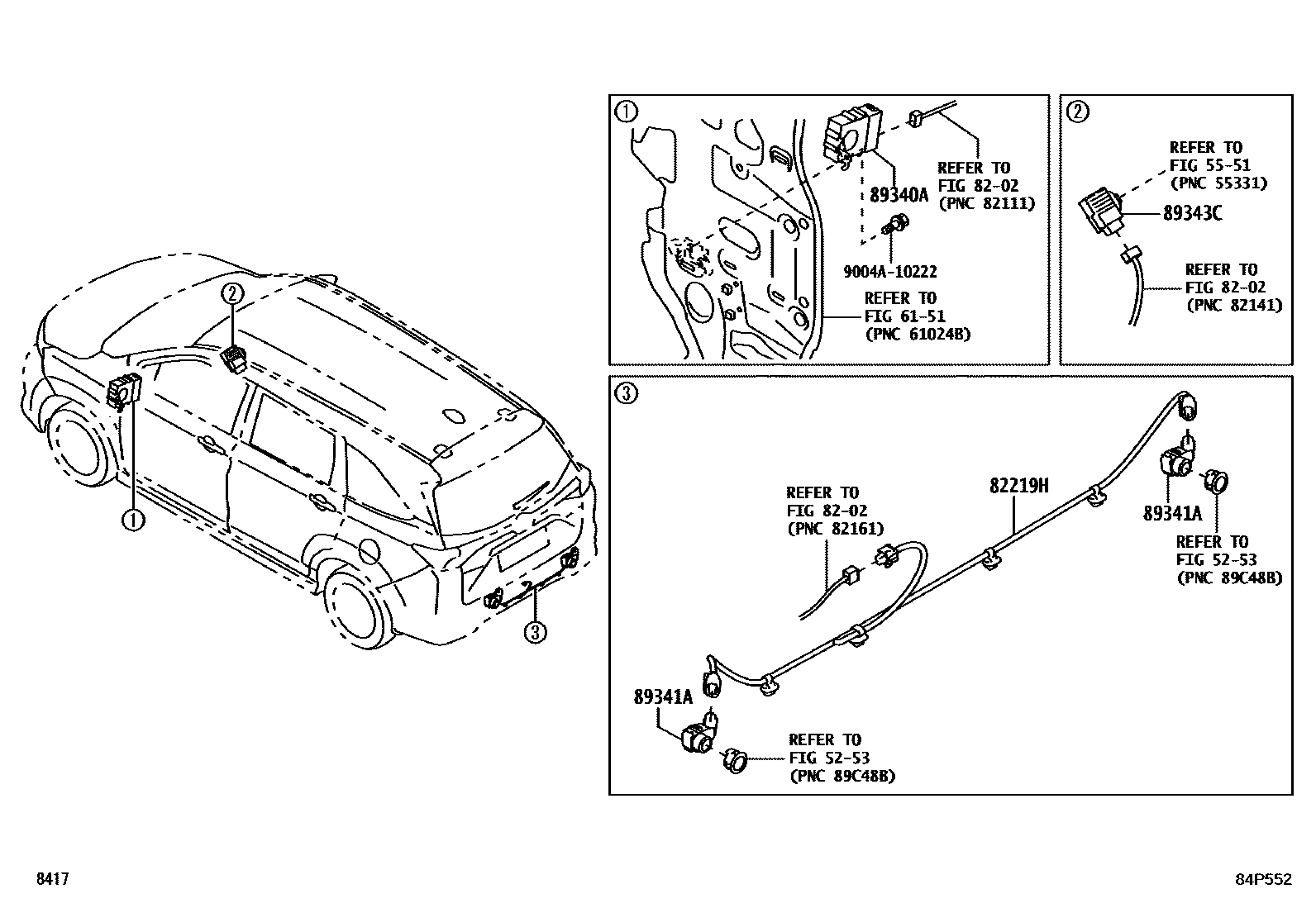

Toyota AVANZA/VELOZ — CLEARANCE & BACK SONAR

0001 1 0003 1

5253

5551

6151

8202

82219HWIRE, SENSOR

main82219-BZ070iW101..GCC202212

main82219-BZ260iW100,101..(M,S,V)..(IDN,PHL,THAI,VN)202111

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-BZ320iW100,101..(M,S,V)..(GCC,IDN,PHL,THAI,VN)202111

89341ASENSOR, ULTRASONIC, NO.1

main89341-BZ350-A0iW100,101..M..(IDN,PHL,VN)202111

WHITE,W09

main89341-BZ350-A2iW101..S,V202111

PLATINUM WHITE PEARL MC.,089

main89341-BZ350-B0iW100,101..(M,S,V)..(GCC,IDN,PHL,THAI,VN)202111

SILVER ME.,S28

main89341-BZ350-B1iW100,101..(M,S,V)..(GCC,IDN,PHL,THAI)202111

GRAY ME.,1G3

main89341-BZ350-C1iW100,101..(M,S,V)..(GCC,IDN,PHL,THAI,VN)202111

BLACK ME.,X12

main89341-BZ350-D2iW101..(S,V)..VN;W100,101..(M,S,V)..(GCC,IDN,PHL,THAI)202111

DK. RED M.M.,3Q3

main89341-BZ350-G0iW100,101..M..(IDN,PHL)202111

GREENISH GUN METAL M.M,G64

main89341-BZ350-K0iW100,101..(M,S,V)..(GCC,IDN,PHL,THAI,VN)202111

PURPLISH SILVER M.M,P20

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iW100,101..(M,S,V)..(GCC,IDN,PHL,THAI,VN)¥1,850202111

9004A10222

main9004A-10222

9 parts on this diagram · 2 diagrams in section
