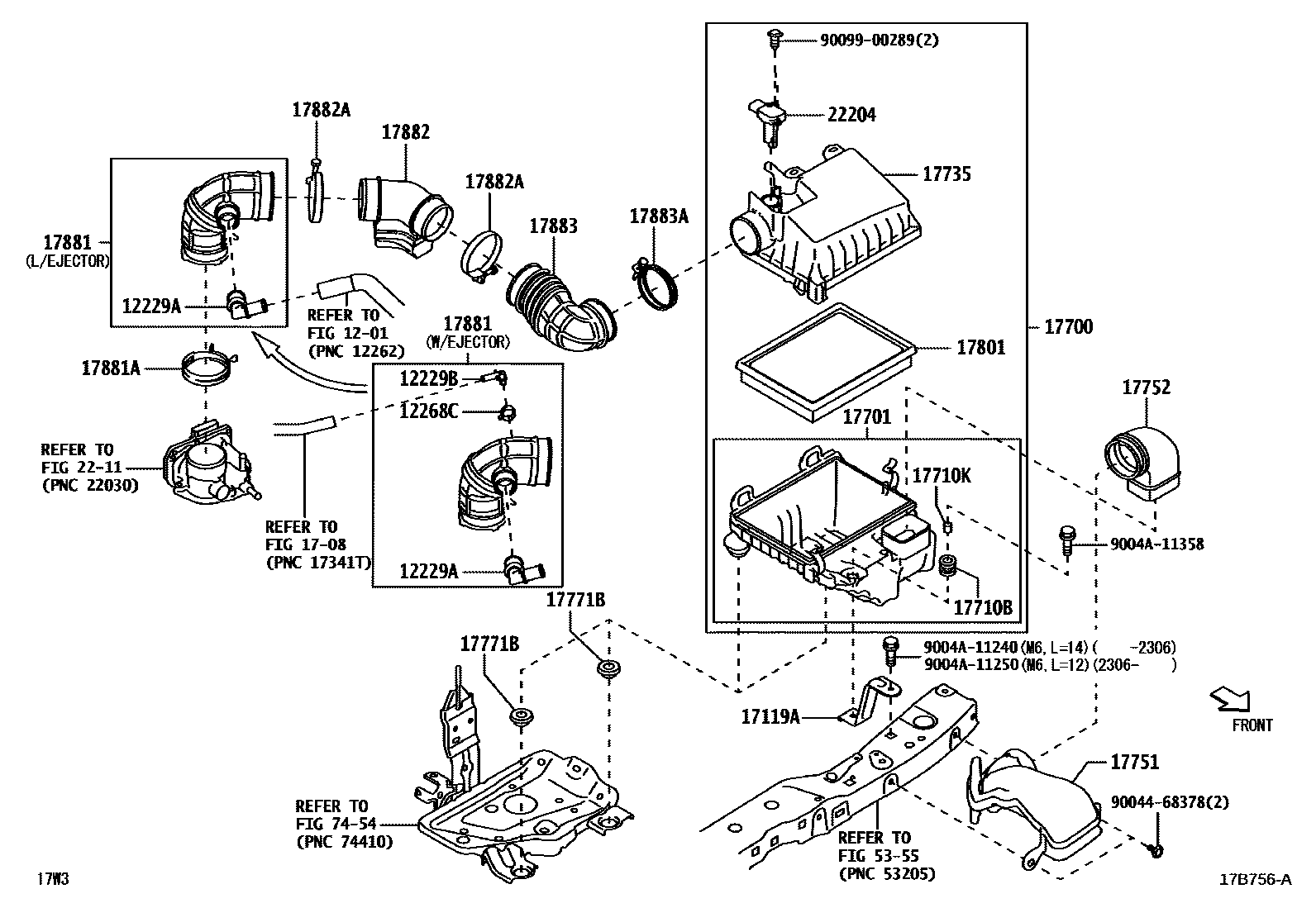

Toyota AVANZA/VELOZ — AIR CLEANER

1201

12229APIPE, VENTILATION

main12229-BZ020i2NRVE..W101..5F..PHL202111-202309

12229BPIPE, VENTILATION, NO.1

main12229-0Y110i2NRVE..W101..MXC202201

12268CCLIP, HOSE

main96136-41901i2NRVE..W101..MXC¥120202201

1708

17119ABRACKET, AIR CLEANER

main17771-BZ150i1NRVE,2NRVE..W10#202111-202305

sub17771-BZ151

main17771-BZ151i1NRVE,2NRVE..W100,101202306

17700CLEANER ASSY, AIR

main17700-BZ270i1NRVE,2NRVE..W100,101202111

17701CASE SUB-ASSY, AIR CLEANER

main17701-BZ210i1NRVE,2NRVE..W100,101202111

17710BGROMMET

main90044-80392i1NRVE,2NRVE..W100,101¥0202111

17710KCOLLAR(FOR AIR CLEANER)

main90042-09117i1NRVE,2NRVE..W100,101202111

17735CAP, AIR CLEANER

main17735-BZ040i1NRVE,2NRVE..W100,101202111

17751INLET, AIR CLEANER, NO.1

main17751-BZ160i1NRVE,2NRVE..W100,101202111

17752INLET, AIR CLEANER, NO.2

main17752-BZ100i1NRVE,2NRVE..W100,101202111

17771BGROMMET(FOR AIR CLEANER BRACKET)

main9004A-48056i1NRVE,2NRVE..W100,101202111

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-BZ110i1NRVE,2NRVE..W100,101202111

17881HOSE, AIR CLEANER, NO.1

main17881-BZ270i1NRVE,2NRVE..W100,101..GCC,GEN,IDN,PHL,THAI,VN202111

main17881-BZ280i2NRVE..W101..MXC202201

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90466-62002i1NRVE,2NRVE..W100,101¥320202111

17882HOSE, AIR CLEANER, NO.2

main17882-BZ100i1NRVE,2NRVE..W100,101202111

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main9004A-46128i1NRVE,2NRVE..W100,101202409

main96111-10710i1NRVE,2NRVE..W10#¥160202111-202408

17883HOSE, AIR CLEANER, NO.3

main17883-BZ040i1NRVE,2NRVE..W100,101202111

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-T0017i1NRVE,2NRVE..W100,101..GEN,IDN,MXC,PHL,THAI202111

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-BZ010i1NRVE,2NRVE..W100,101¥12,400202111

5355

7454

9004468378

main90044-68378¥110

9004A11240

main9004A-11240

9004A11250

main9004A-11250

9004A11358

main9004A-11358

9009900289

main90099-00289¥60

30 parts on this diagram · 1 diagram in section
