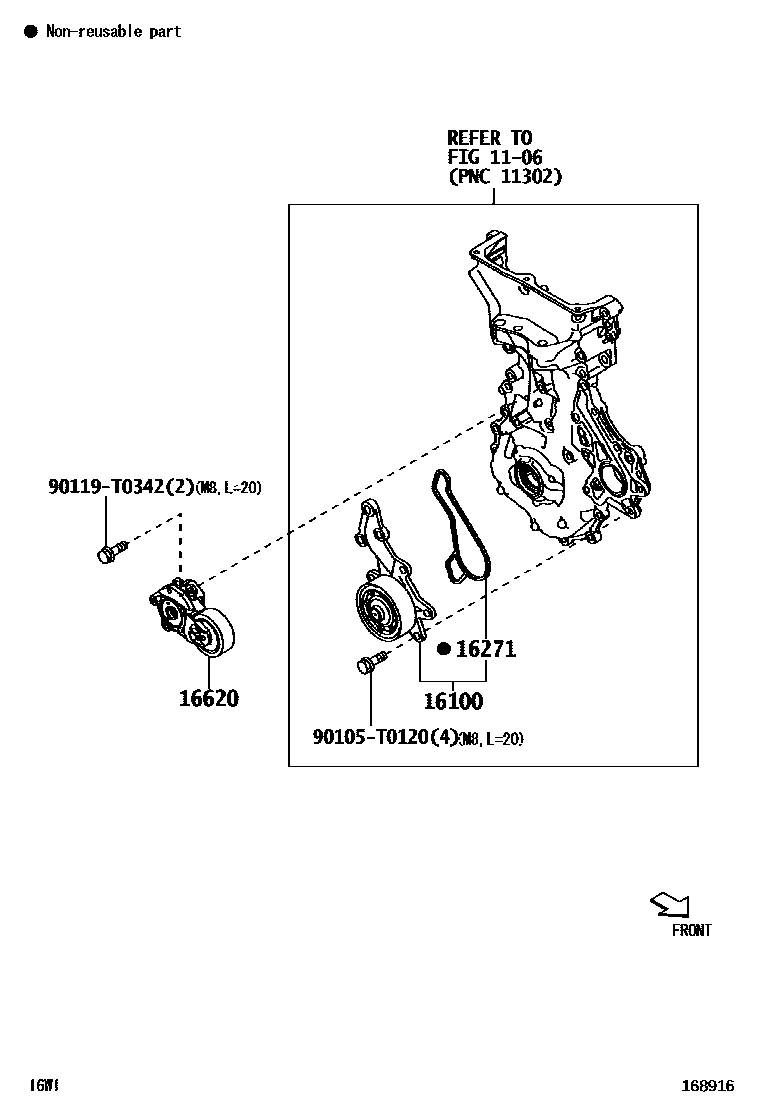

Toyota AVANZA/VELOZ — WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-B9490i1NRVE,2NRVE..W100,101¥8,000202111

16271GASKET, WATER PUMP

main16271-0Y030i1NRVE,2NRVE..W100,101¥650202111

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y061i1NRVE,2NRVE..W100,101202111

90105T0120

main90105-T0120

90119T0342

main90119-T0342

6 parts on this diagram · 1 diagram in section
