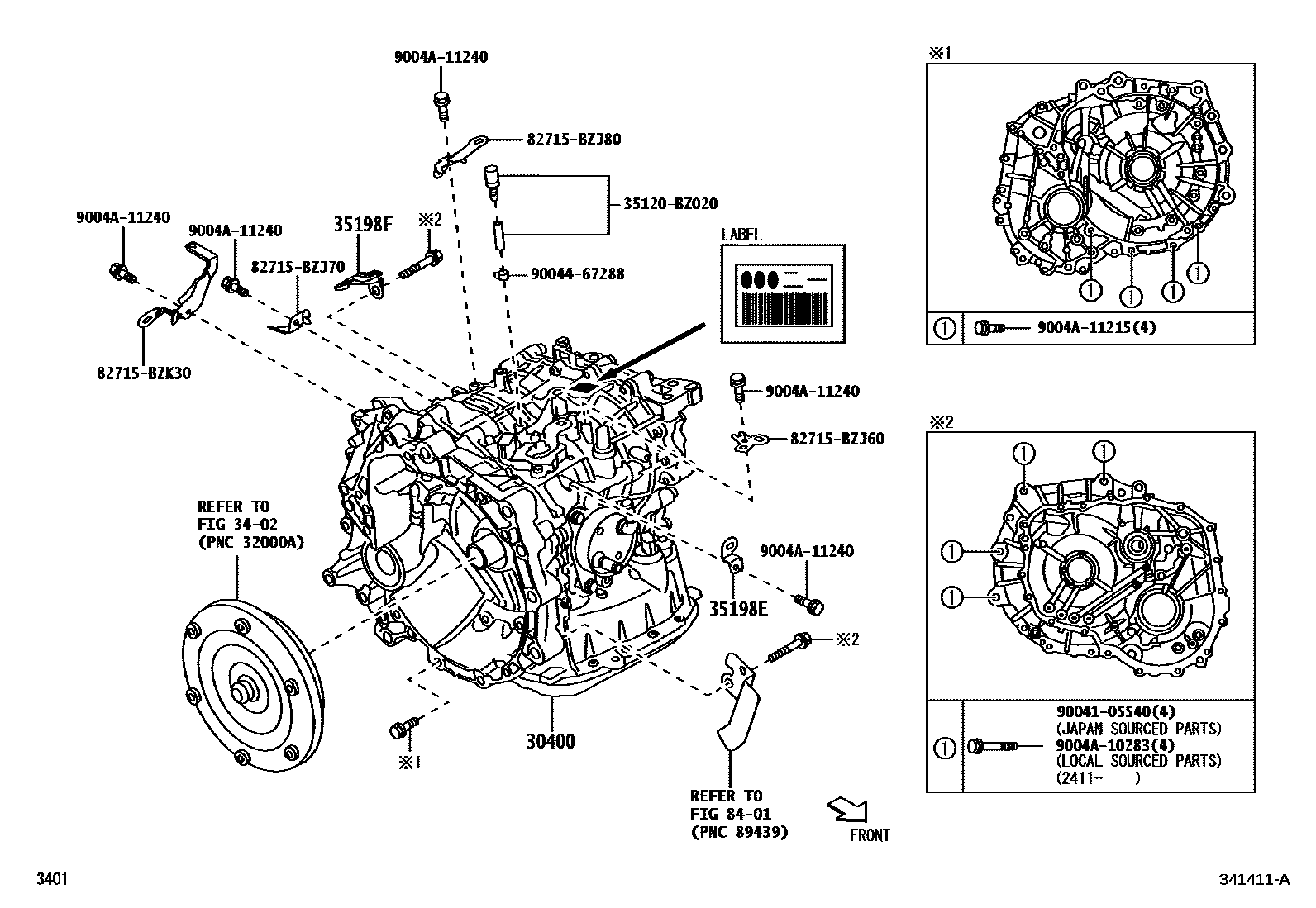

Toyota AVANZA/VELOZ — TRANSAXLE ASSY(CVT)

0001 1TRANSAXLE ASSY 0002 1INNER PARTS 0003 1INNER PARTS 0004 1VALVE BODY ASSY 0005 1VALVE BODY ASSY

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2A60iW100..CVT¥228,000202111

UNIT.NO=A21K,A22K

main30400-B2C20iW101..CVT¥228,000202111

UNIT.NO=A2NK

main30400-BZ060iW100..CVT202303

UNIT.NO=C45

main30400-BZ080iW101..CVT..(GCC,GEN,IDN,MXC,PHL,THAI)202211

UNIT.NO=C62

main30400-BZ110iW100..CVT202211-202302

UNIT.NO=C23

sub30400-BZ060

3402

35198EBRACKET, WIRE HARNESS CLAMP, NO.1

main82715-BZJ90iW100,101..CVT202111

35198FBRACKET, WIRE HARNESS CLAMP

main82715-B2510iW100,101..CVT¥600202111

8401

35120BZ020BREATHER ASSY, TRANSMISSION

main35120-BZ020

82715BZJ60BRACKET,WIRING HARNESS CLAMP

main82715-BZJ60

82715BZJ70BRACKET,WIRING HARNESS CLAMP

main82715-BZJ70

82715BZJ80BRACKET,WIRING HARNESS CLAMP

main82715-BZJ80

82715BZK30BRACKET,WIRING HARNESS CLAMP

main82715-BZK30

9004105540

main90041-05540¥290

9004467288

main90044-67288¥120

9004A10283

main9004A-10283

9004A11215

main9004A-11215¥100

9004A11240

main9004A-11240

15 parts on this diagram · 5 diagrams in section
