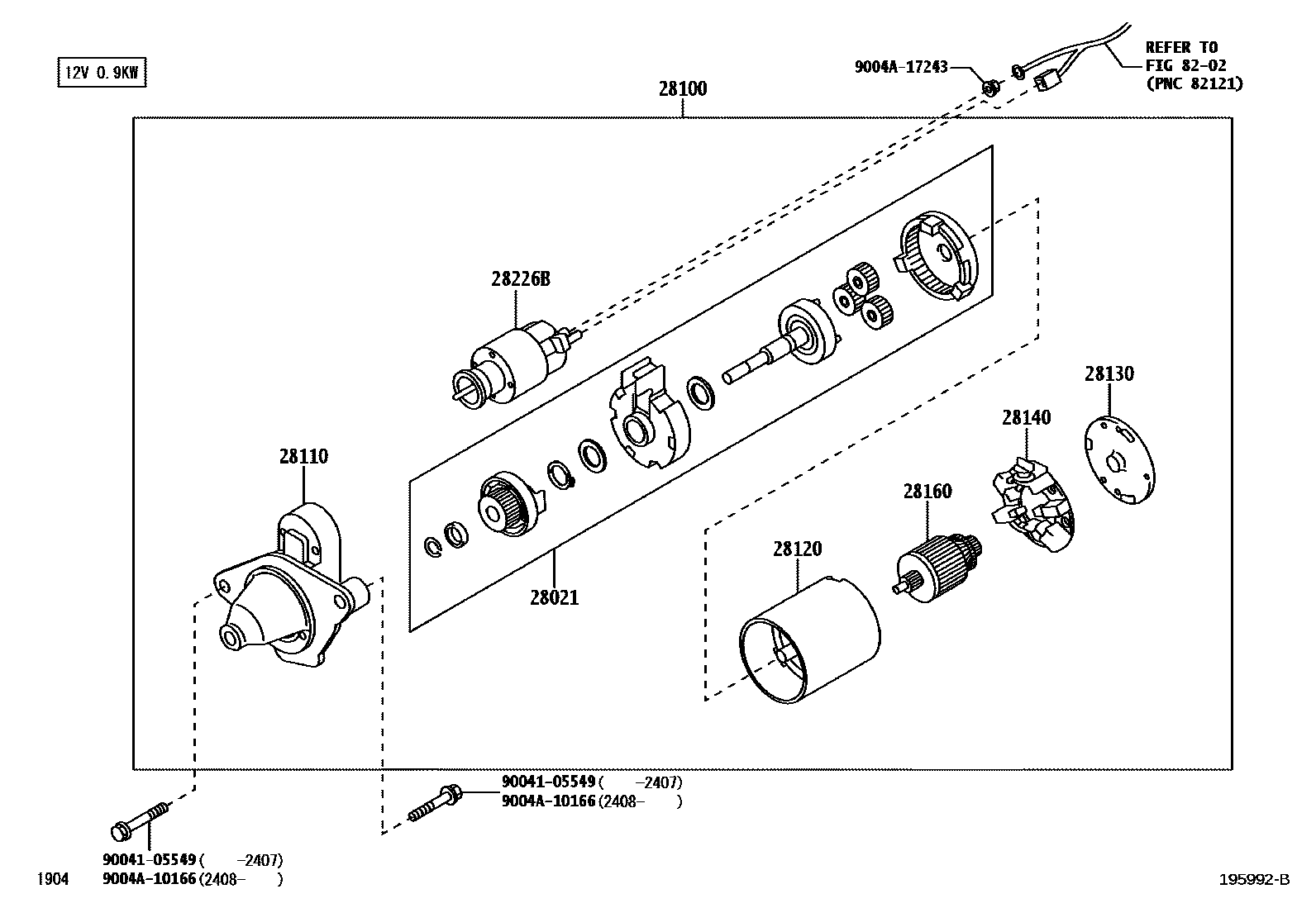

Toyota AVANZA/VELOZ — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-BZ050i2NRVE..W101..5F..PHL202111-202309

main28021-BZ050i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN202111

28100STARTER ASSY

main28100-BZ310i2NRVE..W101..5F..PHL202111-202309

12V 0.9KW

main28100-BZ310i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN202111

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-BZ180i2NRVE..W101..5F..PHL202111-202309

main28110-BZ180i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN202111

28120YOKE ASSY, STARTER

main28120-BZ090i2NRVE..W101..5F..PHL202111-202309

main28120-BZ090i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN202111

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140i2NRVE..W101..5F..PHL¥1,280202111-202309

main28130-BZ140i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN¥1,280202111

28140HOLDER ASSY, STARTER BRUSH

main28140-BZ140i2NRVE..W101..5F..PHL202111-202309

main28140-BZ140i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN202111

28160ARMATURE ASSY, STARTER

main28160-BZ040i2NRVE..W101..5F..PHL¥12,400202111-202309

main28160-BZ040i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN¥12,400202111

28226BSTARTER KIT, REPAIR SERVICE

main28226-BZ010i2NRVE..W101..5F..PHL¥7,500202111-202309

main28226-BZ010i1NRVE..W100;2NRVE..W101..CVT..PHL;2NRVE..W101..GCC,GEN,IDN,MXC,THAI,VN¥7,500202111

8202

9004105549

main90041-05549¥320

9004A10166

main9004A-10166

9004A17243

main9004A-17243

12 parts on this diagram · 1 diagram in section
