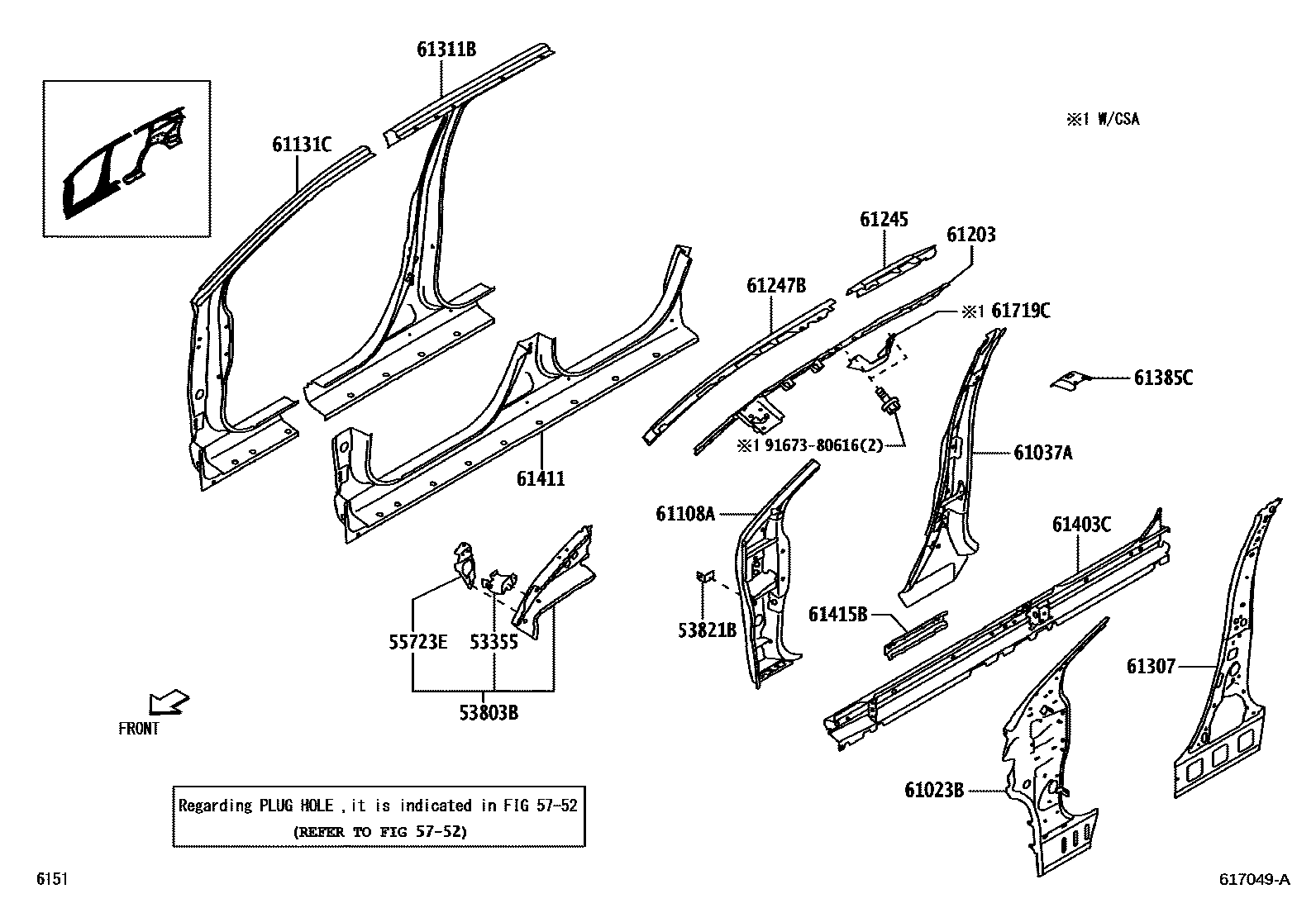

Toyota AVANZA/VELOZ — SIDE MEMBER

0001 1FRONT,RH 0002 1FRONT,RH 0003 1REAR,RH 0004 1FRONT,LH 0005 1FRONT,LH 0006 1REAR,LH 0007 1REAR,LH 0008 1CUT DIMENSIONS

53355GUSSET, HOOD REINFORCEMENT, RH

main53415-BZ060iW100,101202111

53803BBRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-BZ130iW100;W101..CVT..PHL;W101..GCC,GEN,IDN,MXC,THAI,VN202111-202408

main53803-BZ130iW101..5F..PHL202111

main53803-BZ130iW101..VN202409

main53803-BZ190iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202409

53821BBRACKET, FRONT FENDER, REAR RH

main58139-BZ070iW100,101202111

55723EGUSSET, FRONT PANEL, RH

main53717-BZ200iW100,101202111

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ420iW100,101..RHD202111

main61023-BZ430iW100,101..LHD202201

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ390iW100,101202111

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-BZ240iW100,101202111

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ530iW100,101..D,G,M202111

main61131-BZ540iW101..S,V202111

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-BZ130iW100,101202111

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-BZ060iW100,101202111

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-BZ140iW100,101202111

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-BZ130iW100,101202111

61311BPILLAR, CENTER BODY, OUTER RH

main61311-BZ350iW100,101..D,G,M202111

main61311-BZ360iW101..S,V202111

61385CEXTENSION, CENTER BODY PILLAR, UPPER RH

main61385-BZ060iW100,101202111

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-BZ160iW100,101202111

61411PANEL, ROCKER, OUTER RH

main61411-BZ380iW100,101..D,G,M202111

main61411-BZ390iW101..S,V202111

61415BEXTENSION, ROCKER, OUTER RH

main61415-BZ040iW101..CVT..(GCC,PHL,THAI,VN)202201

main61415-BZ040iW101..MXC202208

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-BZ070iW101..CVT..(GCC,PHL,THAI,VN)202201

main61719-BZ070iW101..MXC202209

PERU + BOLIVIA

9167380616

main91673-80616¥60

20 parts on this diagram · 8 diagrams in section
